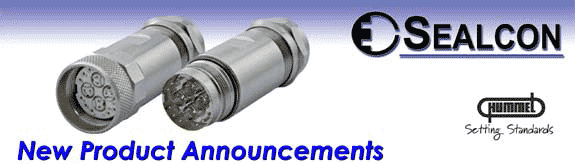

Sealcon is now offering Hummel's M23 based Profinet Circular high speed Industrial Ethernet Connector, combining Ethernet, other data, or power lines in one single interconnect package. The Hybrid Connector can carry up to 5 individual EMI shielded circuits, guaranteeing safe data transmission up to Gigabit range without interference. Connecting components are HF-technically matched to a resistance of 100 Ohm (at 100 Megabit) eliminating cross-talking. Standard RJ45 lines are wearing out and becoming unreliable, especially at higher transmission speeds.
Features and Benefits:
• Robust:RoHS compliant IP67 Brass Alloy Cast Connector
• Flame Resistant:Twinax-Inserts are V0 rated according to UL-94
• Crimp Contacts:More reliable in dynamic applications
• Vibration Safe:With Hummel's SLS contact technology
• High Transmission Speed:Up to Gigabyte
• Compact:Several circuits in one, ideal as one cable solution
• Space & Money Savings:Instead of running several cables with large square connectors through
tight holes
• Options:Straight, elbow and panel mounts (front and rear), Crimp and PCB mount connectors, I/O
Modules, Adapter, Flange, Conduit Adapter, etc.
• 4 shielded Twinax-inserts for data transfers, 12 additional contacts for transmission of signal &
power achieve maximum power density / effectiveness within the M23 housing (Signal 4x2 ea 0.6
mm contacts) 0.08-0.34 sq. mm – 28-22 AWG (CAT6 - .25 sq. mm) and 12x1 (0.25-1.5 sq. mm)
Markets: • Robotics, Automation, Railways, Digital Image / Image Processing & Communication
• For fast & secure data transmission under vibration, mechanical load / stress and in harsh
environments
Considerations: • When looking for someone to build high speed Industrial Ethernet solutions, use experienced
cable assembly houses that are comfortable working with small gauge wire in servo applications.
• Distance from a Robot to a Controller not to exceed 80 meters (260 ft.).
Profinet Connector Technical Information
• Number of Contacts:4x2, 12
• Cable Diameter Range:.43" - .67" (11 - 17 mm)
• Temperature Range:-40° F to 257° F (-40° C to 125° C)
