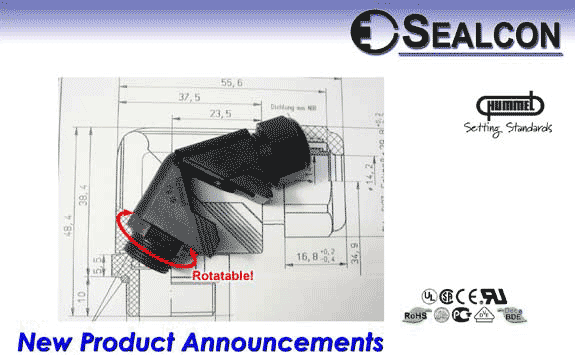

Sealcon is now offering Hummel's new IP68 / NEMA 6 Nylon Swivel Elbow Strain Relief in PG 11, 13, 16 and 21 which may be handy in space restricted applications and where a connection (device) may be relocated at times.
The Elbow is installed and locked in place like any other Strain Relief in either a threaded or
knock-out installation. The Elbow is not spinning but the built-in swivel allows the Elbow to be rotated 360 degrees into any desired position. The resistance in the swivel is strong enough to support the weight of a cable.
Nylon Swivel Elbow Strain Relief Technical Information
• Pressure Rating: 150 PSIG (10 BAR) NEMA 4x, 6 (Submersible) & 12 - IP 68 / IP 69 K
• Fittings: Nylon 6/6, V0: Flame Resistant, Halogen- and Phosphorus-Free, Self Extinguishing,
Non-Toxic
• O-Ring & Seal Ring: Buna-N / Polyethylene (Viton® Optional)
Contact Sealcon for further information or visit our website.
