Conduit System - Turn-to-Seal Fittings - 1/2" NPT Thread



Turn-to-Seal Fitting Turn-to-Seal Elbow Fitting
Part Number

Hummel Reference
ST16NA-BK
Add to Quote
Quantity


1.220.1221.12
ET16NA-BK
Add to Quote
Quantity


1.223.1221.72
Thread Type & Size 1/2" NPT 1/2" NPT
Fits Nominal Conduit Size 17 17

Thread Length (A/F) .51" (13 mm) .39" (10 mm)
Body Length (B/G) 1.02" (26 mm) 2.20" (56 mm)
Elbow - Body Height (H) N/A 1.26" (32 mm)
Wrench Flat - Body (C) 1.06" (27 mm) N/A
Wrench Flat - Dome (D/I) 1.18" (30 mm) 1.18" (30 mm)
Inside Diameter (E/J) .55" (14 mm) .63" (16 mm)

  Technical Drawing Technical Drawing
PDF Download PDF Download

Corrugated Conduit

  Corrugated Conduit
Part Number

Hummel SM-WS-PA Reference
SM-1721-BK
Add to Quote
1.510.1601.14
Quantity

SM-1721-HY
Add to Quote
Quantity


1.524.2001.50
Type Standard
(Modified Polyamide PA 6)
Super Flex
(Thermoplastic Elastomer)

Nominal Conduit Size 17 17
Roll Length 164 feet 164 feet
Inner Diameter (A) .65" (16.5 mm) .65" (16.5 mm)
Outer Diameter (B) .83" (21 mm) .83" (21 mm)

Corrugated Conduit This Standard Corrugated Conduit is made of flame retardant Nylon. This Conduit is suitable for static and moderate dynamic installations. This Super Flex Conduit is made of a special plastic blend. Due to its higher flexibility, it is an ideal solution for drag chain and robotics applications.
PDF Download PDF Download
Features:
ST & ET Fittings are V0 Rated & have IP 65 protection without additional parts (O-Ring or Seal Ring).

ST - Straight:
  • Reliable assembly as Fitting is supplied pre-assembled, no additional parts required
  • Integrated clamping ring ensures high tear-out strength
  • High protection (IP 65 / NEMA 4) without additional parts
  • Can be opened without tools

ET - Elbow:
  • Reliable assembly as Fitting is supplied pre-assembled, no additional parts required
  • Integrated clamping ring ensures high tear-out strength
  • High protection (IP 65 / NEMA 4) without additional parts
  • Can be opened without tools
  • Smooth inside walls, therefore easy insertion of cables into the 90° angle
Pressure Rating:
Approvals:
UR

RoHS & Deca BDE
IP 65 (NEMA 4)

Materials:
Fittings: Black Nylon

Operating Temperature:
- 40°C to 110°C (- 40°F to 230°F)
*V0 Rated

Applications

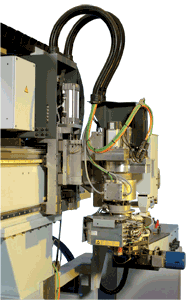

Machine Robot
