Liquid Tight Strain Relief Fittings / Cord Grips / Cable Glands
Liquid Tight Strain Relief Fittings / Cord Grips / Cable Glands

Installs in Either Clearance or Threaded Holes
UL* CSA CE RoHS & Deca BDE Compliant
UR German Lloyd PCT
* Sizes 3/8"NPT, M12, M16, PG7, PG9, and PG11 have UR (ONLY)

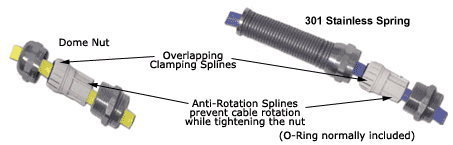

Liquid Tight Straight Strain Relief Fittings - Nickel Plated Brass O-Ring

Dome Fittings also available in ATEX & EEx e versions

Wherever a metal strain relief fitting is used, this strain relief fitting will give you a greatly increased cable range with superior corrosion protection. Typical applications are: Control cabinets, marine, car washes, -hot tubs, instrumentation, carpet cleaning machines, food processing equipment, underground for direct burial or submersed up to 300 ft. (150 PSIG).

PART NUMBERS

CABLE RANGE

THREAD
RANGE

PRODUCT
INFO
Dome Fittings
Nickel Plated Brass Dome Fitting
Brass
Flex Fittings
Nickel Plated Brass Flex Fitting
Brass
Inches (mm)
CD07AA-BR CF07AA-BR .12 - .26 (3-6.5) PG 7 / 1/4" NPT Click Here for more Information
CD07AR-BR CF07AR-BR .08 - .20 (2-5)
CD09NA-BR CF09NA-BR .16 - .31 (4-8) 3/8" NPT Click Here for more Information
CD09NR-BR CF09NR-BR .08 - .24 (2-6)
CD13NA-BR CF13NA-BR .24 - .47 (6-12) 1/2" NPT Click Here for more Info
CD13NR-BR CF13NR-BR .20 - .35 (5-9)
CD16NA-BR CF16NA-BR* .39 - .55 (10-14) 1/2" NPT Click Here for more Information
CD16NR-BR CF16NR-BR* .28 - .47 (7-12)
CD21NA-BR CF21NA-BR .51 - .71 (13-18) 3/4" NPT Click Here for more Information
CD21NR-BR CF21NR-BR .35 - .63 (9-16)
CD29NA-BR -- .71 - .98 (18-25) 1" NPT Click Here for more Information
CD29NR-BR -- .51 - .79 (13-20)
* Conversion required, not a standard product
