Sealcon #: K7004
Size: K ENYCASE

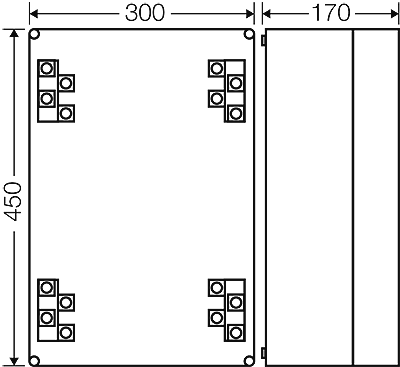

Material: K 450 x 300 x 170 mm
Hensel #: K 7004
Cover screws and mounting screws included.
16-70 mm², Cu 3~
With terminals
4-pole per pole 4 x 16-70 mm² s
Sealable
Order cable glands, flanges and other accessories separately as required
For normal environment and protected outdoor
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: 216 A
Material PC (Polycarbonate)
Degree of protection IP 65
Width 300 mm
Height 450 mm
Depth 170 mm
Weight 3,76 kg
Tightening torque for terminal 10.0 NmImpactFire Resistance
IK08 (5 Joule)
Glow wire test IEC 60695-2-11: 960 °C
