Sealcon #: KF3550A
Size: KF ENYCASE A
Material: KF 295 x 255 x 122 mm
Hensel #: KF 3550 A
Cover screws and mounting screws included.
1.5-50 mm², Cu/Alu 3~
With connecting terminal
5-pole per pole 2 x 1.5-50 mm², conductors are inserted into the screw-type terminal, terminal technology
Included cable entry: 2 EDK 40, sealing range Ø 11-30 mm, IP 65
Degree of protection IP 66 / IP 67 / IP 69, order cable glands AKM separately (see cable entry systems LES)
With two cable entries M 32 from the rear side
Before connecting, aluminum conductors must be pre-treated according to the appropriate technical recommendations, see technical Information aluminum conductors
Lid fasteners sealable without accessories
External brackets for wall fixing included
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: Cu 160 A
Alu 145 A
Material PC-GFS (polycarbonate)
Degree of protection IP 66 / IP 67 / IP 69
IP 67, temporary submersion
IP 69, water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m

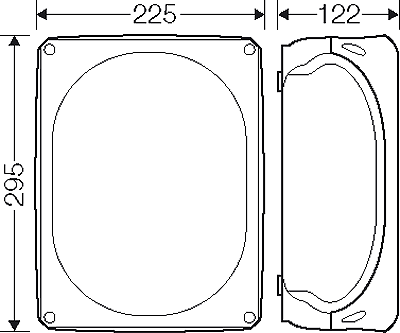

Width 225 mm
Height 295 mm
Depth 122 mm
Weight 1,33 kg
Tightening torque for terminal 1,5 Nm 1,5 - 2,5 mm²
5,0 Nm 4 - 10 mm²
10,0 Nm 16 - 50 mm²ImpactFire Resistance
IK09 (10 Joule)
Glow wire test IEC 60695-2-11: 960° C
