Sealcon #: KF5050A
Size: KF ENYCASE A
Material: KF 355 x 255 x 122 mm
Hensel #: KF 5050 A
Cover screws and mounting screws included.
1.5-50 mm², Cu/Alu 3~
With connecting terminal
5-pole per pole 2 x 1.5-50 mm², conductors are inserted into the screw-type terminal, terminal technology, see annex DK Cable junction boxes
Included cable entry: 2 EDK 40, sealing range Ø 11-30 mm, IP 65
Degree of protection IP 66 / IP 67 / IP 69, order cable glands AKM separately
With two cable entries M 32 from the rear side
Before connecting, aluminum conductors must be pre-treated according to the appropriate technical recommendations
Aluminum conductors
Lid fasteners sealable without accessories
External brackets for wall fixing included
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Rated current: Cu 160 A
Alu 145 A
Material PC-GFS (polycarbonate)
Degree of protection IP 66 / IP 67 / IP 69
IP 67, temporary submersion
IP 69, water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m

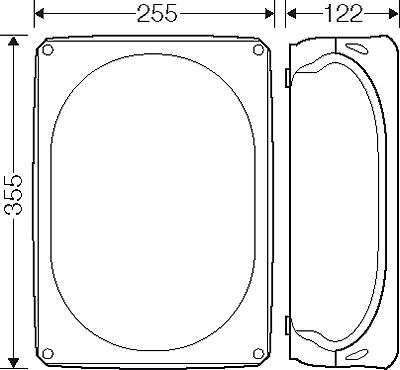

Width 255 mm
Height 355 mm
Depth 122 mm
Weight 1,89 kg
Tightening torque for terminal 1,5 Nm 1,5 - 2,5 mm²
5,0 Nm 4 - 10 mm²
10,0 Nm 16 - 50 mm²ImpactFire Resistance
IK09 (10 Joule)
Glow wire test IEC 60695-2-11: 960° C
