Nickel Plated Brass Mini WADI Elongated - Smallest Cable O.D. Metric

CD10DW-BR

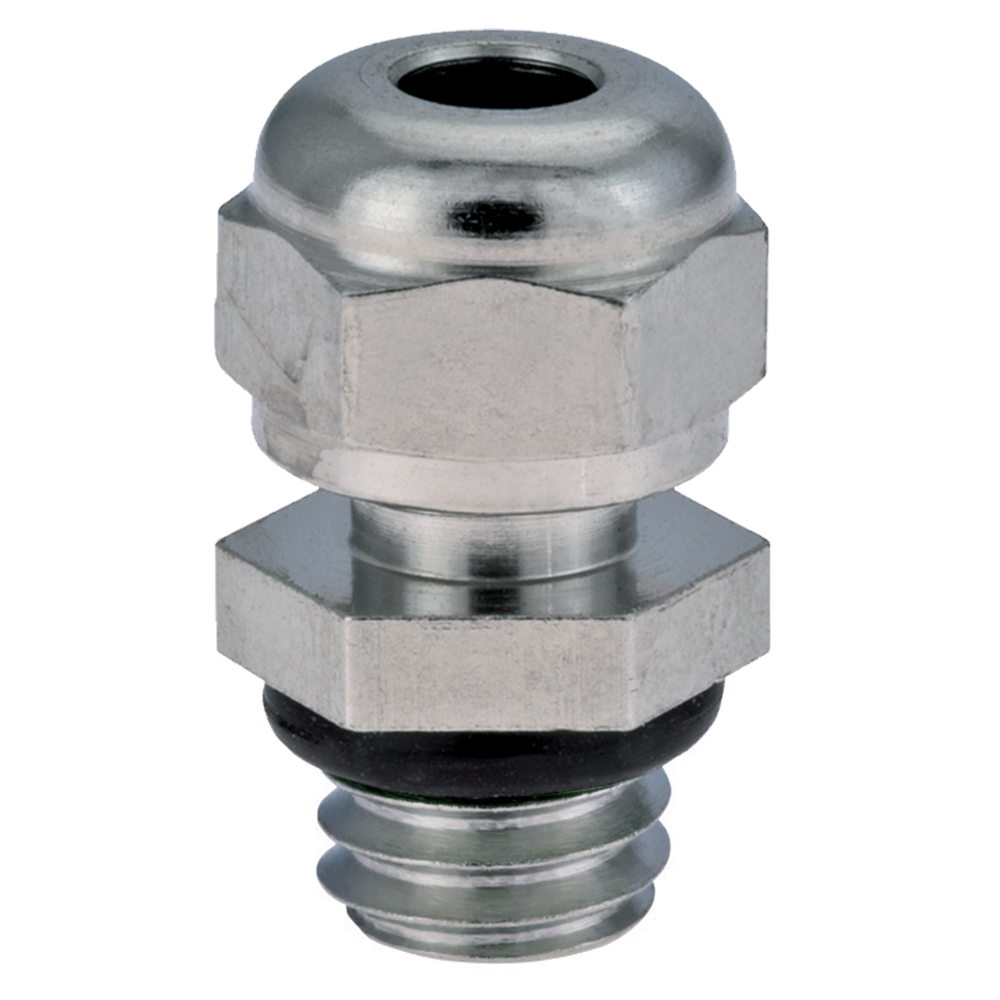

Nickel Plated Brass M10 x 1.5 Mini WADI Elongated Fitting

Thread Range: M10 x 1.5

Locking Nut Sold Separately

Sealcon # CD10DW-BR
Cable Range .16" - .24" (4 - 6 mm)
Color Nickel
Hummel # 1.106.1001.30
Hummel HSK-MINI
Material Nickel Plated Brass

Hole Diameter (A)
.39" (10 mm)
Body Length (B)
.55" (14 mm)
Thread Length (D)
.39" (10 mm)
Wrench Flat (F1/F)
.47" (12 mm)

Suggested Clearance Hole for Non-Threaded Mounting

Features

  • Flame protected - V0 Rated according to UL 94
  • Halogen- and Phosphorous free materials
  • Large Selection - Cable Range from .08" (2mm) to 1.38" (35mm)
  • Non-Corrosive - Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
  • Durable - Rugged Construction
  • Environmentally compliant - RoHS & Deca BDE

Also Available in FKM and EMI

This Miniature Nickel Plated Brass Strain Relief with M10 x 1.5 Thread will provide your application with a product made of exceptional quality.

Technical Data

Pressure Rating

70 psig (5 bar) NEMA 4x - IP 68

Materials

  • Fittings: Nickel Plated Brass
  • Form Seal:
  • Optional O-Ring: FKM or Silicone
  • Optional Seal Ring: FKM or Silicone

Protection

IP 68

Operating Temperature

-20°C to 100°C (-4°F to 212°F)
