Sealcon #: CD16A4-BR
Color: Nickel
Material: Nickel Plated Brass
Number of Holes: 5
Diameter of Holes: 0.16" (4 mm)
Insert Part Number: 1.089.1603.19
Hummel: HSK-M-MULTI
Hummel #: 1.697.1603.01
Locking Nut Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Body Length (B) | 0.91" (23 mm) |
|---|---|
| Thread Length (D) | 0.26" (6.5 mm) |
| Wrench Flat (F1) | 0.94" (24 mm) |
PDF DOWNLOADS
Catalog Page-
Features
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE

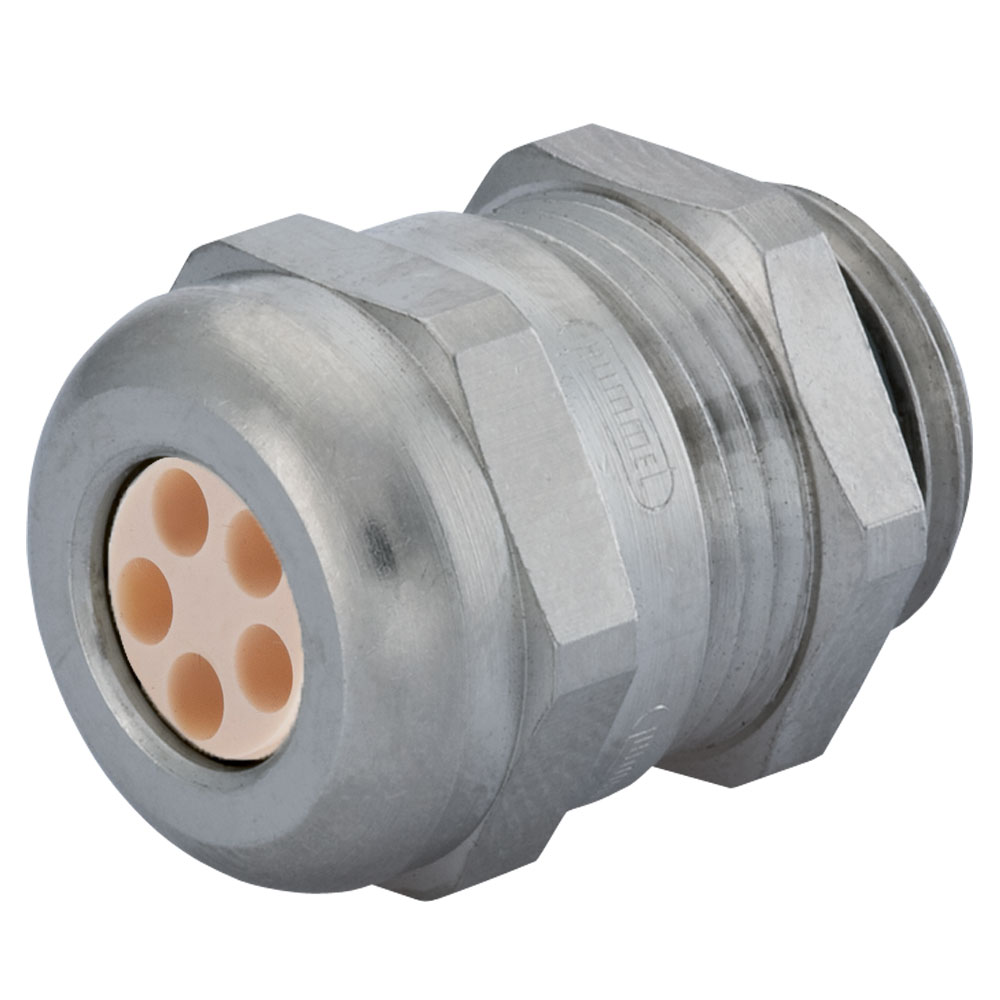

This Nickel Plated Brass Liquid Tight Strain Relief Fitting with Multi-Hole Insert will provide your application with a product made of exceptional quality.
-
Pressure RatingMaterials
IP 65 / IP 68 10 bar possible with ideal fit- Fittings: Nickel Plated Brass
- Form Seal: Elastomer
- Optional ORing: Buna-N, FPM or Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
APPROVALS
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Waste Electrical and Electronic Equipment Directive
CSA approval CSA (Canadian Standard Association)
CE approval CE (Certified European Approval)
UR (Recognized Underwriters Laboratories)
German Lloyd
PCT Approval
