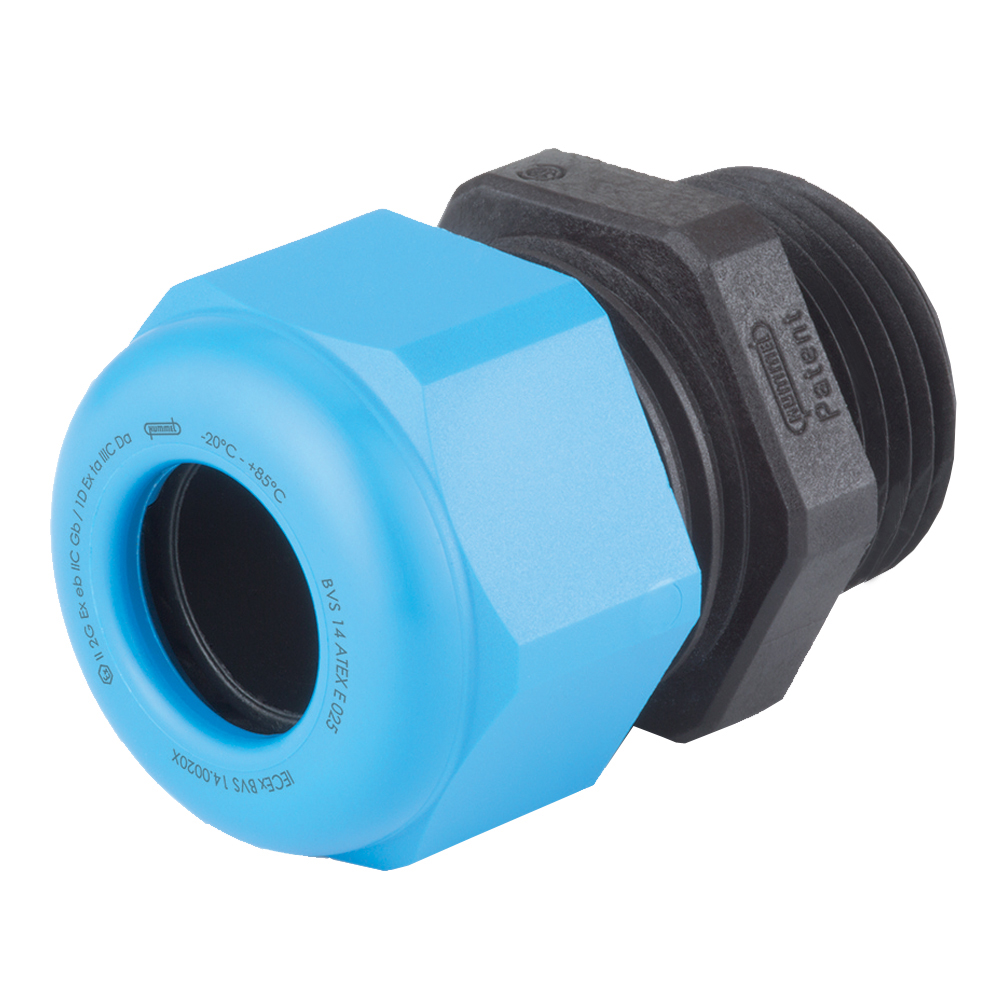

Nylon BXI Elongated Active Relief Fitting M40
Locking Nut Sold Separately
Sealcon # CD40DR-BXI
Cable Range .79" - 1.02" (20 - 26 mm)
Color Blue
Hummel # 1.292.4002.31
Hummel HSK-K-Ex-Active
Material Fiber Reinforced Nylon
Hole Diameter (A)
1.57" (40 mm)
Body Length (B)
1.89" (48 mm)
Thread Length (D)
.71" (18 mm)
Wrench Flat (F1/F)
2.09" (53 mm)

Suggested Clearance Hole for Non-Threaded Mounting

Features
The HSK-K-Ex-Active has been developed to meet the stringent requirements of EN 60079-0 : 2012. IECEx Certificate of Conformity: IECEx BVS 14.0020X. This non-metallic solution for non-armored cables is designed for applications in electrical equipment and potentially explosive atmospheres.
- Machine, apparatus and plant equipment
- Measuring control and feedback systems
- Potentially Explosive Atmospheres
- Electrical Equipment
- Industrial installations
Technical Data
Operating Temperature
-20°C to 85°C (-4°F to 185°F)
Pressure Rating:
150 PSIG (10 BAR) Type Nema 6 - IP 68
Materials: Fittings: Fibreglass reinforced polyamide V0 according to UL 94 Seal/O-Ring: NBR
* Sizes: M12 to M63 and NPT 3/8 to NPT 1-1/2 Available Colors: Black
High Impact Resistance: 7 Joule
Latest ATEX/IECEx & CSA Standards
150 PSIG (10 bar) liquid tight rating
Concentric O-Ring Groove
UL f1 (746C) UV/Ozone Stable
RoHS & Deca BDE Compliant
Materials: Fittings: Fibreglass reinforced polyamide V0 according to UL 94 Seal/O-Ring: NBR
* Sizes: M12 to M63 and NPT 3/8 to NPT 1-1/2 Available Colors: Black
High Impact Resistance: 7 Joule
Latest ATEX/IECEx & CSA Standards
150 PSIG (10 bar) liquid tight rating
Concentric O-Ring Groove
UL f1 (746C) UV/Ozone Stable
RoHS & Deca BDE Compliant
Approvals
RoHS Compliance
- CSAus
V0 UL94 Rated / Approved
IECEx
Certified European Approval
ATEX
- Class I, Div 2, Groups A,B,C,D
- Class II Div 1, Groups E,F,G
- II 2G Ex eb IIC Gb
- II 1D Ex ta IIIC Da
- Zone 1 = 2G ATEX = Gb by IEC
- Zone 2 = 3G ATEX = Gc by IEC
- Zone 20 = 1D by ATEX = Da by IEC
- Zone 21 = 2D by ATEX = Db by IEC
- Zone 22 = 3D by ATEX = Dc by IEC
