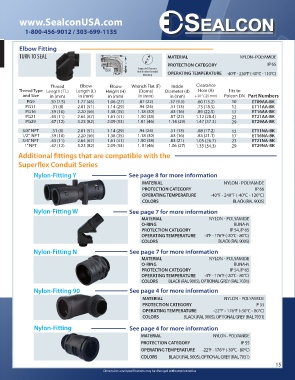

SUPERFLEX CONDUIT SERIES Elbow Fitting

TURN TO SEAL L MATERIAL NYLON - POLYAMIDE
CONDUITS - Compatible Fittings On Page 14-15 H A PROTECTION CATEGORY IP 65

Wrench Suggested Clearance
Flat (F) TL Hole for Non-Threaded OPERATING TEMPERATURE -40°F - 230°F (-40°C - 110°C)
d Mounting
Thread Elbow Elbow Wrench Flat (F) Inside Clearance
Thread Type Length (TL) Length (L) Height (H) (Dome) Diameter (d) Hole (A) Fits to
and Size in (mm) in (mm) in (mm) in (mm) in (mm) +.01” (.25 mm) Poleon DN Part Numbers
PG9 .30 (7.5) 1.77 (45) 1.06 (27) .87 (22) .37 (9.5) .60 (15.2) 10 ET09AA-BK
PG11 .31 (8) 2.01 (51) 1.14 (29) .94 (24) .51 (13) .73 (18.5) 12 ET11AA-BK
PG16 .39 (10) 2.20 (56) 1.38 (35) 1.18 (30) .63 (16) .89 (22.5) 17 ET16AA-BK
PG21 .43 (11) 2.64 (67) 1.61 (41) 1.50 (38) .87 (22) 1.12 (28.4) 23 ET21AA-BK
PG29 .47 (12) 3.23 (82) 2.09 (53) 1.81 (46) 1.14 (29) 1.47 (37.3) 29 ET29AA-BK
3/8” NPT .31 (8) 2.01 (51) 1.14 (29) .94 (24) .51 (13) .68 (17.2) 12 ET11NA-BK
1/2” NPT .39 (10) 2.20 (56) 1.38 (35) 1.18 (30) .63 (16) .83 (21.1) 17 ET16NA-BK
3/4” NPT .43 (11) 2.64 (67) 1.61 (41) 1.50 (38) .83 (21) 1.05 (26.7) 23 ET21NA-BK
1” NPT .47 (12) 3.23 (82) 2.09 (53) 1. 81(46) 1.06 (27) 1.35 (34.3) 29 ET29NA-BK
Additional fittings that are compatible with the

Superflex Conduit Series

Nylon-Fitting Y See page 8 for more information
MATERIAL NYLON - POLYAMIDE
PROTECTION CATEGORY IP 66
OPERATING TEMPERATURE -40°F - 248°F (-40°C - 120°C)
COLORS BLACK (RAL 9005)
Nylon-Fitting W See page 7 for more information

MATERIAL NYLON - POLYAMIDE
O-RING BUNA-N
PROTECTION CATEGORY IP 54, IP 65
OPERATING TEMPERATURE -4°F - 176°F (-20°C - 80°C)
COLORS BLACK (RAL 9005)
Nylon-Fitting N See page 7 for more information
MATERIAL NYLON - POLYAMIDE
O-RING BUNA-N
PROTECTION CATEGORY IP 54, IP 65
OPERATING TEMPERATURE -4°F - 176°F (-20°C - 80°C)
Part Numbers COLORS BLACK (RAL 9005), OPTIONAL GREY (RAL 7031)
ST07AA-BK Nylon-Fitting 90 See page 4 for more information
ST07AR-BK
ST09AA-BK MATERIAL NYLON - POLYAMIDE
ST11AA-BK PROTECTION CATEGORY IP 55
ST16AA-BK OPERATING TEMPERATURE -22°F - 176°F (-30°C - 80°C)
ST21AA-BK COLORS BLACK (RAL 9005), OPTIONAL GREY (RAL 7031)
ST29AA-BK
ST36AA-BK
ST48AA-BK Nylon-Fitting See page 4 for more information
MATERIAL NYLON - POLYAMIDE
ST11NA-BK
ST16NA-BK PROTECTION CATEGORY IP 55
ST21NA-BK OPERATING TEMPERATURE -22°F - 176°F (-30°C - 80°C)
ST29NA-BK
ST36NA-BK COLORS BLACK (RAL 9005), OPTIONAL GREY (RAL 7031)
15
