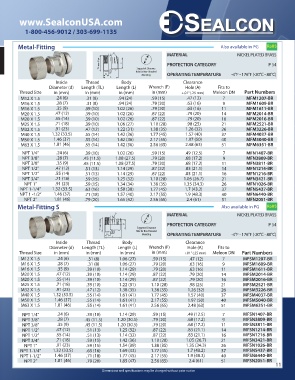

METAL STANDARD CONDUIT SERIES Metal-Fitting F A MATERIAL Also available in PG RoHS
NICKEL PLATED BRASS

CONDUIT - Compatible Fittings On Page 11 Thread Size d Suggested Clearance PROTECTION CATEGORY IP 54

TL Hole for Non-Threaded OPERATING TEMPERATURE -4°F - 176°F (-20°C - 80°C)
Mounting
L
Inside Thread Body Clearance
Diameter (d) Length (TL) Length (L) Wrench (F) Hole (A) Fits to
Thread Size in (mm) in (mm) in (mm) in (mm) +.01” (.25 mm) Meleon DN Part Numbers
M12 X 1.5 .24 (6) .31 (8) .94 (24) .59 (15) .47 (12) 7 MFM1207-BR
M16 X 1.5 .28 (7) .31 (8) .94 (24) .79 (20) .63 (16) 9 MFM1609-BR
M16 X 1.5 .35 (9) .39 (10) 1.02 (26) .79 (20) .63 (16) 11 MFM1611-BR
M20 X 1.5 .47 (12) .39 (10) 1.02 (26) .87 (22) .79 (20) 14 MFM2014-BR
M20 X 1.5 .55 (14) .39 (10) 1.02 (26) .87 (22) .79 (20) 16 MFM2016-BR
M25 X 1.5 .71 (18) .39 (10) 1.06 (27) 1.10 (28) .98 (25) 21 MFM2521-BR
M32 X 1.5 .91 (23) .47 (12) 1.22 (31) 1.38 (35) 1.26 (32) 26 MFM3226-BR
Part Numbers M40 X 1.5 1.32 (33.5) .55 (14) 1.42 (36) 1.77 (45) 1.57 (40) 37 MFM4037-BR
GS-0811-SA M50 X 1.5 1.46 (37) .55 (14) 1.42 (36) 2.17 (55) 1.97 (50) 40 MFM5040-BR
GS-0912-SA M63 X 1.5 1.81 (46) .55 (14) 1.42 (36) 2.56 (65) 2.48 (63) 51 MFM6351-BR
GS-1114-SA NPT 1/4” .24 (6) .39 (10) 1.02 (26) .59 (15) .49 (12.5) 7 MFN1407-BR
GS-1417-SA NPT 3/8” .28 (7) .45 (11.5) 1.08 (27.5) .79 (20) .68 (17.2) 9 MFN3809-BR
GS-1619-SA NPT 3/8” .35 (9) .45 (11.5) 1.08 (27.5) .79 (20) .68 (17.2) 11 MFN3811-BR
GS-2124-SA NPT 1/2” .47 (12) .51 (13) 1.14 (29) .87 (22) .83 (21.1) 14 MFN1214-BR
GS-2630-SA NPT 1/2” .55 (14) .51 (13) 1.14 (29) .87 (22) .83 (21.1) 16 MFN1216-BR
GS-3741-SA NPT 3/4” .71 (18) .59 (15) 1.25 (32) 1.10 (28) 1.05 (26.7) 21 MFN3421-BR
GS-4044-SA NPT 1” .91 (23) .59 (15) 1.34 (34) 1.38 (35) 1.35 (34.3) 26 MFN1026-BR
GS-5155-SA NPT 1-1/4” 1.32 (33.5) .63 (16) 1.50 (38) 1.77 (45) 1.7 (43.2) 37 MFN5437-BR
NPT 1 -1/2” 1.46 (37) .71 (18) 1.57 (40) 2.17 (55) 1.9 (48.3) 40 MFN6440-BR
NPT 2” 1.81 (46) .79 (20) 1.65 (42) 2.56 (65) 2.4 (61) 51 MFN2051-BR

Metal-Fitting S Also available in PG RoHS
F
MATERIAL NICKEL PLATED BRASS

A
Thread Size d Suggested Clearance PROTECTION CATEGORY IP 54

Hole for Non-Threaded
TL Mounting OPERATING TEMPERATURE -4°F - 176°F (-20°C - 80°C)
L
Inside Thread Body Clearance
Diameter (d) Length (TL) Length (L) Wrench (F) Hole (A) Fits to
Part Numbers Thread Size in (mm) in (mm) in (mm) in (mm) +.01” (.25 mm) Meleon DN Part Numbers
GS-0812-SB M12 X 1.5 .24 (6) .31 (8) 1.06 (27) .59 (15) .47 (12) 7 MFSM1207-BR
GS-0913-SB M16 X 1.5 .28 (7) .31 (8) 1.06 (27) .79 (20) .63 (16) 9 MFSM1609-BR
GS-1115-SB M16 X 1.5 .35 (9) .39 (10) 1.14 (29) .79 (20) .63 (16) 11 MFSM1611-BR
GS-1418-SB M20 X 1.5 .47 (12) .39 (10) 1.14 (29) .87 (22) .79 (20) 14 MFSM2014-BR
GS-1620-SB M20 X 1.5 .55 (14) .39 (10) 1.14 (29) .87 (22) .79 (20) 16 MFSM2016-BR
GS-2125-SB M25 X 1.5 .71 (18) .39 (10) 1.22 (31) 1.10 (28) .98 (25) 21 MFSM2521-BR
GS-2631-SB M32 X 1.5 .91 (23) .47 (12) 1.38 (35) 1.38 (35) 1.26 (32) 26 MFSM3226-BR
GS-3742-SB M40 X 1.5 1.32 (33.5) .55 (14) 1.61 (41) 1.77 (45) 1.57 (40) 37 MFSM4037-BR
GS-4045-SB M50 X 1.5 1.46 (37) .55 (14) 1.61 (41) 2.17 (55) 1.97 (50) 40 MFSM5040-BR
GS-5156-SB M63 X 1.5 1.81 (46) .55 (14) 1.61 (41) 2.56 (65) 2.48 (63) 51 MFSM6351-BR

NPT 1/4” .24 (6) .39 (10) 1.14 (29) .59 (15) .49 (12.5) 7 MFSN1407-BR
NPT 3/8” .28 (7) .45 (11.5) 1.20 (30.5) .79 (20) .68 (17.2) 9 MFSN3809-BR
NPT 3/8” .35 (9) .45 (11.5) 1.20 (30.5) .79 (20) .68 (17.2) 11 MFSN3811-BR
NPT 1/2” .47 (12) .51 (13) 1.25 (32) .87 (22) .83 (21.1) 14 MFSN1214-BR
NPT 1/2” .55 (14) .51 (13) 1.14 (32) .87 (22) .83 (21.1) 16 MFSN1216-BR
NPT 3/4” .71 (18) .59 (15) 1.42 (36) 1.10 (28) 1.05 (26.7) 21 MFSN3421-BR
NPT 1” .91 (23) .59 (15) 1.54 (39) 1.38 (35) 1.35 (34.3) 26 MFSN1026-BR
NPT 1-1/4” 1.32 (33.5) .63 (16) 1.69 (43) 1.77 (45) 1.7 (43.2) 37 MFSN5437-BR
NPT 1-1/2” 1.46 (37) .71 (18) 1.77 (45) 2.17 (55) 1.9 (48.3) 40 MFSN6440-BR
NPT 2” 1.81 (46) .79 (20) 1.85 (47) 2.56 (65) 2.4 (61) 51 MFSN2051-BR
11
Dimensions and specifications may be changed without prior notice
