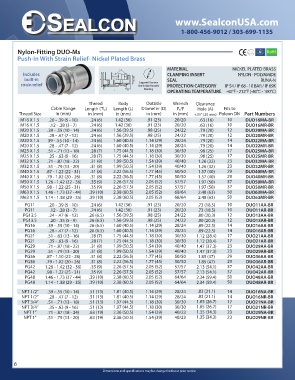

Page 6 - conduit-catalog

www.SealconUSA.com

1-800-456-9012 / 303-699-1135

Nylon-Fitting DUO-Ms M RoHS
Push-In With Strain Relief- Nickel Plated Brass

MATERIAL NICKEL PLATED BRASS
F₁/F
Includes A CLAMPING INSERT NYLON - POLYAMIDE
built-in D Thread Size SEAL BUNA-N
Suggested Clearance
strain relief Hole for Non-Threaded PROTECTION CATEGORY IP 54 / IP 68 - 10 BAR / IP 69K
Mounting
OPERATING TEMPERATURE -40°F - 212°F (-40°C - 100°C)
L TL
Thread Body Outside Wrench Clearance
Cable Range Length (TL) Length (L) Diameter (D) F₁/F Hole (A) Fits to
Thread Size in (mm) in (mm) in (mm) in (mm) in (mm) +.01” (.25 mm) Poleon DN Part Numbers
M16 X 1.5 .20 - .39 (5 - 10) .24 (6) 1.42 (36) .91 (23) 20/20 .63 (16) 10 DUO16MA-BR
M16 X 1.5 .12 - .28 (3 - 7) .24 (6) 1.42 (36) .91 (23) 20/20 .63 (16) 10 DUO16MR-BR
M20 X 1.5 .39 - .55 (10 - 14) .24 (6) 1.56 (39.5) .98 (25) 24/22 .79 (20) 12 DUO20MA-BR
M20 X 1.5 .28 - .47 (7 - 12) .24 (6) 1.56 (39.5) .98 (25) 24/22 .79 (20) 12 DUO20MR-BR
M20 X 1.5 39 - .55 (10 - 14) .24 (6) 1.60 (40.5) 1.14 (29) 28/24 .79 (20) 14 DUO22MA-BR
M20 X 1.5 .28 - .47 (7 - 12) .24 (6) 1.60 (40.5) 1.14 (29) 28/24 .79 (20) 14 DUO22MR-BR
M25 X 1.5 .51 - .71 (13 - 18) .28 (7) 1.75 (44.5) 1.18 (30) 30/30 .98 (25) 17 DUO25MA-BR
M25 X 1.5 .35 - .63 (9 - 16) .28 (7) 1.75 (44.5) 1.18 (30) 30/30 .98 (25) 17 DUO25MR-BR
M32 X 1.5 .71 - .87 (18 - 22) .31 (8) 1.99 (50.5) 1.54 (39) 40/40 1.26 (32) 23 DUO32MA-BR
M32 X 1.5 .51 - .79 (13 - 20) .31 (8) 1.99 (50.5) 1.54 (39) 40/40 1.26 (32) 23 DUO32MR-BR
M40 X 1.5 .87 - 1.22 (22 - 31) .31 (8) 2.22 (56.5) 1.77 (45) 50/50 1.57 (40) 29 DUO40MA-BR
M40 X 1.5 .79 - 1.02 (20 - 26) .31 (8) 2.22 (56.5) 1.77 (45) 50/50 1.57 (40) 29 DUO40MR-BR
M50 X 1.5 1.26 - 1.42 (32 - 36) .35 (9) 2.26 (57.5) 2.05 (52) 57/57 1.97 (50) 37 DUO50MA-BR
M50 X 1.5 .98 - 1.22 (25 - 31) .35 (9) 2.26 (57.5) 2.05 (52) 57/57 1.97 (50) 37 DUO50MR-BR
M63 X 1.5 1.46 - 1.73 (37 - 44) .39 (10) 2.38 (60.5) 2.05 (52) 68/64 2.48 (63) 50 DUO63MA-BR
M63 X 1.5 1.14 - 1.38 (29 - 35) .39 (10) 2.38 (60.5) 2.05 (52) 68/64 2.48 (63) 50 DUO63MR-BR
PG11 .20 - .39 (5 - 10) .24 (6) 1.42 (36) .91 (23) 20/20 .73 (18.5) 10 DUO11AA-BR
PG11 .12 - .28 (3 - 7) .24 (6) 1.42 (36) .91 (23) 20/20 .73 (18.5) 10 DUO11AR-BR
PG13.5 .24 - .47 (6 - 12) .26 (6.5) 1.56 (39.5) .98 (25) 24/22 .80 (20.3) 12 DUO13AA-BR
PG13.5 .20 - .35 (5 - 9) .26 (6.5) 1.56 (39.5) .98 (25) 24/22 .80 (20.3) 12 DUO13AR-BR
PG16 .39 - .55 (10 - 14) .26 (6.5) 1.60 (40.5) 1.14 (29) 28/24 .89 (22.5) 14 DUO16AA-BR
PG16 .28 - .47 (7 - 12) .26 (6.5) 1.60 (40.5) 1.14 (29) 28/24 .89 (22.5) 14 DUO16AR-BR
PG21 .51 - .63 (13 - 16) .28 (7) 1.75 (44.5) 1.18 (30) 30/30 1.12 (28.4) 17 DUO21AA-BR
PG21 .35 - .63 (9 - 16) .28 (7) 1.75 (44.5) 1.18 (30) 30/30 1.12 (28.4) 17 DUO21AR-BR
PG29 .71 - .87 (18 - 22) .31 (8) 1.99 (50.5) 1.54 (39) 40/40 1.47 (37.3) 23 DUO29AA-BR
PG29 .51 - .79 (13 - 20) .31 (8) 1.99 (50.5) 1.54 (39) 40/40 1.47 (37.3) 23 DUO29AR-BR
PG36 .87 - 1.10 (22 - 28) .31 (8) 2.22 (56.5) 1.77 (45) 50/50 1.85 (47) 29 DUO36AA-BR
PG36 .79 - 1.02 (20 - 26) .31 (8) 2.22 (56.5) 1.77 (45) 50/50 1.85 (47) 29 DUO36AR-BR
PG42 1.26 - 1.42 (32 - 36) .35 (9) 2.26 (57.5) 2.05 (52) 57/57 2.13 (54.1) 37 DUO42AA-BR
PG42 .98 - 1.22 (25 - 31) .35 (9) 2.26 (57.5) 2.05 (52) 57/57 2.13 (54.1) 37 DUO42AR-BR
PG48 1.46 - 1.73 (37 - 44) .39 (10) 2.38 (60.5) 2.05 (52) 64/64 2.34 (59.4) 50 DUO48AA-BR
PG48 1.14 - 1.38 (29 - 35) .39 (10) 2.38 (60.5) 2.05 (52) 64/64 2.34 (59.4) 50 DUO48AR-BR

NPT 1/2” .39 - .55 (10 - 14) .51 (13) 1.81 (40.5) 1.14 (29) 28/24 .83 (21.1) 14 DUO16NA-BR
NPT 1/2” .28 - .47 (7 - 12) .51 (13) 1.81 (40.5) 1.14 (29) 28/24 .83 (21.1) 14 DUO16NR-BR
NPT 3/4” .51 - .71 (13 - 18) .51 (13) 1.97 (44.5) 1.18 (30) 30/30 1.05 (26.7) 17 DUO21NA-BR
NPT 3/4” .35 - .63 (9 - 16) .51 (13) 1.97 (44.5) 1.18 (30) 30/30 1.05 (26.7) 17 DUO21NR-BR
NPT 1” .71 - .87 (18 - 24) .63 (19) 2.36 (50.5) 1.54 (39) 40/23 1.35 (34.3) 23 DUO29NA-BR
NPT 1” .51 - .79 (13 - 20) .63 (19) 2.36 (50.5) 1.54 (39) 40/23 1.35 (34.3) 23 DUO29NR-BR

6
Dimensions and specifications may be changed without prior notice
