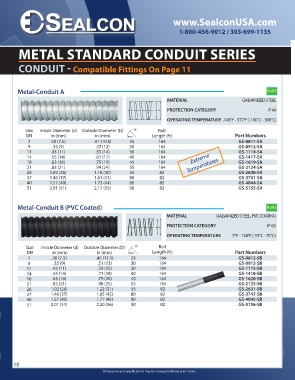

Page 10 - conduit-catalog

www.SealconUSA.com

1-800-456-9012 / 303-699-1135

METAL STANDARD CONDUIT SERIES

CONDUIT - Compatible Fittings On Page 11

Metal-Conduit A RoHS

MATERIAL GALVANIZED STEEL

d D PROTECTION CATEGORY IP 40
OPERATING TEMPERATURE -148°F - 572°F (-100°C - 300°C)

Size Inside Diameter (d) Outside Diameter (D) Roll
DN in (mm) in (mm) Length (ft) Part Numbers
7 .30 (7.5) .41 (10.5) 25 164 GS-0811-SA
9 .35 (9) .47 (12) 30 164 GS-0912-SA
11 .43 (11) .55 (14) 30 164 GS-1114-SA
14 .55 (14) .67 (17) 40 164 Extreme GS-1417-SA
16 .63 (16) .75 (19) 45 164 GS-1619-SA
21 .83 (21) .94 (24) 55 164 Temperatures GS-2124-SA
26 1.02 (26) 1.18 (30) 55 82 GS-2630-SA
37 1.46 (37) 1.61 (41) 80 82 GS-3741-SA
40 1.57 (40) 1.73 (44) 80 82 GS-4044-SA
51 2.01 (51) 2.17 (55) 90 82 GS-5155-SA

Metal-Conduit B (PVC Coated) RoHS

MATERIAL GALVANIZED STEEL, PVC COATING
PROTECTION CATEGORY IP 65
d D
OPERATING TEMPERATURE 5°F - 158°F (-15°C - 70°C)

Size Inside Diameter (d) Outside Diameter (D) Roll
DN in (mm) in (mm) Length (ft) Part Numbers
7 .30 (7.5) .45 (11.5) 25 164 GS-0812-SB
9 .35 (9) .51 (13) 30 164 GS-0913-SB
11 .43 (11) .59 (15) 30 164 GS-1115-SB
14 .55 (14) .71 (18) 40 164 GS-1418-SB
16 .63 (16) .79 (20) 45 164 GS-1620-SB
21 .83 (21) .98 (25) 55 164 GS-2125-SB
26 1.02 (26) 1.22 (31) 55 82 GS-2631-SB
37 1.46 (37) 1.65 (42) 80 82 GS-3742-SB
40 1.57 (40) 1.77 (45) 80 82 GS-4045-SB
51 2.01 (51) 2.20 (56) 90 82 GS-5156-SB

10
Dimensions and specifications may be changed without prior notice
