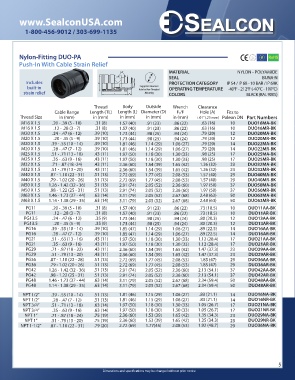

Page 5 - conduit-catalog

www.SealconUSA.com

1-800-456-9012 / 303-699-1135

Nylon-Fitting Nylon-Fitting DUO-PA RoHS
Push-In Rotatable Push-In With Cable Strain Relief M

MATERIAL NYLON - POLYAMIDE
F₁/F
A SEAL BUNA-N
Includes D Thread Size PROTECTION CATEGORY IP 54 / IP 68 - 10 BAR / IP 69K
Suggested Clearance
built-in Hole for Non-Threaded OPERATING TEMPERATURE -40°F - 212°F (-40°C - 100°C)
strain relief L TL Mounting COLORS BLACK (RAL 9005)

Thread Body Outside Wrench Clearance
Part Numbers Cable Range Length (TL) Length (L) Diameter (D) F₁/F Hole (A) Fits to
Thread Size in (mm) in (mm) in (mm) in (mm) in (mm) +.01” (.25 mm) Poleon DN Part Numbers
M16 X 1.5 .20 - .39 (5 - 10) .31 (8) 1.57 (40) .91 (23) .86 (22) .63 (16) 10 DUO16MA-BK
M16 X 1.5 .12 - .28 (3 - 7) .31 (8) 1.57 (40) .91 (23) .86 (22) .63 (16) 10 DUO16MR-BK
M20 X 1.5 .24 - .47 (6 - 12) .39 (10) 1.73 (44) .98 (25) .94 (24) .79 (20) 12 DUO20MA-BK
M20 X 1.5 .20 - .35 (5 - 9) .39 (10) 1.73 (44) .98 (25) .94 (24) .79 (20) 12 DUO20MR-BK
M20 X 1.5 .39 - .55 (10 - 14) .39 (10) 1.81 (46) 1.14 (29) 1.06 (27) .79 (20) 14 DUO22MA-BK
M20 X 1.5 .28 - .47 (7 - 12) .39 (10) 1.81 (46) 1.14 (29) 1.06 (27) .79 (20) 14 DUO22MR-BK
M25 X 1.5 .51 - .71 (13 - 18) .43 (11) 1.97 (50) 1.18 (30) 1.30 (33) .98 (25) 17 DUO25MA-BK
M25 X 1.5 .35 - .63 (9 - 16) .43 (11) 1.97 (50) 1.18 (30) 1.30 (33) .98 (25) 17 DUO25MR-BK
M32 X 1.5 .71 - .87 (18 -24) .43 (11) 2.36 (60) 1.54 (39) 1.65 (42) 1.26 (32) 23 DUO32MA-BK
M32 X 1.5 .51 - .79 (13 - 20) .43 (11) 2.36 (60) 1.54 (39) 1.65 (42) 1.26 (32) 23 DUO32MR-BK
M40 X 1.5 .87 - 1.10 (22 - 31) .51 (13) 2.72 (69) 1.77 (45) 2.08 (53) 1.57 (40) 29 DUO40MA-BK
M40 X 1.5 .79 - 1.02 (20 - 26) .51 (13) 2.72 (69) 1.77 (45) 2.08 (53) 1.57 (40) 29 DUO40MR-BK
Nylon-Fitting 90 M50 X 1.5 1.26 - 1.42 (32 - 36) .51 (13) 2.91 (74) 2.05 (52) 2.36 (60) 1.97 (50) 37 DUO50MA-BK
Push-In Rotatable With Elbow M50 X 1.5 .98 - 1.22 (25 - 31) .51 (13) 2.91 (74) 2.05 (52) 2.36 (60) 1.97 (50) 37 DUO50MR-BK
M63 X 1.5 1.46 - 1.73 (37 - 44) .63 (14) 3.11 (79) 2.05 (52) 2.67 (68) 2.48 (63) 50 DUO63MA-BK
M63 X 1.5 1.14 - 1.38 (29 - 35) .63 (14) 3.11 (79) 2.05 (52) 2.67 (68) 2.48 (63) 50 DUO63MR-BK
PG11 .20 - .39 (5 - 10) .31 (8) 1.57 (40) .91 (23) .86 (22) .73 (18.5) 10 DUO11AA-BK
PG11 .12 - .28 (3 - 7) .31 (8) 1.57 (40) .91 (23) .86 (22) .73 (18.5) 10 DUO11AR-BK
PG13.5 .24 - .47 (6 - 12) .35 (9) 1.73 (44) .98 (25) .94 (24) .80 (20.3) 12 DUO13AA-BK
PG13.5 .20 - .35 (5 - 9) .35 (9) 1.73 (44) .98 (25) .94 (24) .80 (20.3) 12 DUO13AR-BK
PG16 .39 - .55 (10 - 14) .39 (10) 1.85 (47) 1.14 (29) 1.06 (27) .89 (22.5) 14 DUO16AA-BK
PG16 .28 - .47 (7 - 12) .39 (10) 1.85 (47) 1.14 (29) 1.06 (27) .89 (22.5) 14 DUO16AR-BK
Part Numbers PG21 .51 - .63 (13 - 16) .43 (11) 1.97 (50) 1.18 (30) 1.30 (33) 1.12 (28.4) 17 DUO21AA-BK
PEM1206-BK PG21 .35 - .63 (9 - 16) .43 (11) 1.97 (50) 1.18 (30) 1.30 (33) 1.12 (28.4) 17 DUO21AR-BK
PEM1610-BK PG29 .71 - .87 (18 - 22) .43 (11) 2.36 (60) 1.54 (39) 1.65 (42) 1.47 (37.3) 23 DUO29AA-BK
PEM1612-BK PG29 .51 - .79 (13 - 20) .43 (11) 2.36 (60) 1.54 (39) 1.65 (42) 1.47 (37.3) 23 DUO29AR-BK
PEM2014-BK PG36 .87 - 1.10 (22 - 28) .51 (13) 2.72 (69) 1.77 (45) 2.08 (53) 1.85 (47) 29 DUO36AA-BK
PEM2017-BK PG36 .79 - 1.02 (20 - 26) .51 (13) 2.72 (69) 1.77 (45) 2.08 (53) 1.85 (47) 29 DUO36AR-BK
PEM2523-BK PG42 1.26 - 1.42 (32 - 36) .51 (13) 2.91 (74) 2.05 (52) 2.36 (60) 2.13 (54.1) 37 DUO42AA-BK
PG42 .98 - 1.22 (25 - 31) .51 (13) 2.91 (74) 2.05 (52) 2.36 (60) 2.13 (54.1) 37 DUO42AR-BK
PG48 1.46 - 1.73 (37 - 44) .63 (14) 3.11 (79) 2.05 (52) 2.67 (68) 2.34 (59.4) 50 DUO48AA-BK
PG48 1.14 - 1.38 (29 - 35) .63 (14) 3.11 (79) 2.05 (52) 2.67 (68) 2.34 (59.4) 50 DUO48AR-BK

NPT 1/2” .39 - .55 (10 - 14) .51 (13) 1.81 (46) 1.15 (29) 1.06 (27) .83 (21.1) 14 DUO16NA-BK
NPT 1/2” .28 - .47 (7 - 12) .51 (13) 1.81 (46) 1.15 (29) 1.06 (27) .83 (21.1) 14 DUO16NR-BK
NPT 3/4” .51 - .71 (13 - 18) .63 (14) 1.97 (50) 1.18 (30) 1.30 (33) 1.05 (26.7) 17 DUO21NA-BK
NPT 3/4” .35 - .63 (9 - 16) .63 (14) 1.97 (50) 1.18 (30) 1.30 (33) 1.05 (26.7) 17 DUO21NR-BK
NPT 1” .71 - .87 (18 - 24) .75 (19) 2.36 (60) 1.53 (39) 1.65 (42) 1.35 (34.3) 23 DUO29NA-BK
NPT 1” .51 - .79 (13 - 20) .75 (19) 2.36 (60) 1.53 (39) 1.65 (42) 1.35 (34.3) 23 DUO29NR-BK
NPT 1-1/2” .87 - 1.10 (22 - 31) .79 (20) 2.72 (69) 1.77(45) 2.08 (53) 1.92 (48.7) 29 DUO36NA-BK

5
Dimensions and specifications may be changed without prior notice
