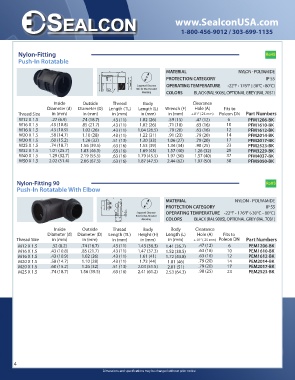

Nylon-Fitting RoHS
Push-In Rotatable

MATERIAL NYLON - POLYAMIDE
L TL

A PROTECTION CATEGORY IP 55
Thread Size d Suggested Clearance OPERATING TEMPERATURE -22°F - 176°F (-30°C - 80°C)
D
Hole for Non-Threaded
F Mounting COLORS BLACK (RAL 9005), OPTIONAL GREY (RAL 7031)
Inside Outside Thread Body Clearance
Diameter (d) Diameter (D) Length (TL) Length (L) Wrench (F) Hole (A) Fits to
Thread Size in (mm) in (mm) in (mm) in (mm) in (mm) +.01” (.25 mm) Poleon DN Part Numbers
M12 X 1.5 .27 (6.9) .74 (18.7) .43 (11) 1.02 (26) .59 (15) .47 (12) 6 PFM1206-BK
M16 X 1.5 .43 (10.8) .85 (21.7) .43 (11) 1.02 (26) .71 (18) .63 (16) 10 PFM1610-BK
M16 X 1.5 .43 (10.9) 1.02 (26) .43 (11) 1.04 (26.5) .79 (20) .63 (16) 12 PFM1612-BK
M20 X 1.5 .58 (14.7) 1.10 (28) .43 (11) 1.22 (31) .91 (23) .79 (20) 14 PFM2014-BK
M20 X 1.5 .60 (15.2) 1.26 (32) .51 (13) 1.30 (33) 1.06 (27) .79 (20) 17 PFM2017-BK
M25 X 1.5 .74 (18.7) 1.56 (39.5) .63 (16) 1.53 (39) 1.34 (34) .98 (25) 23 PFM2523-BK
M32 X 1.5 1.01 (25.7) 1.83 (46.5) .63 (16) 1.69 (43) 1.57 (40) 1.26 (32) 29 PFM3229-BK
M40 X 1.5 1.29 (32.7) 2.19 (55.5) .63 (16) 1.79 (45.5) 1.97 (50) 1.57 (40) 37 PFM4037-BK
M50 X 1.5 2.02 (51.4) 2.66 (67.5) .63 (16) 1.87 (47.5) 2.44 (62) 1.97 (50) 50 PFM5050-BK

Nylon-Fitting 90 RoHS
Push-In Rotatable With Elbow

L
MATERIAL NYLON - POLYAMIDE
A

D PROTECTION CATEGORY IP 55
H

Thread Length Suggested Clearance OPERATING TEMPERATURE -22°F - 176°F (-30°C - 80°C)
d Hole for Non-Threaded
Mounting COLORS BLACK (RAL 9005), OPTIONAL GREY (RAL 7031)
Thread Size
Inside Outside Thread Body Body Clearance
Diameter (d) Diameter (D) Length (TL) Height (H) Length (L) Hole (A) Fits to
Thread Size in (mm) in (mm) in (mm) in (mm) in (mm) +.01” (.25 mm) Poleon DN Part Numbers
M12 X 1.5 .32 (8.2) .74 (18.7) .43 (11) 1.43 (36.3) 1.41 (35.7) .47 (12) 6 PEM1206-BK
M16 X 1.5 .43 (10.8) .85 (21.7) .43 (11) 1.47 (37.3) 1.52 (38.5) .63 (16) 10 PEM1610-BK
M16 X 1.5 .43 (10.9) 1.02 (26) .43 (11) 1.61 (41) 1.72 (43.8) .63 (16) 12 PEM1612-BK
M20 X 1.5 .58 (14.7) 1.10 (28) .43 (11) 1.73 (44) 1.81 (46) .79 (20) 14 PEM2014-BK
M20 X 1.5 .60 (15.2) 1.26 (32) .51 (13) 2.03 (51.5) 2.01 (51) .79 (20) 17 PEM2017-BK
M25 X 1.5 .74 (18.7) 1.56 (39.5) .63 (16) 2.41 (61.2) 2.53 (64.3) .98 (25) 23 PEM2523-BK

4
Dimensions and specifications may be changed without prior notice
