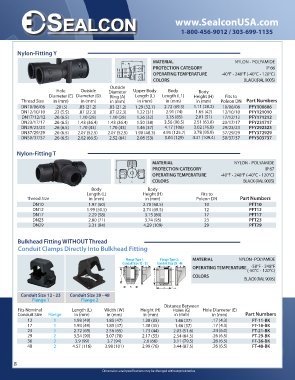

Nylon-Fitting Y

L₁ MATERIAL NYLON - POLYAMIDE
L
PROTECTION CATEGORY IP 66
OPERATING TEMPERATURE -40°F - 248°F (-40°C - 120°C)
A
H
D

COLORS BLACK (RAL 9005)
E
Outside
Hole Outside Diameter Upper Body Body Body
Diameter (E) Diameter (D) Ring (A) Length (L) Length (L1) Height (H) Fits to
Thread Size in (mm) in (mm) in (mm) in (mm) in (mm) in (mm) Poleon DN Part Numbers
DN10/06/06 .20 (5) .83 (21.2) .83 (21.2) 1.29 (32.7) 2.72 (69.3) 1.11 (28.2) 10/06/06 PFY100606
DN12/10/10 .22 (5.5) .87 (22.3) .87 (22.3) 1.22 (31) 2.91 (74) 1.65 (42) 12/10/10 PFY121010
DN17/12/12 .26 (6.5) 1.10 (28) 1.10 (28) 1.26 (32) 3.35 (85) 2.01 (51) 17/12/12 PFY171212
DN23/17/17 .26 (6.5) 1.43 (36.4) 1.43 (36.4) 1.50 (38) 3.56 (90.5) 2.51 (63.8) 23/17/17 PFY231717
DN29/23/23 .26 (6.5) 1.70 (43) 1.70 (43) 1.46 (37) 4.17 (106) 3.02 (76.8) 29/23/23 PFY292323
DN37/29/29 .26 (6.5) 2.07 (52.5) 2.07 (52.5) 1.90 (48.3) 4.95 (125.7) 3.78 (95.9) 37/29/29 PFY372929
DN50/37/37 .26 (6.5) 2.62 (66.5) 2.52 (64) 2.08 (53) 5.04 (129) 4.31 (109.4) 50/37/37 PFY503737

Nylon-Fitting T
MATERIAL NYLON - POLYAMIDE
PROTECTION CATEGORY IP 67
H
OPERATING TEMPERATURE -40°F - 248°F (-40°C - 120°C)
COLORS BLACK (RAL 9005)
L
Body Body
Length (L) Height (H) Fits to
Thread Size in (mm) in (mm) Poleon DN Part Numbers
DN10 1.97 (50) 2.70 (68.5) 10 PFT10
DN12 1.99 (50.5) 2.74 (69.5) 12 PFT12
DN17 2.29 (58) 3.15 (80) 17 PFT17
DN23 2.80 (71) 3.74 (95) 23 PFT23
DN29 3.31 (84) 4.29 (109) 29 PFT29

Bulkhead Fitting WITHOUT Thread
Conduit Clamps Directly Into Bulkhead Fitting

Flange Type 1: Flange Type 2: MATERIAL NYLON - POLYAMIDE
Conduit Size 12 - 23 Conduit Size 29 - 48
G H G H OPERATING TEMPERATURE -58°F - 248°F
E (-50°C - 120°C)
L L COLORS
BLACK (RAL 9005)
W W E
Conduit Size 12 - 23 Conduit Size 29 - 48
Flange 1 Flange 2
Distance Between
Fits Nominal Length (L) Width (W) Height (H) Holes (G) Hole Diameter (E)
Conduit Size Flange in (mm) in (mm) in (mm) in (mm) in (mm) Part Numbers
12 1 1.93 (49) 1.85 (47) 1.38 (35) 1.46 (37) .17 (4.3) FT-11-BK
17 1 1.93 (49) 1.85 (47) 1.38 (35) 1.46 (37) .17 (4.3) FT-16-BK
23 1 2.72 (69) 2.56 (65) 1.73 (44) 2.03 (51.6) .24 (6.0) FT-21-BK
29 2 3.54 (90) 3.07 (78) 2.17 (55) 2.54 (64.5) .26 (6.5) FT-29-BK
36 2 3.9 (99) 3.7 (94) 2.6 (66) 3.11 (79.5) .26 (6.5) FT-36-BK
48 2 4.57 (116) 3.98 (101) 2.99 (76) 3.44 (87.5) .26 (6.5) FT-48-BK

8
Dimensions and specifications may be changed without prior notice
