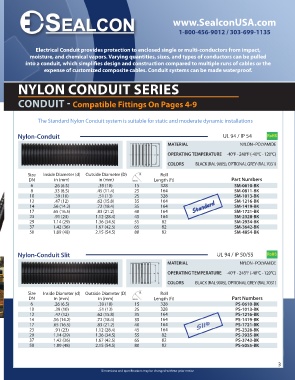

Electrical Conduit provides protection to enclosed single or multi-conductors from impact,
moisture, and chemical vapors. Varying quantities, sizes, and types of conductors can be pulled
into a conduit, which simplifies design and construction compared to multiple runs of cables or the
expense of customized composite cables. Conduit systems can be made waterproof.

NYLON CONDUIT SERIES

CONDUIT - Compatible Fittings On Pages 4-9

Nylon - flexible Nylon cable conduit, standard and split options with removable fittings
The Standard Nylon Conduit system is suitable for static and moderate dynamic installations

Nylon-Conduit UL 94 / IP 54 RoHS

MATERIAL NYLON - POLYAMIDE
OPERATING TEMPERATURE -40°F - 248°F (-40°C - 120°C)
d D
COLORS BLACK (RAL 9005), OPTIONAL GREY (RAL 7031)

Size Inside Diameter (d) Outside Diameter (D) Roll
DN in (mm) in (mm) Length (ft) Part Numbers
6 .26 (6.5) .39 (10) 15 328 SM-0610-BK
8 .33 (8.5) .45 (11.4) 25 164 SM-0811-BK
10 .39 (10) .51 (13) 25 328 SM-1013-BK
12 .47 (12) .62 (15.8) 35 164 SM-1216-BK
14 .56 (14.2) .72 (18.4) 35 164 SM-1419-BK
17 .65 (16.5) .83 (21.2) 40 164 SM-1721-BK
23 .91 (23) 1.12 (28.4) 45 164 SM-2328-BK
29 1.14 (29) 1.36 (34.5) 55 82 SM-2934-BK
37 1.42 (36) 1.67 (42.5) 65 82 SM-3642-BK
Metal - cable conduit made of galvanized steel 50 1.89 (48) 2.15 (54.5) 80 82 SM-4854-BK
with a PVC shell and braided option.
All fittings are removable

Nylon-Conduit Slit UL 94 / IP 50/55 RoHS
MATERIAL NYLON - POLYAMIDE

OPERATING TEMPERATURE -40°F - 248°F (-40°C - 120°C)
d D
COLORS BLACK (RAL 9005), OPTIONAL GREY (RAL 7031)

Size Inside Diameter (d) Outside Diameter (D) Roll
DN in (mm) in (mm) Length (ft) Part Numbers
6 .26 (6.5) .39 (10) 15 328 PS-0610-BK
10 .39 (10) .51 (13) 25 328 PS-1013-BK
12 .47 (12) .62 (15.8) 35 164 PS-1216-BK
14 .56 (14.2) .72 (18.4) 35 164 PS-1419-BK
17 .65 (16.5) .83 (21.2) 40 164 PS-1721-BK
Super Flex - higher flexibility, an ideal solution 23 .91 (23) 1.12 (28.4) 45 164 PS-2328-BK
for drag chain and robotics applications 29 1.14 (29) 1.36 (34.5) 55 82 PS-2935-BK
37 1.42 (36) 1.67 (42.5) 65 82 PS-3743-BK
50 1.89 (48) 2.15 (54.5) 80 82 PS-5055-BK

3
