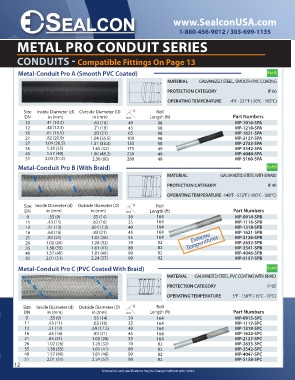

Page 12 - conduit-catalog

www.SealconUSA.com

1-800-456-9012 / 303-699-1135

METAL PRO CONDUIT SERIES

CONDUITS - Compatible Fittings On Page 13

Metal-Conduit Pro A (Smooth PVC Coated) RoHS

MATERIAL GALVANIZED STEEL, SMOOTH PVC COATING

PROTECTION CATEGORY IP 66
d D
OPERATING TEMPERATURE -4°F - 221°F (-20°C - 105°C)

Size Inside Diameter (d) Outside Diameter (D) Roll
DN in (mm) in (mm) Length (ft) Part Numbers
10 .41 (10.3) .63 (16) 40 98 MP-1016-SPA
12 .48 (12.3) .71 (18) 45 98 MP-1218-SPA
16 .61 (15.5) .83 (21) 65 98 MP-1621-SPA
21 .82 (20.9) 1.04 (26.5) 100 98 MP-2127-SPA
27 1.04 (26.5) 1.31 (33.3) 135 98 MP-2733-SPA
35 1.38 (35) 1.65 (42) 175 49 MP-3542-SPA
40 1.57 (40) 1.90 (48.2) 230 49 MP-4048-SPA
51 2.03 (51.5) 2.36 (60) 280 49 MP-5160-SPA
Metal-Conduit Pro B (With Braid) RoHS
MATERIAL GALVANIZED STEEL WITH BRAID
PROTECTION CATEGORY IP 40
d D
OPERATING TEMPERATURE -148°F - 572°F (-100°C - 300°C)

Size Inside Diameter (d) Outside Diameter (D) Roll
DN in (mm) in (mm) Length (ft) Part Numbers
9 .35 (9) .55 (14) 30 164 MP-0914-SPB
11 .43 (11) .63 (16) 35 164 MP-1116-SPB
13 .51 (13) .69 (17.5) 40 164 MP-1318-SPB
16 .63 (16) .83 (21) 45 164 MP-1621-SPB
21 .83 (21) 1.02 (26) 55 164 Extreme MP-2126-SPB
26 1.02 (26) 1.26 (32) 70 82 Temperatures MP-2632-SPB
35 1.38 (35) 1.61 (41) 80 82 MP-3541-SPB
40 1.57 (40) 1.81 (46) 90 82 MP-4046-SPB
51 2.01 (51) 2.24 (57) 90 82 MP-5157-SPB
Metal-Conduit Pro C (PVC Coated With Braid) RoHS

MATERIAL GALVANIZED STEEL, PVC COATING WITH BRAID

d D PROTECTION CATEGORY IP 65
OPERATING TEMPERATURE 5°F - 158°F (-15°C - 70°C)

Size Inside Diameter (d) Outside Diameter (D) Roll
DN in (mm) in (mm) Length (ft) Part Numbers
9 .35 (9) .55 (14) 30 164 MP-0915-SPC
11 .43 (11) .63 (16) 35 164 MP-1117-SPC
13 .51 (13) .69 (17.5) 40 164 MP-1319-SPC
16 .63 (16) .83 (21) 45 164 MP-1622-SPC
21 .83 (21) 1.02 (26) 55 164 MP-2127-SPC
26 1.02 (26) 1.26 (32) 70 82 MP-2633-SPC
35 1.38 (35) 1.61 (41) 80 82 MP-3542-SPC
40 1.57 (40) 1.81 (46) 90 82 MP-4047-SPC
51 2.01 (51) 2.24 (57) 90 82 MP-5158-SPC
12
Dimensions and specifications may be changed without prior notice
