New Strain Relief Catalog available!
- New products
- Detailed drawings
- Applications
- Technical information (NEMA & IP Ratings, thread specs etc.)

Request your catalog today!

THE EXCLUSIVE IMPORTER OF

WE PROVIDE CUSTOMERS WITH CABLE MANAGEMENT SOLUTIONS!

-Quantity Discounts!

-No Minimum Orders!

-Same Day Shipping!

-Blanket Orders!

-Quick and Friendly Service!

-All Major Credit Cards!

Liquid Tight Strain Relief Fittings / Cord Grips / Cable Glands

Nylon Strain Relief Fittings / Cord Grips / Cable Glands

Nylon Fittings
Standard, Elongated Thread, Reduced / Enlarged Body, Snap Elbow, Multi-Hole, Romex® - Flat Cable Insert, High Performance w/ Clamp (Nylon/Aluminum)

Nickel Plated Brass Strain Relief Fittings / Cord Grips / Cable Glands

Nickel Plated Brass Fittings
Standard, Elongated Thread, Snap Elbow, EMI/ RFI Standard & Feed-Through, Multi-Hole, Mini Wadi (Smallest Cable O.D.), Wadi XL (Largest Cable O.D.),High Performance w/ Clamp

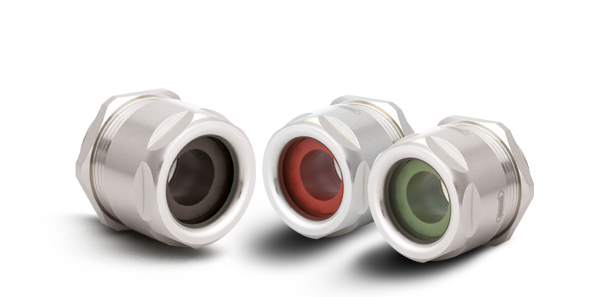

PVDF & Stainless Steel Strain Relief Fittings / Cord Grips / Cable Glands

PVDF & Stainless Steel Fittings
PVDF: Teflon or Nickel Plated Brass, w/ Viton® Insert, Standard or Elongated Thread
Stainless Steel: Standard 304 - High Performance/ High & Low Temp./ Corrosion Resistant (316 INOX Stainless Steel available on request)

Unique Features & Benefits of our Liquid Tight Strain Relief
Strain Relief Cross Section

1. Pull-out - Protection: Overlapping clamping splines prevent form seal from pulling out
2. Submersible: Patented recess provides extra protection NEMA 4x and 6 (IP 68) at 150 PSIG (10 bar)
3. Rugged Construction: Rugged lead screw results in a dependable transmission of force between body and nut
4. Molded O-Ring Groove: Provides a concentric liquid tight seal between body and housing
5. V0 Rated & Non-Corrosive

Strain Relief Fittings for Hazardous Locations

These fittings are labeled and approved to withstand the required needs of a combustible environment. Our goal is to prevent unnecessary damage in hazardous locations.
Materials: Nylon, Nickel Plated Brass, PVDF (chemical resistant and suitable for use under extreme temperatures) & Stainless Steel.
Threads: NPT, Metric & PG. NEMA 4x (IP 67) and 6 (IP 68/69K)
Approvals: RoHS, Deca BDE, UL, CSA, VDE, CE, EEx e, ATEX, German Lloyd
Accessories: Hole Plugs, Hex Plugs, Reducer

Strain Relief Fittings in all popular thread types and sizes for standard applications in hazardous location according to EN 50014, EN 50018 and EN 50019.

• Machine, apparatus and plant equipment
• Measuring control and feedback systems
• Control cabinets
• Railroad cars and vehicles
• Industrial installations
• Marine
• Off-shore

and in all installations where excellent performance, fire resistance and no twisting or torquing of the cable are critical.

Circular Connectors
Sizes: M16, M23, M27, M40
Configurations: Signal (3-28 pole) & Power (6 & 8 pole)
Types: Push-Pull (Quick Disconnect), Straight, Elbow, Panel Mount, Single Hole & Rotatable Elbow, RJ45 - Industrial Ethernet, Profinet, Over-molded Cordsets, Standard/EMI Ready.
Materials: Nickel Plated Brass, Stainless Steel and Aluminum.
Approvals: RoHS, Deca BDE, UR, UL, CSA, TÜV, etc.

Unique Features & Benefits of our Circular Connectors

1. Flexible EMI-O-Ring: reliable EMI protection for light and heavy braided shields
2. Euro-Lock® Solution: secures the few manageable parts, no tools required
3. Easy Cable Assembly & Shielding: possible in a single operation, trimming of braided shield not necessary for insertion into connector housing
4. Strain Relief Insert: w/ four fingers, secured in a recess, prevents cable rotation
5. Versatility of Connectors: fewer parts make assembly and wiring cost effective
6. Flexibility due to modularity: male and female contact inserts work with all different style M23 Power Connectors

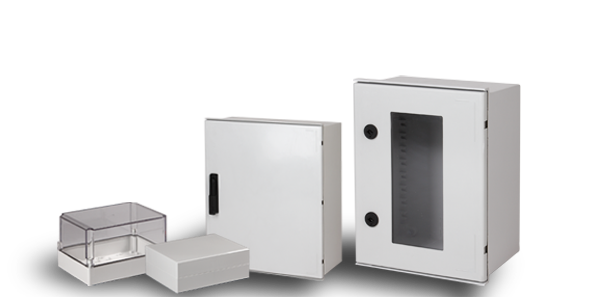

Industrial Enclosures

Materials: Polycarbonate, ABS (Acryl-Butadiene-Styrene), Aluminum, Steel/Stainless Steel and Polyester.
Types: Gray or Transparent Lids, available with Hinges and Latches, Plain Walls or Knockouts.
Approvals: RoHS, Deca BDE, UL, CSA, TUV and CE.
Modular, Expandable, UV and Impact Resistant, NEMA 4, 4x (IP 66/67).

We offer complete Enclosure Solutions

Industrial Enclosure Applications:
• Wi-Fi / Cable Television
• Satellite Television Wires
• UV Equipment
• Electrical Wires
• Industrial Printing Machines
• Irrigation Wiring
• Housing for Computer Systems
• Packaging Systems, etc.

We Think Outside the Box!
Our Enclosures can be equipped with Strain Relief Fittings, Circular Connectors or Conduit Fittings. Other customization options like cutting & drilling are also available.

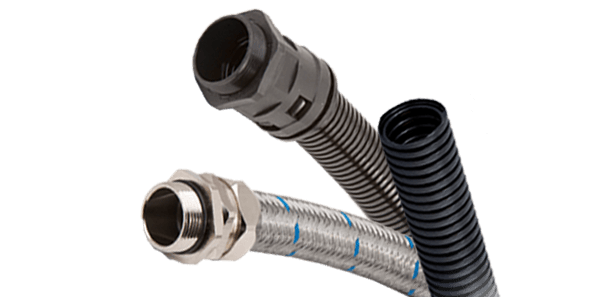

Conduit System

High Pull-Out Resistance, Robust Performance, Long Life Expectancy, Fastest/ Easy installation, No Tools required!
Fittings: Push-In, Turn-to-Seal, Snapclic DUO (Nylon or Nickel Plated Brass), Double-Seal, Flange/Bulkhead
Conduit: Standard and Super Flex Corrugated Conduit
Straight and Right Angle Snap Elbow.
Accessories: Snap-In Mounting Brackets. NEMA 4 (IP 54/65)
Approvals: RoHS, Deca BDE, UR, German Lloyd, CE, etc.

Advantage of using our Conduit System: Individual conductors are given sufficient flexibility, this prevents tension stress. And the connections provide security against penetration of fluids.

Adapters, Enlargers & Reducers

Convert, Increase or Decrease your thread size with our newest product line.
Threads: NPT, Metric and PG.
Materials: Black or Gray Nylon, Nickel Plated Brass, Aluminum, Stainless Steel.
Approvals: RoHS, Deca BDE, CE, EEe x, ATEX, etc.

Hazardous / Explosive proof versions available.

Adapter, Enlarger & Reducer Applications:

• International machine builder & equipment
• Import / Export oriented projects
• Adapting to domestic markets

Accessories

Locking Nuts: Black & Gray Nylon, Nickel Plated Brass, Zinc Plated Steel, EMI (w/ Cutting Edges)
O-Rings: Buna-N, Viton®, Silicone
Seal Rings: Polyethylene / Fiber-reinforced Plastic
Hole Plugs: Dome, Hex, Nylon, Nickel Plated Brass
Inserts: Standard, Reduced, Multi-Hole, Romex®

Other Accessories

• Ratchet & Socket Wrenches
• Cable Clamps, etc.

We offer all the tools you need to complete your installation on the spot!

If you don't see the contents of this box & the box below, you currently have Javascript turned off in your browser. To enable or disable JavaScript:

From the Tools menu, or the Tools drop-down in the upper right, choose Internet Options... .
Click the Security tab.
Click Custom Level... .
Scroll to the "Scripting" section of the list. Click Disable or Enable.
Close and restart your browser.

M16 Twintus Dual Signal & Power Connector

This new low profile and low cost M16 Connector solution meets IP67 requirements for small AC or DC motors but also existing M23 applications (retrofit with M23 footprint).

View product information

2D/3D CAD Drawings
Most of our standard Strain Relief, Conduit & Accessories are available for CAD Download. The links for each download can be found on detailed product pages.
Circular Connectors & Enclosures drawings are available on request.

provides cable products at competitive prices with exemplary customer service. Inventory in Excess of $25 Million allows the immediate shipment of almost all standard cable types and sizes.
	Cables, Wires & Accessories: Domestic & Imported Exclusive North American importer of HELUKABEL®. Approvals: RoHS, UL, CSA, Harmonized & CE. We offer cables for Power, Control, High/Low Temp., Hi-Flex, Robotic, Track, Servo, VFD, Composite, Ribbon, Data(CAT), Single Conductor, Etc!
	Plastic Enclosures: Indoor / Outdoor NEMA 4x Exclusive importer of HENSEL ENCLOSURES. Industrial Strength, UV & Impact Resistant, Modular Expandable. Opaque/Transparent covers. Hinged! Exceptional Value! Accessories: DIN rails, Mounting plates, Terminal blocks, Hole plugs, Etc. International and Domestic Approvals.
	Aluminum Enclosures: Custom Customize your own Control Solution Device with the following Cord Grips, Momentary Push Buttons, Etc. NEMA 4, 4x (IP66) We offer 1, 2 & 3 Button Solutions. Assembly at one low price.
	Pneumatics: Fittings, Flow Control Valves & Accessories CAMOZZI Pneumatic Automation Components. Our fittings range includes Nickel Plated Brass & Composite fittings with Metric or NPTF Threads, the patented & longstanding Pro-Fit® system, High Pressure Dual Seal fittings, etc.. The range of Valves includes flow regulators, quick release valves, flow control valves, basic logic functions and silencers with different specifications in order to meet most requirements.
