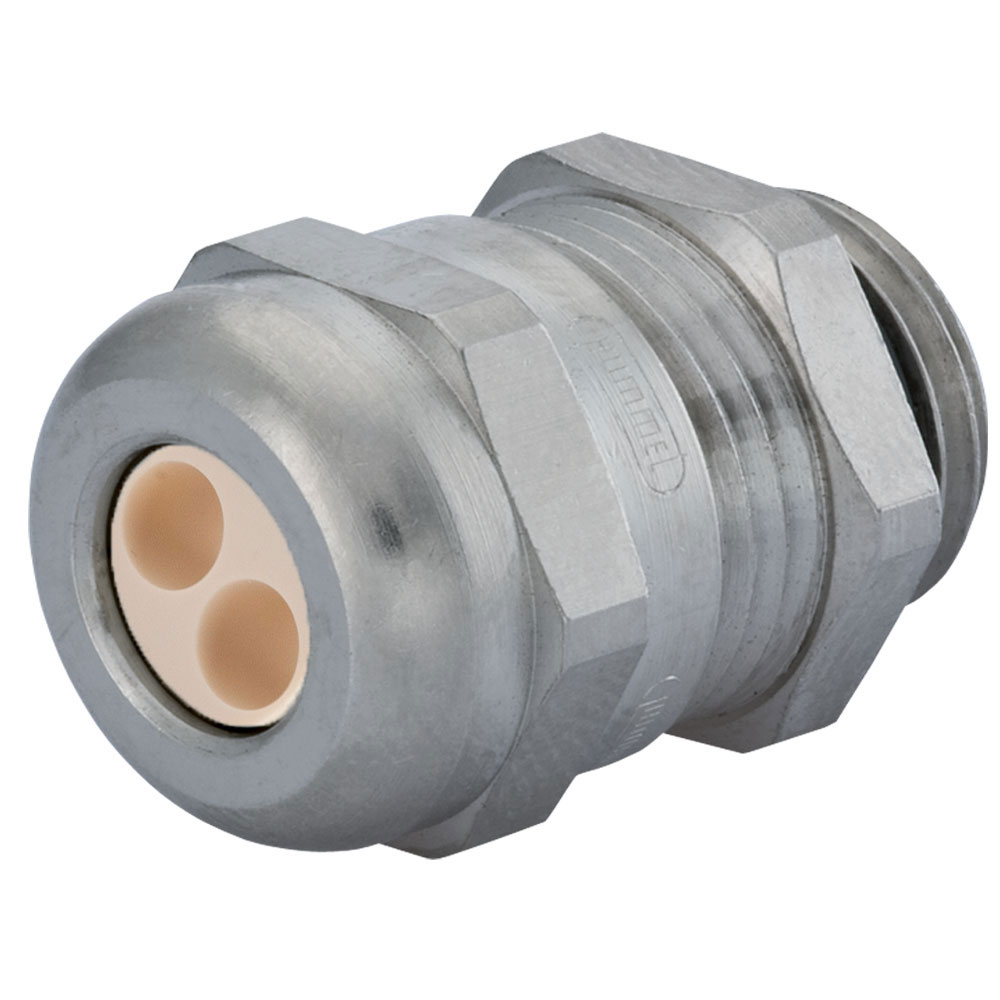

M20 x 1.5 Nickel Plated Brass Multi-Hole (2 Hole) Dome Cable Gland | Cord Grip | Strain Relief CD20M4-BR

Sealcon #: CD20M4-BR
Color: Nickel
Material: Nickel Plated Brass
Number of Holes: 2
Diameter of Holes: 0.2" (5 mm)
Insert Part Number: 1.089.1303.19
Hummel: HSK-K-Multi
Hummel #: 1697200350

Locking Nut Sold Separately

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Body Length (B)0.91" (23 mm)
Thread Length (D)0.24" (6 mm)
Wrench Flat (F1)0.87" (22 mm)
PDF DOWNLOADS
Catalog Page
  • Features

    • Flame protected – V0 Rated according to UL 94
    • Halogen- and Phosphorous free materials
    • Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
    • Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
    • Durable – Rugged Construction
    • Environmentally compliant – RoHS & Deca BDE

    This Nickel Plated Brass Liquid Tight Strain Relief Fitting with Multi-Hole Insert will provide your application with a product made of exceptional quality.

    The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.

    Kinking and chafing of the cable is eliminated with use of the Flex Nut.



  • Pressure Rating
    IP 65 / IP 68 10 bar possible with ideal fit
    Materials
    • Fittings: Nickel Plated Brass
    • Form Seal: Elastomer
    • Optional ORing: Buna-N, FPM or Silicone
    • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
    Operating Temperature
    -40C° to 100C° (-40°F to 212°F)
