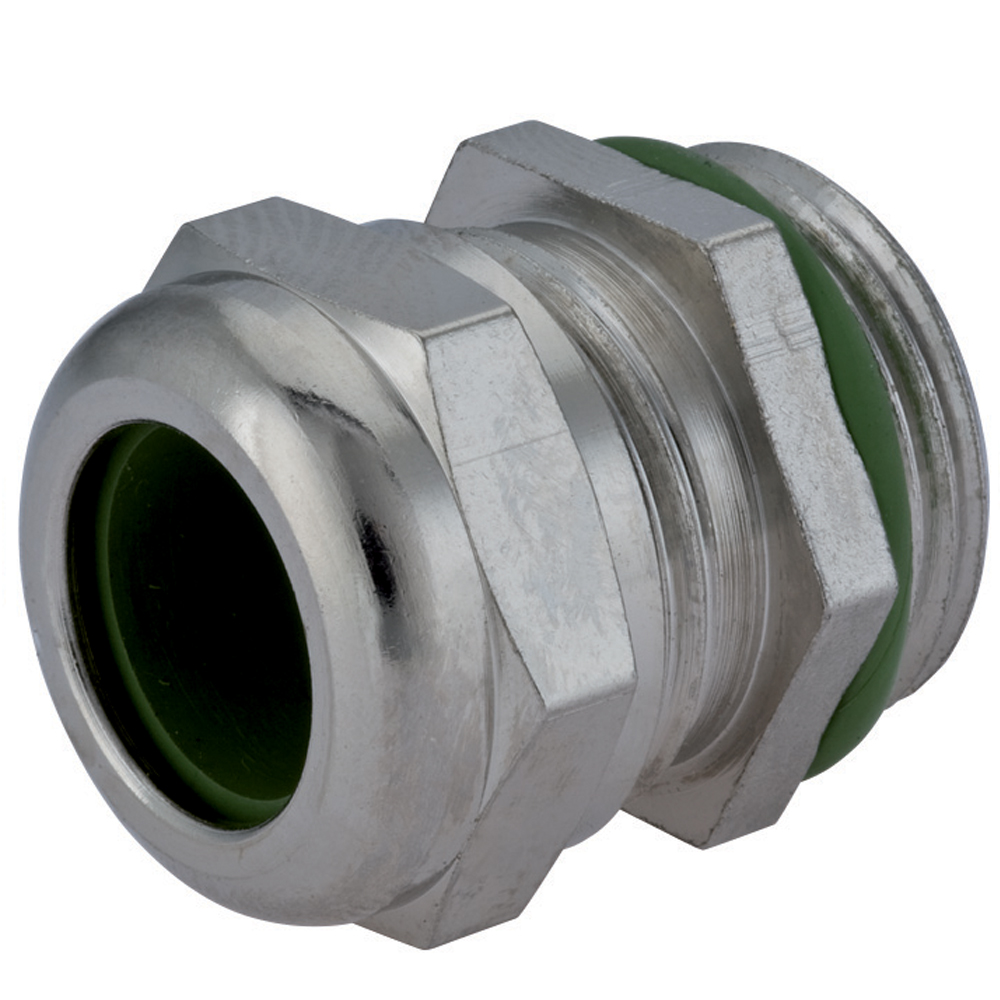

Sealcon #: CD20MA-6V
Cable Range: 0.39" - 0.55" (10 to 14 mm)
Material: 316L Stainless Steel 1.4404
Hummel: HSK-INOX-PVDF (1.4404)
Hummel #: 1.676.2000.50
Locking Nut Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A) | 0.79" (20 mm) |
---|---|
Body Length (B) | 0.91" (23 mm) |
Thread Length (D) | 0.24" (6 mm) |
Wrench Flat (F1) | 0.94" (24 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
-
Features
- Liquid Tight – Submersible to 300 ft. – Type Nema 4x & 6 (IP68 / IP 69 K)
- Highest Pressure Rating – Patented form seal guarantees 150 psig
(10 bar) - Flame protected – V0 Rated according to UL 94Halogen- and Phosphorous free materials
- Safety – Ratchet to prevent Dome from coming loose under vibration
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE
These Stainless Steel Strain Relief Fittings with M20 x 1.5 Thread have many applications, where the environment dictates a corrosion proof solution. Typical applications include: Off-Shore rigs, ships, chemical plants, food processing, wherever a rugged liquid tight strain relief fitting is required!
This Fitting will provide your application with a product made of exceptional quality.
-
Pressure RatingMaterials
150 PSIG (10 BAR) Type Nema 4x & 6 (Submersible) - IP 68 / IP 69 K- Fittings: 316L Stainless Steel 1.4404
- Form Seal: Buna-N or FPM
- Optional ORing: Buna-N, FKM or Silicone
Operating Temperature
-35C° to 150C° (-31°F to 302°F)
*CE and CSA Apply to Standard Fitting (ONLY)
*Sizes 3/8” NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Nylon and Nickel Plated Brass have UR (ONLY) APPROVALS
- Restriction of Hazardous Substances in Electrical and Electronic Equipment
- Deca-Bromo-Diphenyl-Ether Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals
- Waste Electrical and Electronic Equipment Directive
- cULus
- UL approval UL (Listed Underwriters Laboratories)
- EAC
- UR (Recognized Underwriters Laboratories)
- German Lloyd
- VDE approval VDE (Association of German Electrical Engineers)
