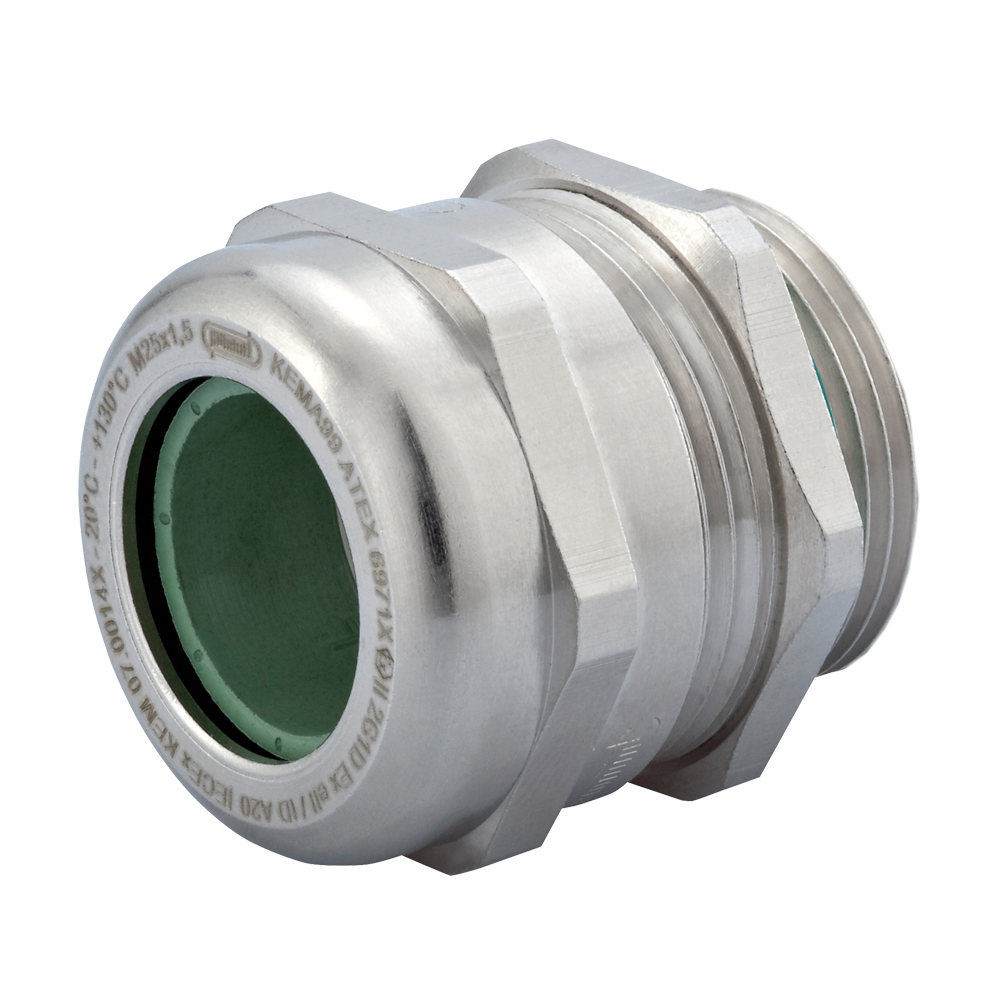

Sealcon #: CD32MA-RX
Cable Range: 0.79" - 0.98" (20 to 25 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-M-PVDF-Ex
Hummel #: 1.660.3200.50
Locking Nut Sold Separately. with FKM Insert, FKM O-Ring.
Cable gland made of nickel plated brass for chemical and high temperature applications.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 1.26" (32 mm) |
|---|---|
| Body Length (B) | 1.22" (31 mm) |
| Thread Length (D) | 0.31" (8 mm) |
| Wrench Flat (F1) | 1.57" (40 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page-
Materials
- Form Seal: FPM
Operating Temperature
-20C° to 130C° (-4°F to 266°F) APPROVALS
ATEX - ATmosphere Explosible
CE approval CE (Certified European Approval)
CSA approval CSA (Canadian Standard Association)
German Lloyd
IECEx
PCT Approval
UL approval UL (Listed Underwriters Laboratories)
UR (Recognized Underwriters Laboratories)
VDE approval VDE (Association of German Electrical Engineers)
