Stainless Steel Connectors can be used in many applications, where the environment dedicates a corrosion proof solution.
M23 Power Connector Features:
Simple and quick modular structure
One step cable assembly with optional EMI shielding
Crimp contacts machined
Patented Euro-Lock
No tools needed to insert and extract contacts
SLS (Spring Loaded Sockets) for vibrating environments
Pressure Rating:
Approvals:
IP 67 / IP 69 K per EN 60 529 (connected)
Mechanical Data:
Housing Surface:
Stainless Steel
Contacts:
Gold-plated Brass Alloy
Type of Contacts:
Crimp
Number of Contacts:
6 & 8
Amp Rating:
8 - 28 A
Voltage Rating:
300 - 800 V
Cable OD:
.28" - .67" (7 - 17 mm)
Wire Gauge:
24 - 12 AWG
Operating Temperature:
- 40°C to 125°C (- 40°F to 257°F)
Accessories for M23 Stainless Steel Connectors
Description
Part Number
Plastic
Protective Cap for Connectors with
Male thread
7.000.900.102 Add to Quote
Stainless
Steel Protective Cap for Connectors
with Male thread Optional: with rope
7.010.904.102 Add to Quote

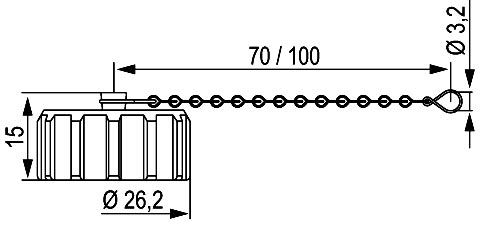

Stainless
Steel Protective Cap for Male
Connectors
with Rope 100 mm
7.010.9S4.102 Add to Quote
Crimps Contact
Sizes Between - 0,08mm² to 2,5mm² Crimp Tool for manual crimping
of machined crimp contacts (Data Only) Click
Here- For Crimp Contact Settings
7.000.900.904 Add to Quote
Crimps Contact
Sizes Between - 0,14mm² to 6,0mm² Crimp Tool for manual crimping
of machined crimp contacts (Power & Data
Contact) Click
Here- For Crimp Contact Settings
