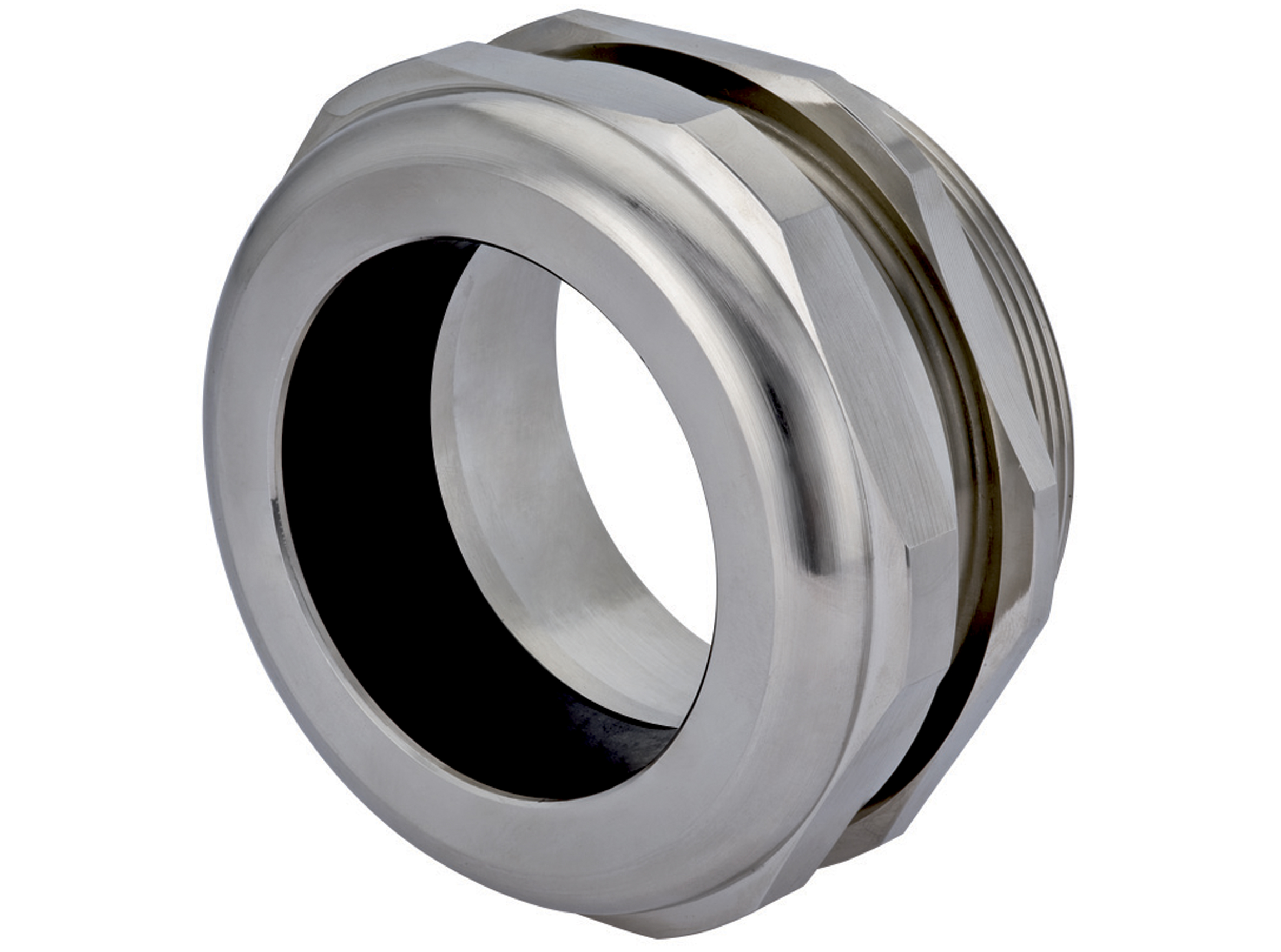

Sealcon #: CX63MA-BR
Cable Range: 1.89" - 2.17" (48 to 55 mm)
Color: Nickel Plated Brass
Material: Nickel Plated Brass
Hummel: HSK-XL
Hummel #: 1.106.6375.50
Locking Nut Sold Separately
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 2.48" (63 mm) |
|---|---|
| Body Length (B) | 1.65" (42 mm) |
| Thread Length (D) | 0.39" (10 mm) |
| Wrench Flat (F1) | 2.95" (75 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page-
Features
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE
This Nickel Plated Brass Strain Relief with M63 x 1.5 Thread will provide your application with a product made of exceptional quality.
-
Pressure RatingMaterials
IP 68- Fittings: Nickel Plated Brass
- Form Seal: Thermoplastic Elastomer (TPE)
- Optional Seal Ring: Silicone upon request
Operating Temperature
-20C° to 100C° (-4°F to 212°F)
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
