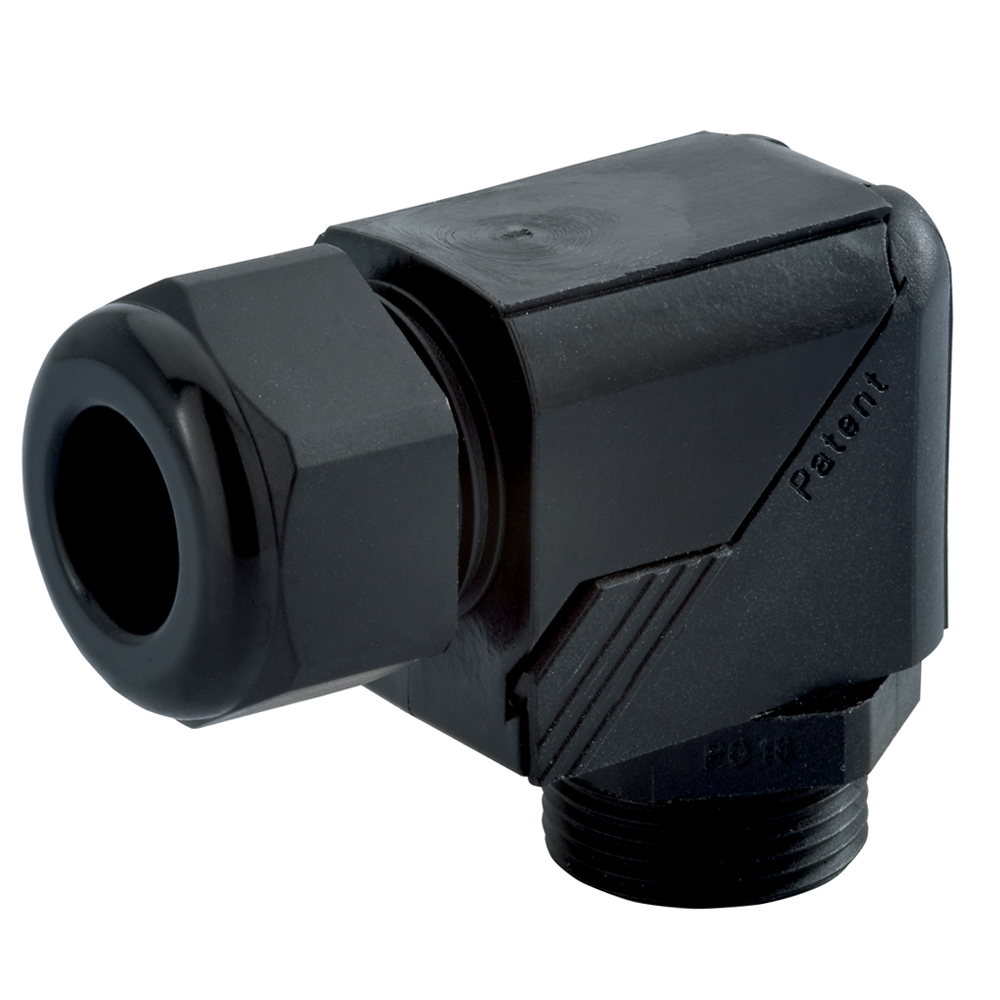

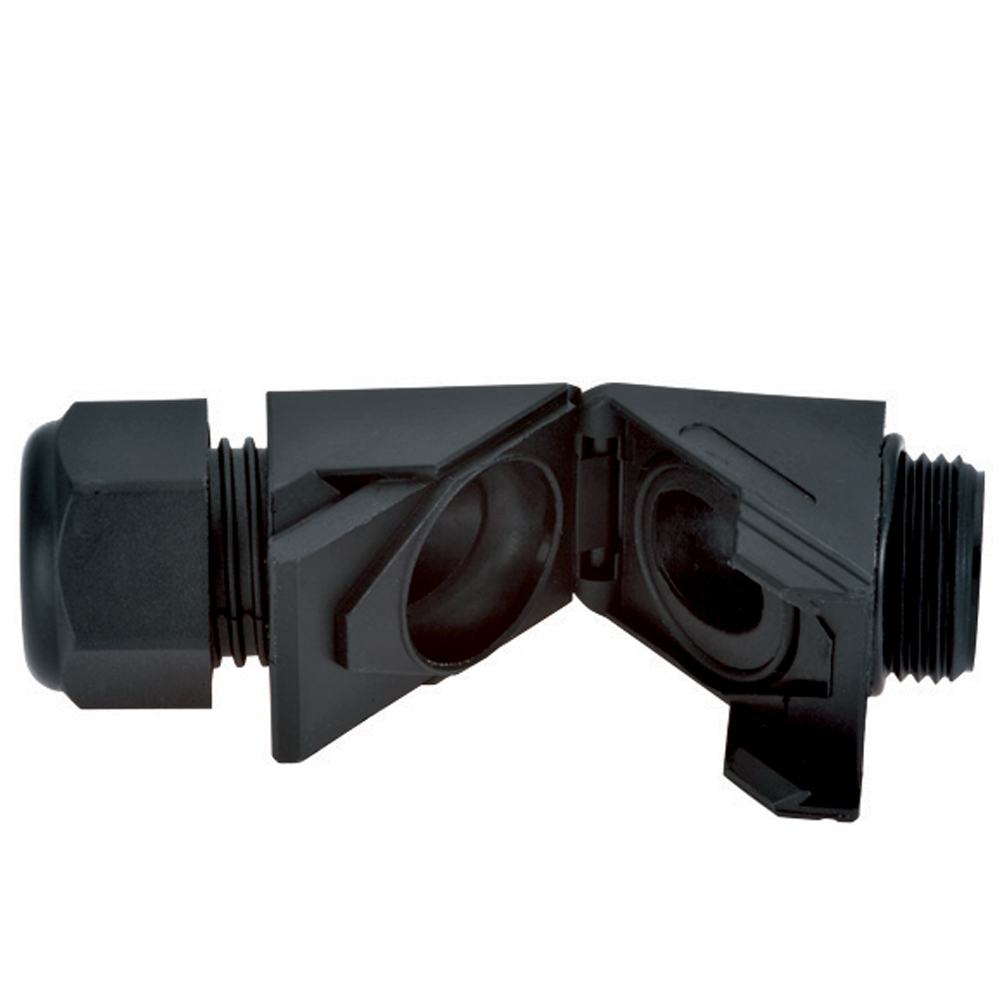

M20 x 1.5 Black Nylon Standard Dome Snap Elbow Cable Gland | Cord Grip | Strain Relief ED20MA-BK

Sealcon #: ED20MA-BK
Cable Range: 0.24" - 0.47" (6 to 12 mm)
Color: Black
Hummel #: 1.313.2001.50
Hummel: HSK-W
Material: Nylon

Locking Nut Sold Separately

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A)0.79" (20 mm)
Body Length (B)2.24" (57 mm)
Thread Length (D)0.35" (9 mm)
Wrench Flat (F1)0.94" (24 mm)
Suggested Clearance Hole for Non-Threaded Mounting
  • Features

    • Flame protected – V0 Rated according to UL 94Halogen- and Phosphorous free materials
    • Safety – Ratchet to prevent Dome from coming loose under vibration
    • Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
    • Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
    • Durable – Rugged Construction
    • Environmentally compliant – RoHS & Deca BDE

    This Nylon Strain Relief (Cable Gland) with M20 x 1.5 Thread will provide your application with a product made of exceptional quality.

    Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.

    The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.

    Kinking and chafing of the cable is eliminated with use of the Flex Nut.



  • Pressure Rating
    150 PSIG (10 BAR) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K
    Materials
    • Fittings: Nylon 6/6
    • Form Seal: Buna-N
    • Optional ORing: Buna-N, FPM or Silicone
    • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
    Operating Temperature
    -40C° to 100C° (-40°F to 212°F)
    Available Colors
    Black (RAL 9005);Gray (RAL 7035)

    Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant.

    Buna-N O-Ring Included.
