Insert 20-pole (4 x 2+12) Contacts & Configurations M23 PoE Inserts

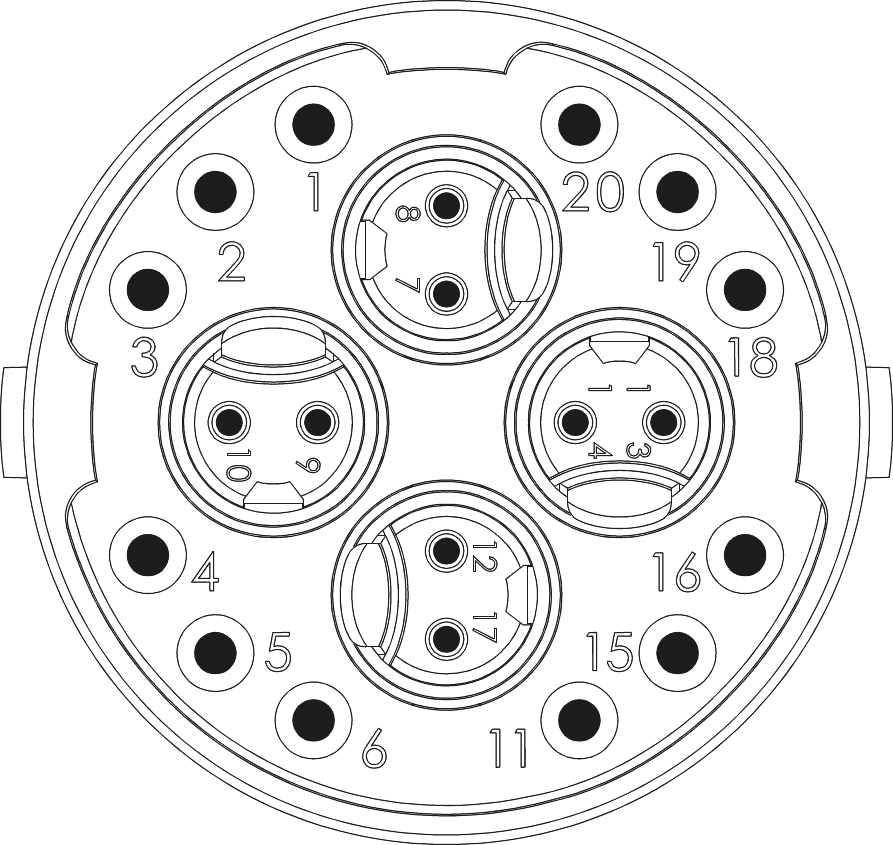

Insert Pin Mating View
Insert Socket Mating View
| Part Number | Hummel Pinout | Number of Poles | Required Contacts | Crimp Range | Type of Contact | Add To Quote | |
|---|---|---|---|---|---|---|---|
| S7.001.920.108 | Insert 20-pole (4 x 2) + 12 | 8 x 0.6 mm / 12 x 1 mm |
| ||||
| S7.003.920.101 | Insert 20-pole (4 x 2) + 12 |
| |||||
| S7.003.920.102 | Insert 20-pole (4 x 2) + 12 |
| |||||
| S7.003.920.107 | Insert 20-pole (4x2)+12 | 8 x 0.6 mm 12 x 1 mm |
| ||||
| S7.003.920.108 | Insert 20-pole (4x2)+12 | 8 x 0.6 mm 12 x 1 mm |
|
