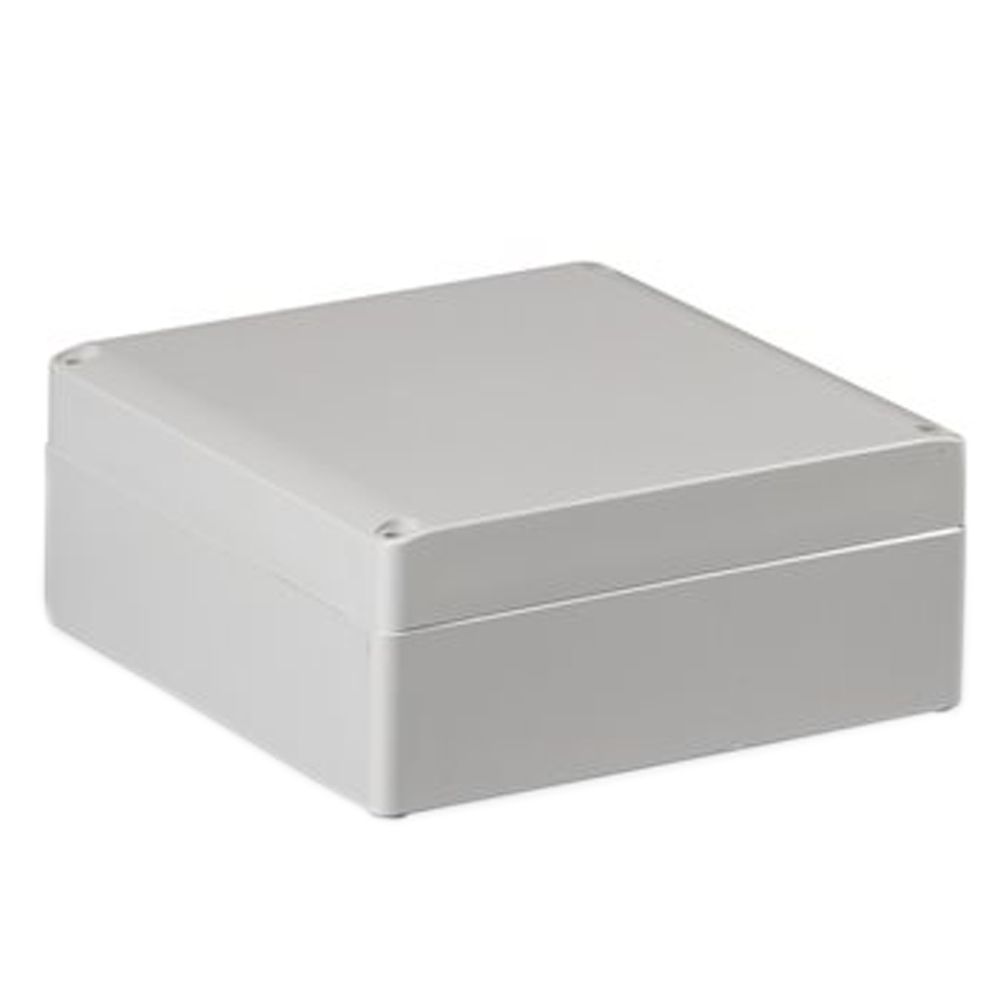

Sealcon #: S3120055628GU
Size: L6.88" x W6.88" x D2.95" (175 x 175 x 75mm)
Material: Polycarbonate
Ensto Enclosures: Series S Enclosure
Polycarbonate Enclosure with Plain Sides and Gray Cover.
Assembly and machining services of your enclosures are available on request.
Drawings with additional dimensions can be furnished on request.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Features
Series S Enclosure in brief:
- Available with plain sides or knockouts
- Available in 36 sizes, two base depths (25 and 50 mm) and 5 different cover heights
- Cover and cover screws equipped with sealing holes
- Slots in the base for printed circuit boards
Contents of the product package:
- Enclosure base
- Cover
- Cover screws
- Mounting screws
-
UL File no:
E189312
UL category:
NITW, NITW7
Environmental type (UL):
4, 4x, 12, 13, 6
Environmental type (cUL):
4, 4x, 12, 6
Outdoor suitability:
UL 746C (f1) rated material
Insulation:
Class ||Impact
IK08 (-25°C...+35°C)Operating TemperatureFire Resistance
-40C° to 80C° (-40°F to 176°F)
UL746C 5V
CE approval CE (Certified European Approval)
Restriction of Hazardous Substances in Electrical and Electronic Equipment
UL approval UL (Listed Underwriters Laboratories)
cULus
German Lloyd
