Sealcon #: S7.001.985.118
M16 Signal Connector Insert Configurations
Hummel #: 7.001.985.118
M16 Connector 12+3-Pole Socket (Female) Insert with dip solder contacts length 17mm

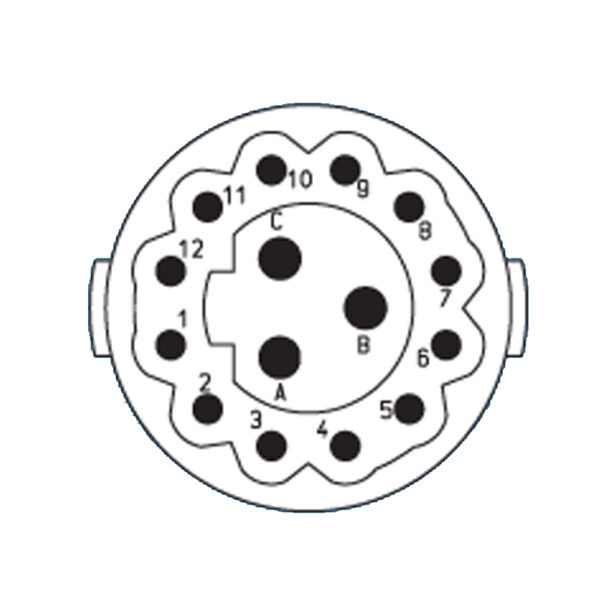

Pole picture: 12 + 3
Temperature range: -40°C to +125°C
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
-
Number of Positions: 12 + 3
Number of Contacts: 12 | 3
Contact Ø (mm): 0.8 | 1.25
AWG [mm2]: 0.08 - 0.34 | 0.34 - 1.5
Nominal Current [A]: 3 | 10
Nominal Voltage [V~]: 24 | 60
Test Voltage (Breakdown Voltage) [V~]: 1500 | 2500
Insulation Resistance [MΩ]: > 1010
Max. Contact Resistance [mΩ]: 3 | 3
