Characteristic of connection: PCB assembly

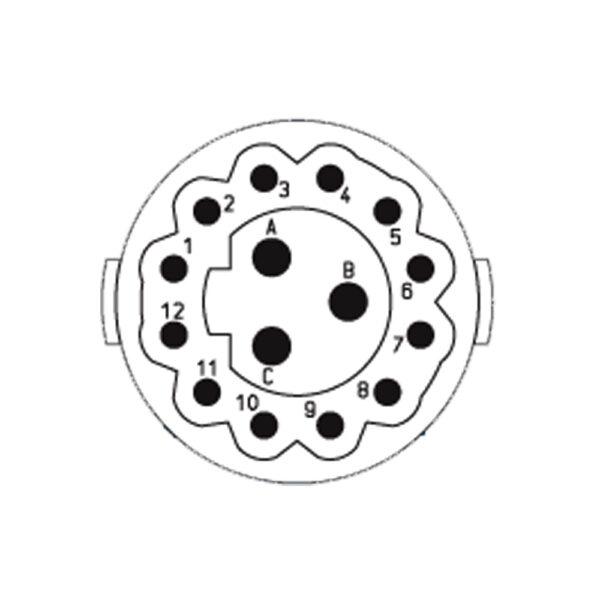

Number of Poles: 12 + 3

Required Contacts: Signal 12x │ Power 3x

Type of Contact: Pin

Dip solder contacts length: 10 mm

Material insulating body: PA 6, PBT

Contact Ø: Signal 0.8 mm │ Power 1.25 mm

Nominal current signal: 3 A

Nominal current power: 10 A

Nominal voltage at degree of pollution 3 signal: 24 V~

Nominal voltage at degree of pollution 3 power: 60 V~

Test voltage signal: 400 V~

Test voltage power: 840 V~

Insulation resistance: Signal > 10⁸ Ω │ Power > 10⁸ Ω

Max. contact resistance: Signal 3 mΩ

Temperature range: -40°C to +125°C

Degree of Protection: 3

Flammability: V-0 (UL 94)
