Insert 12-Pole Contacts & Configurations M23 Hybrid Inserts | S7.084.944.101 | 7084944101

Sealcon #: S7.084.944.101

M23 Hybrid Connector Insert Configurations

Hummel #: 7.084.944.101

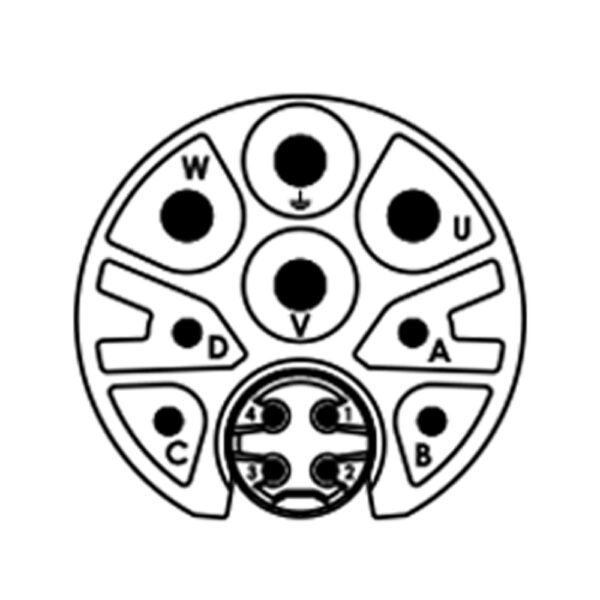

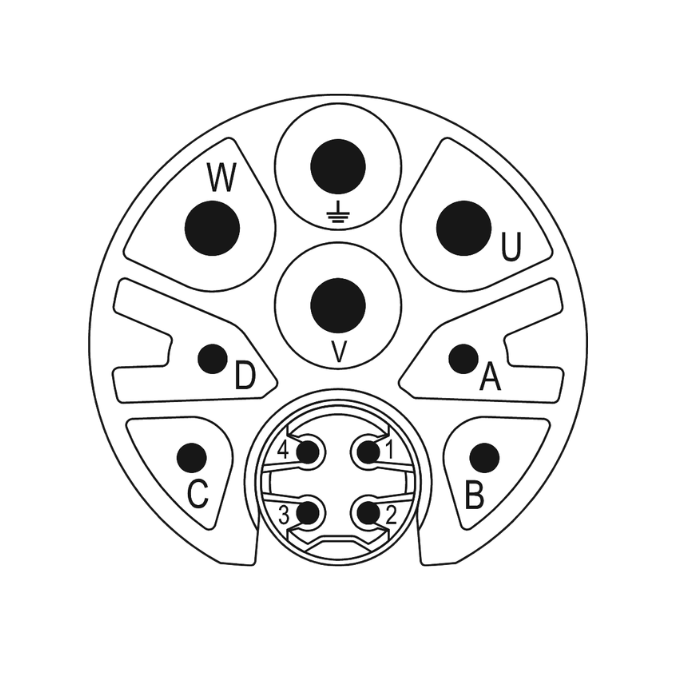

Pole picture: 4 + 4 + 3 + PE
Temperature range: -40°C to +125°C

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

PDF DOWNLOADS

Material insulating body: PA 6, PBT

Contact Ø: 0.6 mm │ 1 mm │ 2 mm

Nominal current data: 2 A

Nominal current signal: 8 A

Nominal current power: 28 A

Nominal voltage at degree of pollution 3 data: 60 V~

Nominal voltage at degree of pollution 3 signal: 300 V~

Nominal voltage at degree of pollution 3 power: 600 V~

Temperature range: -40°C to +125°C

Degree of Protection: 3

Minimum mating cycles: > 500

Part Number	Add to Quote	Type of Contact	Crimp Range
S7.010.980.643	Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 1 mm Machined	0.14 - 1 mm² AWG 26 - AWG 17
S7.010.941.001	Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 1 mm Machined	0.14 - 1 mm² AWG 26 - AWG 17
S7.010.941.021	Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 1 mm Machined	0.75 - 1.5 mm² AWG 18 - AWG 16
S7.010.942.001	Add to Quote This product is already in your quote request list. View Quote Request	Crimp pin 2mm, machined	0.75 - 2.5 mm² AWG 18 - AWG 14
S7.010.942.011	Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 2 mm Machined	2.5 - 4 mm² AWG 14 - AWG 12
S7.010.942.001	Add to Quote This product is already in your quote request list. View Quote Request	Crimp pin 2mm, machined	0.75 - 2.5 mm² AWG 18 - AWG 14
S7.010.942.011	Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 2 mm Machined	2.5 - 4 mm² AWG 14 - AWG 12

APPROVALS
- VDE approval VDE (Association of German Electrical Engineers)
- UL approval UL (Listed Underwriters Laboratories)
