Sealcon #: S7.084.944.102
M23 Hybird Connector Insert Configurations
Hummel #: 7.084.944.102

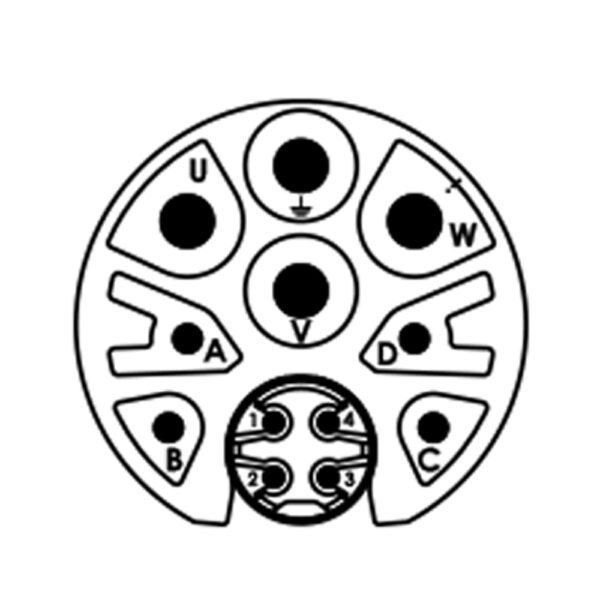

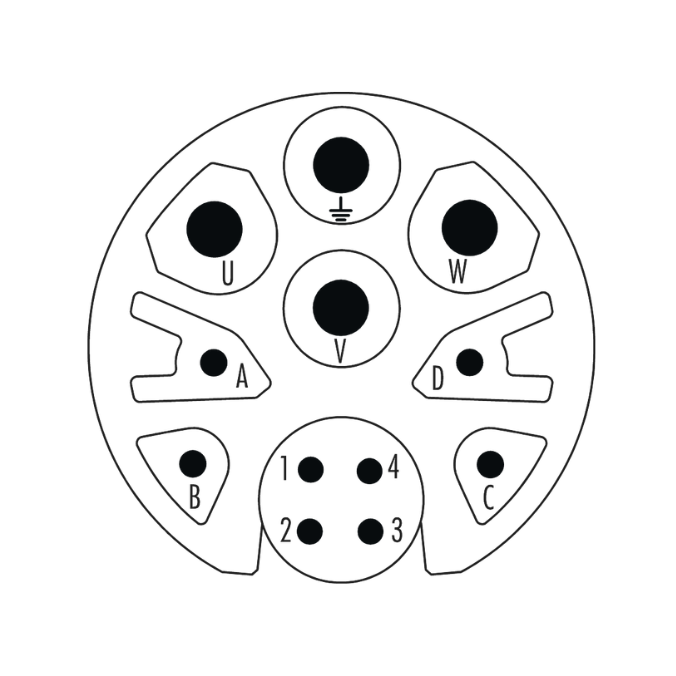

Pole picture: 4 + 4 + 3 + PE
Temperature range: -40°C to +125°C
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Data Sheet-
Material insulating body: PA 6, PBT
Contact Ø: 0.6 mm │ 1 mm │ 2 mm
Nominal current data: 2 A
Nominal current signal: 8 A
Nominal current power: 28 A
Nominal voltage at degree of pollution 3 data: 60 V~
Nominal voltage at degree of pollution 3 signal: 300 V~
Nominal voltage at degree of pollution 3 power: 600 V~
Temperature range: -40°C to +125°C
Degree of Protection: 3
Minimum mating cycles: > 500 CONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range S7.010.980.602
Crimp Socket 0.6 mm Machined 0.08 mm2- 0.34 mm2 S7.010.941.002
Crimp Socket 1 mm Machined 0.14 - 1 mm2 AWG 26 - AWG 17 S7.010.941.022
Crimp Socket 1 mm Machined 0.75 - 1.5 mm2 AWG 18 - AWG 16 S7.010.942.002
Crimp Socket 2 mm Machined 0.75 - 2.5 mm2 AWG 18 - AWG 14 S7.010.942.012
Crimp Socket 2 mm Machined 2.5 mm2- 4.0 mm2AWG 14 - AWG 12 S7.010.942.002 Crimp Socket 2 mm Machined 0.75 - 2.5 mm2 AWG 18 - AWG 14 S7.010.942.012 Crimp Socket 2 mm Machined 2.5 mm2- 4.0 mm2AWG 14 - AWG 12
