M23 Power Straight Connector, EMI, Female Thread Standard Threaded TWILOCK | S7.556.500.000

Sealcon #: S7.556.500.000
(housing only)

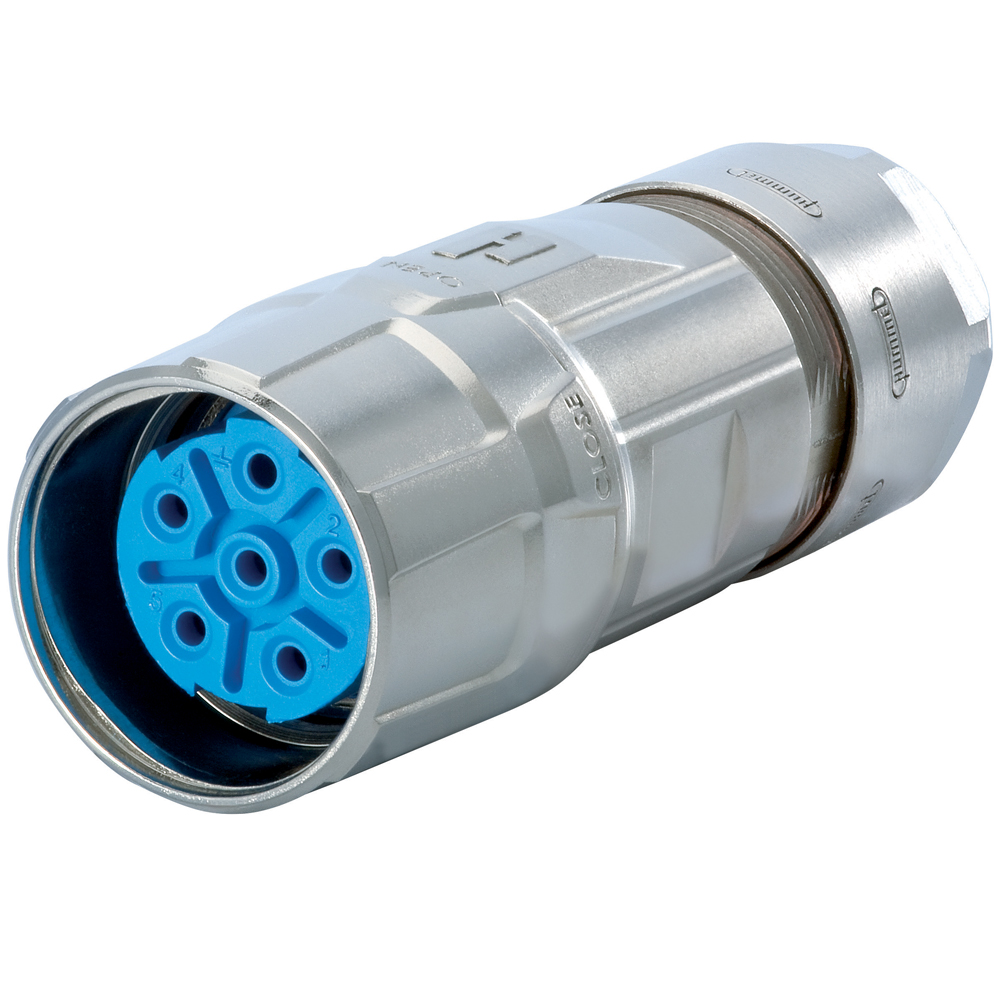

M23 TWILOCK Power Straight Connector, EMI
Cable Range: .24" - .47" (7 - 12 mm)
Hummel: Straight Connector, Female Thread, M23 TWILOCK
Hummel #: 7.556.500.000

Inserts & Contacts sold separately.
The housings of M23 Hybrid and M23 Power are identical due to our modularity.
Electrical data depend on the contact insert
Mates with TWILOCK system

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
  • Features

    • Quick connecting style
    • High protection rate
    • Easy connection/disconnection even under tight space conditions
    • This unique connector features a panel-mounted Dual Function Connector suitable for threaded and push-pull (quick disconnect) connection
    • Initially the connector can be specified with the more economical threaded connector and later converted to the more user-friendly push-pull style
      • These Circular Connectors feature Quick Connect with Patented Polygon Lock, easy handling and exceptional functionality. Multi-functional TWILOCK Connectors are ideal with TWILOCK and Screw Connection.

        TWILOCK has clearly defined Positioning and can be locked with slight rotation from OPEN to CLOSE. A special feature allows use of TWILOCK and screw connection. HUMMEL TWILOCK Connectors guarantee a quick connecting high cycle rate, high protection rate and easy connection/disconnection even under tight space conditions.



  • Pressure Rating: Approvals: RoHS & Deca BDE IP 67 / IP 69 K per EN 60 529 (connected), Type NEMA 4x Mechanical Data: Housing Copper-Zinc alloy (Brass) Housing Surface: Nickel Plated Inserts (for contacts) Nylon 6/6, PBT, Fire protection class V0 Contacts: Nickel and Gold-plated Brass Alloy Type of Contacts: Crimp, Solder, Dip Solder (PCB) Number of Contacts: 6, 7, 9, 12, 16, 17, 19 Amp Rating: 8 - 20 A Voltage Rating: 150 - 300 V Minimum mating cycles: >300 Seal/O-Rings Buna-N standard Optional FPM Operating Temperature: - 40°C to 125°C (- 40°F to 257°F)

  • INSERTS

    Part NumberImageAdd to QuoteNumber of PolesRequired ContactsElectrical Data
    S7.084.910.101
    Insert 10-Pole10 x 1 mmNumber of Positions: 10
    Number of Contacts: 10
    Contact-Ø (mm): 1
    Nominal Current1) [A]: 10
    Nominal Voltage2) [V~] degree of protection 33): 160
    Test Voltage (Breakdown Voltage) 4) [V~]: 2500
    Insulation Resistance [MΩ]: > 1013
    Max. Contact Resistance [mΩ]: 3
    S7.084.943.101
    Insert 4 + 3 + PE4 x 1 mm / 4 x 2 mmNumber of Positions: 4 + 3 + PE
    Number of Contacts: 4 | 4
    Contact-Ø (mm): 1 | 2
    Nominal Current1) [A]: 8 | 28
    Nominal Voltage2) [V~] degree of protection 33): 300 | 600
    Test Voltage (Breakdown Voltage) 4) [V~]: 2500 | 4000
    Insulation Resistance [MΩ]: > 1013
    Max. Contact Resistance [mΩ]: 3
    S7.084.951.101
    Insert-5+PE6 x 2 mmNumber of Positions: 5 + PE
    Number of Contacts: 6
    Contact-Ø (mm): 2
    Nominal Current1) [A]: 28
    Nominal Voltage2) [V~] degree of protection 33): 600
    Test Voltage (Breakdown Voltage) 4) [V~]: 4000
    Insulation Resistance [MΩ]: > 1013
    Max. Contact Resistance [mΩ]: 3

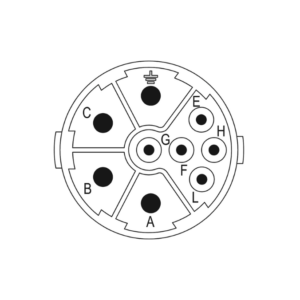

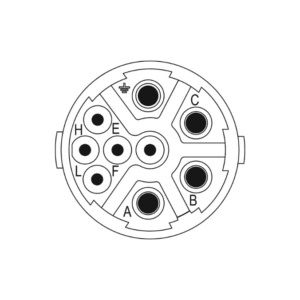

    S7.084.953.101
    Insert 5 + 3 + PE5 x 1 mm + 3 x 2 mm + PEContact Ø signal 2mm
    Contact Ø performance 1 mm
    Signal connection cross section 0.75 – 4 mm²
    Connection cross section power 0.75 – 4 mm²
    Rated current signal 8 A
    Rated current power 28 A
    Rated voltage at pollution level 3 signal 160V~
    Rated voltage at pollution degree 3 performance 600V~
    Test voltage signal 2500V~
    Test voltage performance 4000V~
    Insulation resistance signal > 10^13 Ω
    Insu
    lation resistance performance > 10^13 Ω
    max. contact resistance signal 3 mOhm
    max. contact resistance power 3 mOhm
  • CONTACTS

    Part NumberImageAdd to QuoteType of ContactCrimp Range
    S7.010.941.001
    Crimp Pin 1 mm Machined0.14 - 1 mm2 AWG 26 - AWG 17
    S7.010.941.002
    Crimp Socket 1 mm Machined0.14 - 1 mm2 AWG 26 - AWG 17
    S7.010.941.021
    Crimp Pin 1 mm Machined0.75 - 1.5 mm2 AWG 18 - AWG 16
    S7.010.941.022
    Crimp Socket 1 mm Machined0.75 - 1.5 mm2 AWG 18 - AWG 16
    S7.010.942.001
    Crimp pin 2mm, machined0.75 - 2.5 mm2 AWG 18 - AWG 14
    S7.010.942.002
    Crimp Socket 2 mm Machined0.75 - 2.5 mm2 AWG 18 - AWG 14
    S7.010.942.011
    Crimp Pin 2 mm Machined2.5 - 4 mm2 AWG 14 - AWG 12
    S7.010.942.012
    Crimp Socket 2 mm Machined2.5 mm2- 4.0 mm2AWG 14 - AWG 12
