Sealcon #: S7.556.600.000-H
(housing only)

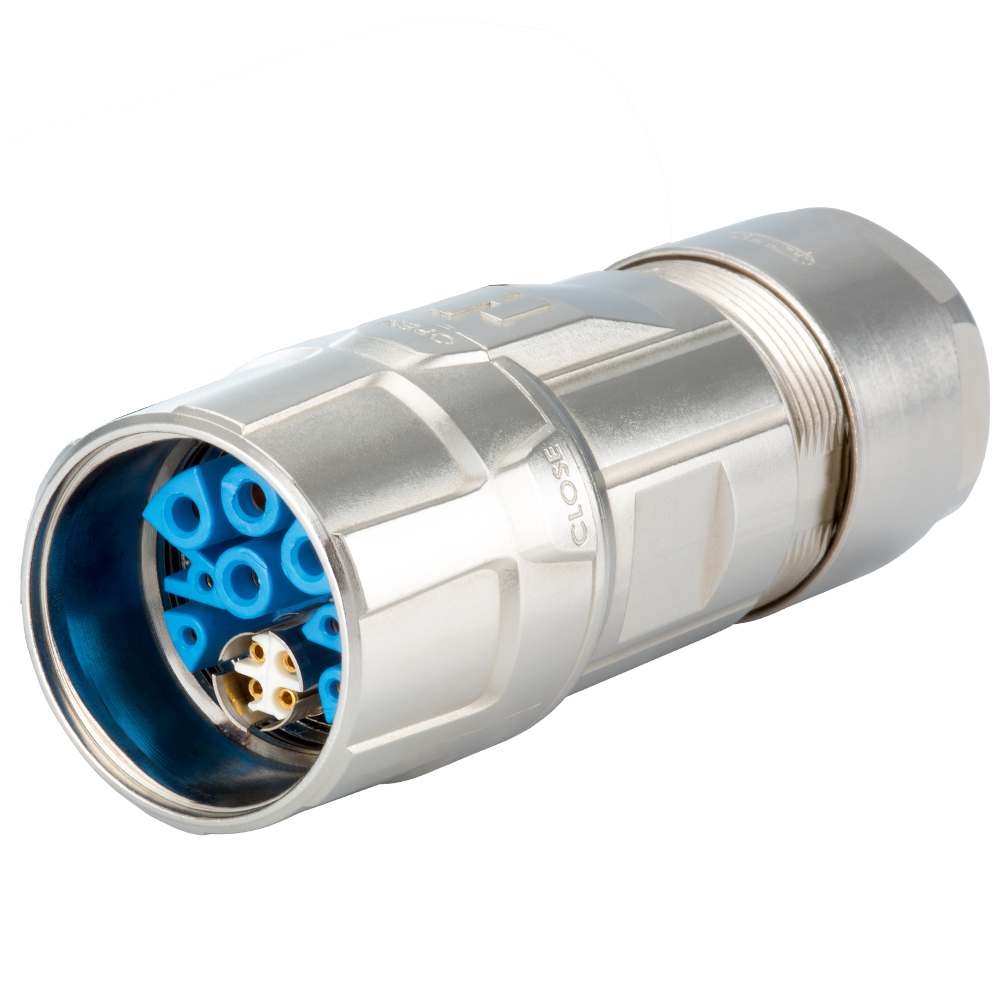

M23 Hybrid Straight Connector
Cable Range: .43" - .67" (11 - 17 mm)
Hummel: Straight Connector, Female Thread, M23 TWILOCK
Hummel #: 7.556.600.000
Inserts & Contacts sold separately.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Assembly Instructions-
Protection: IP 67 / IP 69 K per EN 60 529 (connected)
Operating-Temperature: -40 – 125 °C
Mating cycles: > 1000
for cables mm: 3 – 17
Housing material: Copper-Zinc alloy Die Casting
Housing surface: Nickel plated brass
Inserts: PA 6PBT UL-94 V0
Contact material: Copper-Zinc alloy
Contact surface: Nickel plated, Gold plated (0,25µm) Nickel
characteristic of connection: Crimp dip-solder (PCB)
Seals / O-Rings: Buna-N standard Viton (FPM) INSERTS
Part Number Image Add to Quote Number of Poles Required Contacts Electrical Data S7.084.944.101
Insert 12 Pole 4+4+3+PE S7.084.944.102
12 pole 4+4+3+PE CONTACTS
Part Number Image Add to Quote Type of Contact Crimp Range S7.010.941.001
Crimp Pin 1 mm Machined 0.14 - 1 mm2 AWG 26 - AWG 17 S7.010.941.002
Crimp Socket 1 mm Machined 0.14 - 1 mm2 AWG 26 - AWG 17 S7.010.942.001
Crimp pin 2mm, machined 0.75 - 2.5 mm2 AWG 18 - AWG 14 S7.010.942.002
Crimp Socket 2 mm Machined 0.75 - 2.5 mm2 AWG 18 - AWG 14 S7.010.942.011
Crimp Pin 2 mm Machined 2.5 - 4 mm2 AWG 14 - AWG 12 S7.010.942.012
Crimp Socket 2 mm Machined 2.5 mm2- 4.0 mm2AWG 14 - AWG 12 S7.010.980.602
Crimp Socket 0.6 mm Machined 0.08 mm2- 0.34 mm2 S7.010.980.641
Crimp Pin 0.6 mm Machined 0.08 mm2- 0.34 mm2
