Features

• Quick connecting style
• High protection rate
• Easy connection/disconnection even under tight space conditions
• This unique connector features a panel-mounted Dual Function Connector suitable for threaded and push-pull (quick disconnect) connection
• Initially the connector can be specified with the more economical threaded connector and later converted to the more user-friendly push-pull style

These Circular Connectors feature Quick Connect with Patented Polygon Lock, easy handling and exceptional functionality. Multi-functional TWILOCK Connectors are ideal with TWILOCK and Screw Connection.

TWILOCK has clearly defined Positioning and can be locked with slight rotation from OPEN to CLOSE. A special feature allows use of TWILOCK and screw connection. HUMMEL TWILOCK Connectors guarantee a quick connecting high cycle rate, high protection rate and easy connection/disconnection even under tight space conditions.

INSERTS

Part Number	Image	Add to Quote	Number of Poles	Required Contacts	Electrical Data
S7.084.909.101		Add to Quote This product is already in your quote request list. View Quote Request	Insert 9-Pole	5 x 1 mm + 4 x 2 mm	Contact Ø signal 1 mm Contact Ø performance 2mm Signal connection cross section 0.14 – 1.5 mm² Connection cross section power 0.75 – 4 mm² Rated current signal 8 A Rated current power 28 A Rated voltage at pollution degree 3 performance 600V~ Test voltage signal 2500V~ Test voltage performance 4000V~ Insulation resistance signal > 10^13 Ω max. contact resistance signal 3 mOhm max. contact resistance power 3 mOhm
S7.084.909.102		Add to Quote This product is already in your quote request list. View Quote Request	Insert 9-Pole	Insert - Contacts 5 + 4	Contact Ø signal 1 mm Contact Ø performance 2mm Signal connection cross section 0.14 – 1.5 mm² Connection cross section power 0.75 – 4 mm² Rated current signal 8 A Rated current power 28 A Rated voltage at pollution degree 3 performance 600V~ Test voltage signal 2500V~ Test voltage performance 4000V~ Insulation resistance signal > 10^13 Ω max. contact resistance signal 3 mOhm max. contact resistance power 3 mOhm
S7.084.910.101		Add to Quote This product is already in your quote request list. View Quote Request	Insert 10-Pole	10 x 1 mm	Number of Positions: 10 Number of Contacts: 10 Contact-Ø (mm): 1 Nominal Current1) [A]: 10 Nominal Voltage2) [V~] degree of protection 33): 160 Test Voltage (Breakdown Voltage) 4) [V~]: 2500 Insulation Resistance [MΩ]: > 1013 Max. Contact Resistance [mΩ]: 3
S7.084.910.102		Add to Quote This product is already in your quote request list. View Quote Request	Insert 10-Pole	10 x 1 mm
S7.084.942.101		Add to Quote This product is already in your quote request list. View Quote Request	Insert 10 Pole	2+4+3+PE
S7.084.942.102		Add to Quote This product is already in your quote request list. View Quote Request	Insert 10 Pole	2+4+3+PE

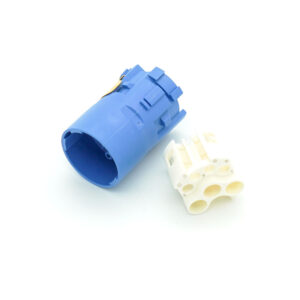

S7.084.943.121		Add to Quote This product is already in your quote request list. View Quote Request	Insert 4+3+PE

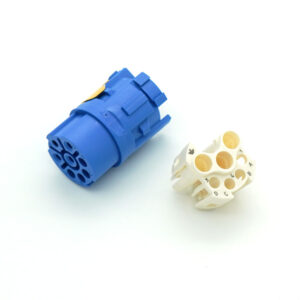

S7.084.943.122		Add to Quote This product is already in your quote request list. View Quote Request	Insert 4+3+PE
S7.084.944.101		Add to Quote This product is already in your quote request list. View Quote Request	Insert 12 Pole	4+4+3+PE
S7.084.944.102		Add to Quote This product is already in your quote request list. View Quote Request	12 pole	4+4+3+PE
S7.084.946.101		Add to Quote This product is already in your quote request list. View Quote Request	Insert 6+4-3-PE
S7.084.946.101		Add to Quote This product is already in your quote request list. View Quote Request	Insert 14 Pole	6+4+3+PE
S7.084.946.102		Add to Quote This product is already in your quote request list. View Quote Request	Insert 14 Pole	6+4+3+PE

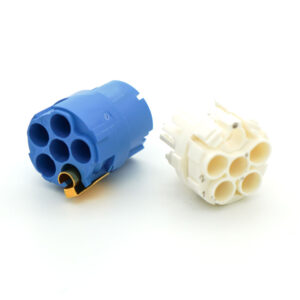

S7.084.951.122		Add to Quote This product is already in your quote request list. View Quote Request	Insert 5+PE
S7.084.953.101		Add to Quote This product is already in your quote request list. View Quote Request	Insert 5 + 3 + PE	5 x 1 mm + 3 x 2 mm + PE	Contact Ø signal 2mm Contact Ø performance 1 mm Signal connection cross section 0.75 – 4 mm² Connection cross section power 0.75 – 4 mm² Rated current signal 8 A Rated current power 28 A Rated voltage at pollution level 3 signal 160V~ Rated voltage at pollution degree 3 performance 600V~ Test voltage signal 2500V~ Test voltage performance 4000V~ Insulation resistance signal > 10^13 Ω Insu lation resistance performance > 10^13 Ω max. contact resistance signal 3 mOhm max. contact resistance power 3 mOhm
S7.084.953.102		Add to Quote This product is already in your quote request list. View Quote Request	Insert 5 + 3 + PE	5 x 1 mm + 3 x 2 mm + PE

CONTACTS

Part Number	Image	Add to Quote	Type of Contact	Crimp Range
S7.010.941.001		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 1 mm Machined	0.14 - 1 mm2 AWG 26 - AWG 17
S7.010.941.002		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 1 mm Machined	0.14 - 1 mm2 AWG 26 - AWG 17
S7.010.941.021		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 1 mm Machined	0.75 - 1.5 mm2 AWG 18 - AWG 16
S7.010.941.022		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 1 mm Machined	0.75 - 1.5 mm2 AWG 18 - AWG 16
S7.010.942.001		Add to Quote This product is already in your quote request list. View Quote Request	Crimp pin 2mm, machined	0.75 - 2.5 mm2 AWG 18 - AWG 14
S7.010.942.002		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 2 mm Machined	0.75 - 2.5 mm2 AWG 18 - AWG 14
S7.010.942.011		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Pin 2 mm Machined	2.5 - 4 mm2 AWG 14 - AWG 12
S7.010.942.012		Add to Quote This product is already in your quote request list. View Quote Request	Crimp Socket 2 mm Machined	2.5 mm2- 4.0 mm2AWG 14 - AWG 12

APPROVALS

• CSA approval CSA (Canadian Standard Association)
• UR (Recognized Underwriters Laboratories)
• VDE approval VDE (Association of German Electrical Engineers)
