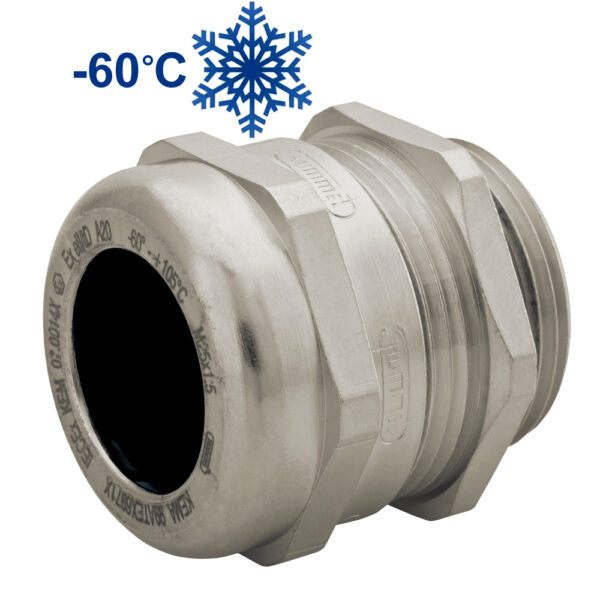

Ex-e 3/8″ NPT Nickel Plated Brass EMI / RFI Braided Nylon Spline Reduced Dome Cable Gland | Cord Grip | Strain Relief CC09NR-EX

Ex-e 3/8" NPT Nickel Plated Brass EMI / RFI Braided Nylon Spline Reduced Dome Cable Gland | Cord Grip | Strain Relief CC09NR-EX
3D CAD VIEWER
Sealcon #: CC09NR-EX
Cable Range: 0.08" - 0.24" (2 to 6 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel #: 1.646.3800.71

Locking Nut Sold Separately

Add to Quote
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A)0.68" (17.2 mm)
Body Length (B)0.83" (21 mm)
Thread Length (D)0.59" (15 mm)
Wrench Flat (F1)0.67" (17 mm)
Wrench Flat (F)0.75" (19 mm)
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page
  • Pressure Rating
    150 PSIG (10 BAR) Type NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K
    Materials
    • Fittings: Nickel Plated Brass
    • Optional ORing: Buna-N, Silicone
    • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
    Operating Temperature
    -20C° to 95C° (-4°F to 203°F)

    Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant. UL F1 UV Stable Rating for outdoor applications (Black Nylon Version Only)
