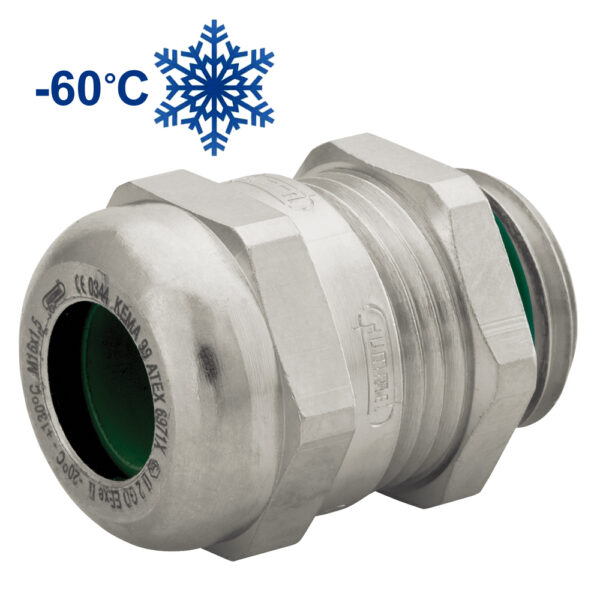

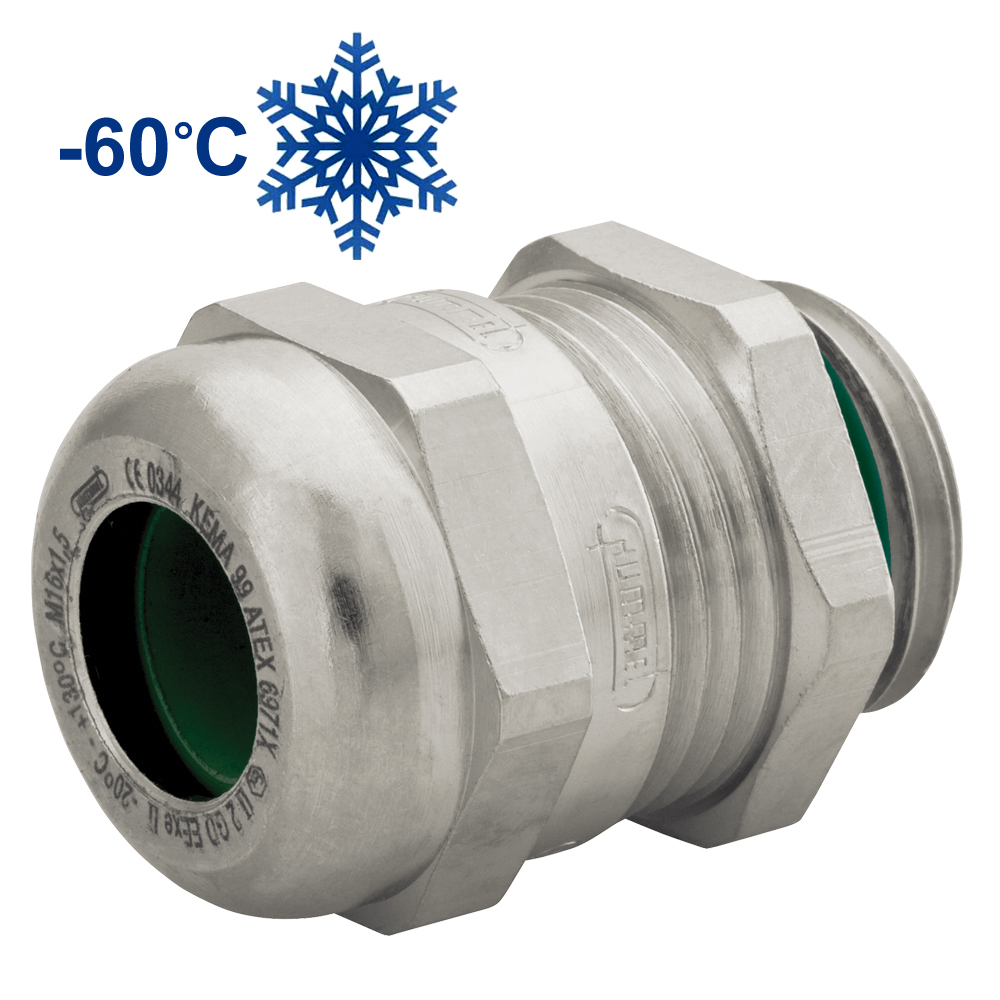

Ex-e M32 x 1.5 303 Stainless Steel Low Temp Reduced Dome Cable Gland | Cord Grip | Strain Relief CC32MR-SX

Sealcon #: CC32MR-SX
Cable Range: 0.51" - 0.79" (13 to 20 mm)
Color: stainless
Material: 303 Stainless Steel
Hummel: HSK-INOX
Hummel #: 1.642.3200.51
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A)1.26" (32 mm)
Body Length (B)1.22" (31 mm)
Thread Length (D)0.31" (8 mm)
Wrench Flat (F1)1.61" (41 mm)
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page
  • Features

    • Liquid Tight – Submersible to 300 ft. – NEMA 4x & 6 (IP68 / IP 69 K)
    • Highest Pressure Rating – Patented form seal guarantees 150 psig
      (10 bar)
    • Flame protected – V0 Rated according to UL 94Halogen- and Phosphorous free materials
    • Safety – Ratchet to prevent Dome from coming loose under vibration
    • Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
    • Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
    • Durable – Rugged Construction
    • Environmentally compliant – RoHS & Deca BDE

    These Stainless Steel Strain Relief Fittings with M32 x 1.5 Thread have many applications, where the environment dictates a corrosion proof solution. Typical applications include: Off-Shore rigs, ships, chemical plants, food processing, wherever a rugged liquid tight strain relief fitting is required!

    This Fitting will provide your application with a product made of exceptional quality.



  • Pressure Rating
    150 PSIG (10 BAR) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K
    Materials
    • Fittings: 303 Stainless Steel
    • Form Seal: Buna-N
    • Optional ORing: FPM or Silicone
    Operating Temperature
    -60C° to 95C° (-76°F to 203°F)

    *CE and CSA Apply to Standard Fitting (ONLY)

    *Sizes 3/8” NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Nylon and Nickel Plated Brass have UR (ONLY)
