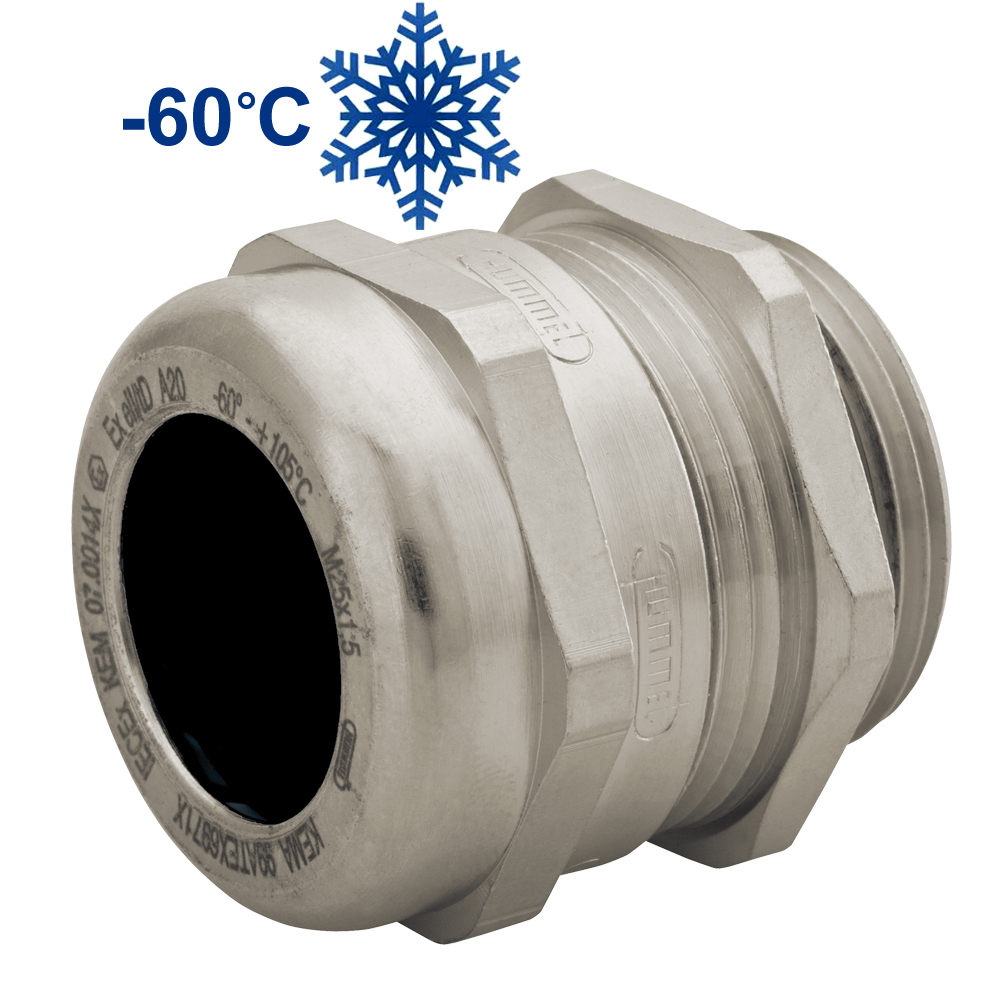

Ex-e PG 36 Nickel Plated Brass EMI / RFI Braided Nylon Spline Standard Dome Cable Gland | Cord Grip | Strain Relief CC36AR-EX

Sealcon #: CC36AR-EX
Cable Range: 0.79" - 1.02" (20 to 26 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-M-EMC-Ex
Hummel #: 1.616.3600.15
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A)1.85" (47 mm)
Body Length (B)1.38" (35 mm)
Thread Length (D)0.31" (8 mm)
Wrench Flat (F1)1.97" (50 mm)
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page
  • Features

    • Liquid Tight – Submersible to 300 ft. – Type NEMA 4x & 6 (IP68 / IP 69 K)
    • Highest Pressure Rating – Patented form seal guarantees 150 psig
      (10 bar)
    • Flame protected – V0 Rated according to UL 94
    • Halogen- and Phosphorous free materials
    • Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
    • Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
    • Durable – Rugged Construction
    • Environmentally compliant – RoHS & Deca BDE

    This Nickel Plated Brass Strain Relief with PG 7 / 1/4″ NPT Thread will provide your application with a product made of exceptional quality.

    Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.



  • Pressure Rating
    150 PSIG (10 BAR) Type NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K
    Materials
    • Fittings: Nickel Plated Brass
    • Optional ORing: Buna-N, Silicone
    • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
    Operating Temperature
    -20C° to 95C° (-4°F to 203°F)

    Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant. UL F1 UV Stable Rating for outdoor applications (Black Nylon Version Only)
