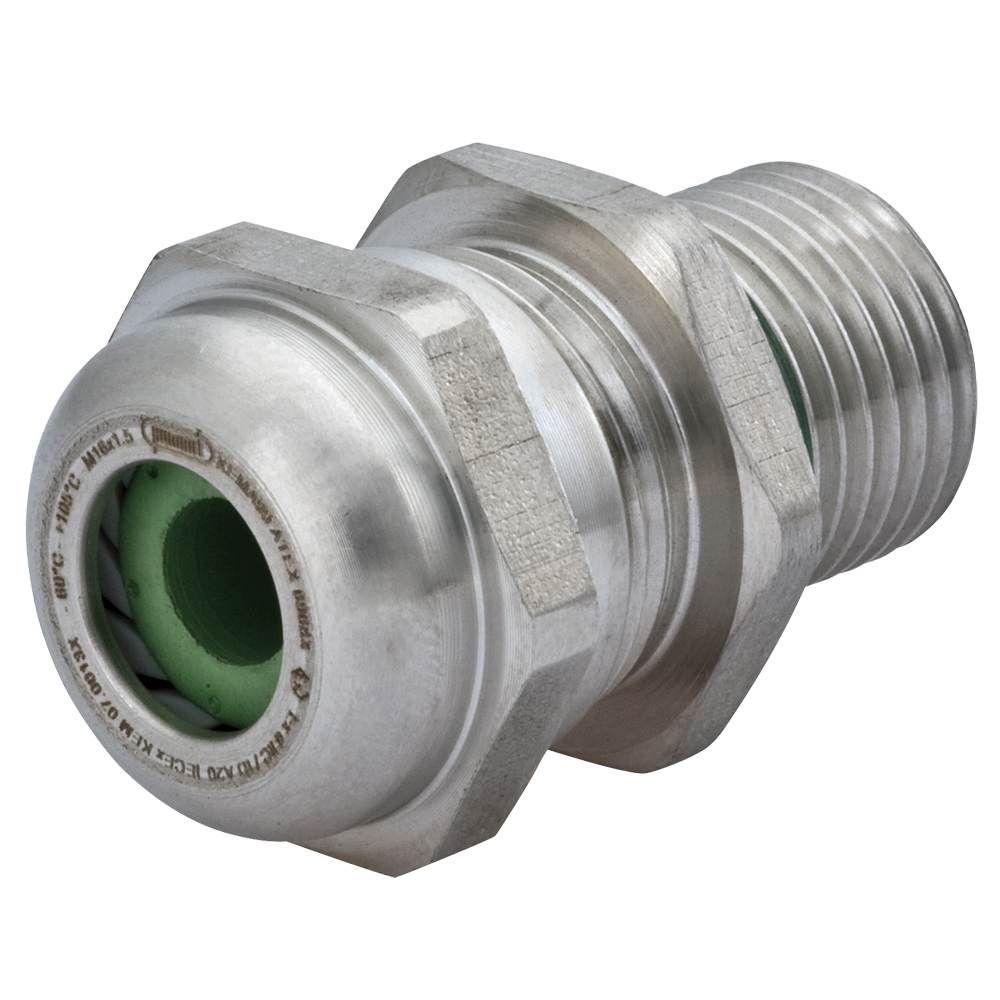

Ex-d 3/8″ NPT 316L Stainless Steel PVDF Spline FKM Insert Reduced Dome Cable Gland | Cord Grip | Strain Relief CD09NR-6VX-D

Ex-d 3/8" NPT 316L Stainless Steel PVDF Spline FKM Insert Reduced Dome Cable Gland | Cord Grip | Strain Relief CD09NR-6VX-D
3D CAD VIEWER
Sealcon #: CD09NR-6VX-D
Cable Range: 0.12" - 0.28" (3 to 7 mm)
Color: Stainless
Material: Stainless Steel
Hummel: HSK-INOX-PVDF-Ex-d
Hummel #: 1.633.3800.71
Add to Quote
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A)0.68" (17.2 mm)
Body Length (B)0.87" (22 mm)
Thread Length (D)0.63" (16 mm)
Wrench Flat (F1)0.79" (20 mm)
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page
