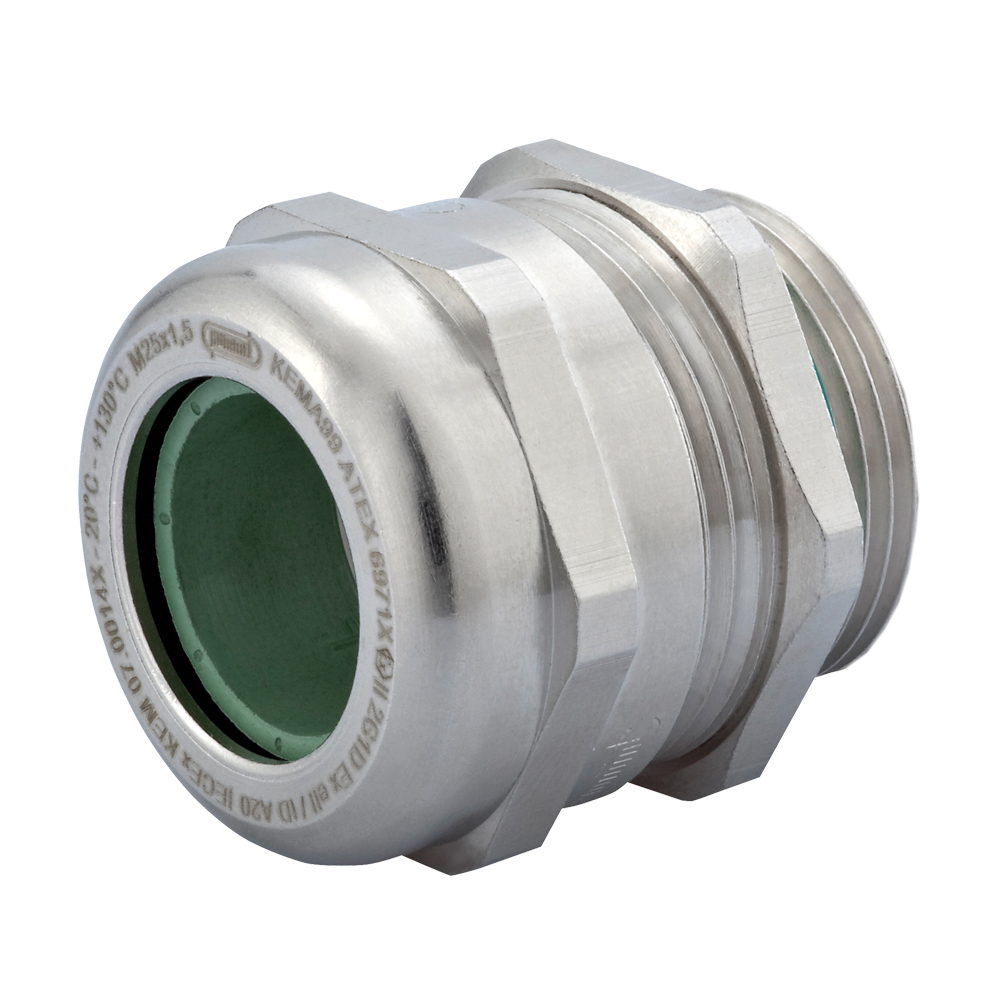

Ex-e PG 13 Nickel Plated Brass EMI / RFI Braided Extreme Temp PVDF Spline FKM Insert Reduced Dome Cable Gland | Cord Grip | Strain Relief CD13AR-EX-V

Sealcon #: CD13AR-EX-V
Cable Range: 0.2" - 0.35" (5 to 9 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-M-EMV-Ex
Hummel #: 1.666.1300.15

Locking Nut Sold Separately. with Viton® FKM Insert and PVDF Spline.

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A)0.8" (20.3 mm)
Body Length (B)0.94" (24 mm)
Thread Length (D)0.26" (6.5 mm)
Wrench Flat (F1)0.87" (22 mm)
Wrench Flat (F)0.87" (22 mm)
Suggested Clearance Hole for Non-Threaded Mounting
