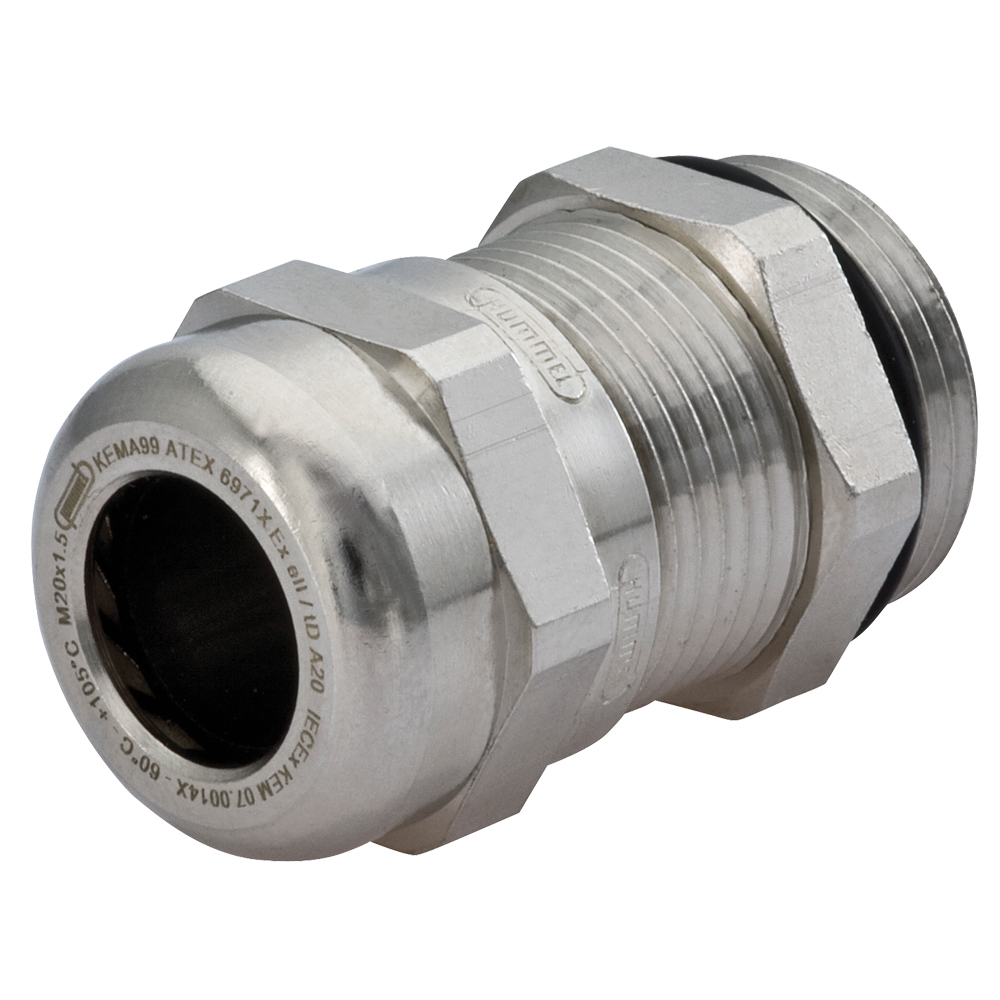

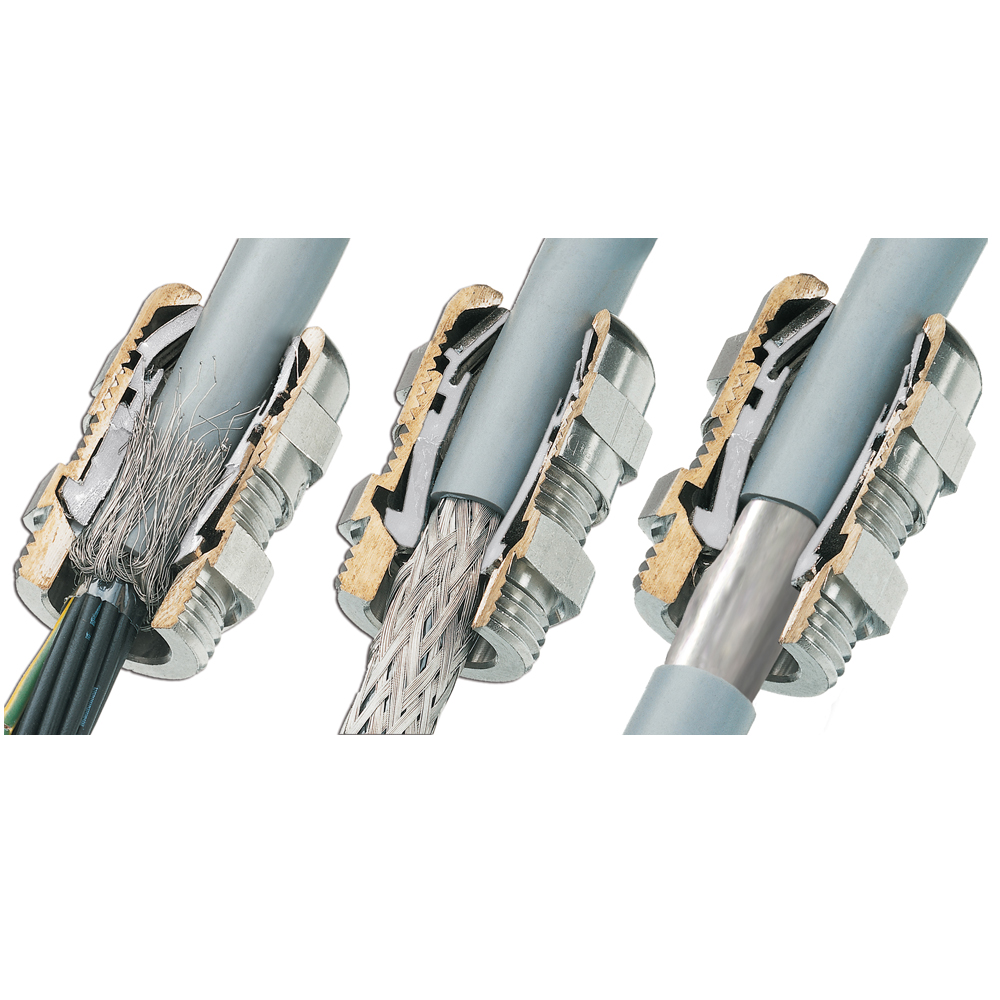

Ex-e PG 16 Nickel Plated Brass EMI/RFI Feed Through Braided Shield Dome Cable Gland | Cord Grip | Strain Relief CD16AA-FX

Sealcon #: CD16AA-FX

Cable Range: 0.39" - 0.55" (10 to 14 mm)

Material: Nickel Plated Brass

Hummel: HSK-M-EMV-D-Ex

Hummel #: 1.636.1600.01

Locking Nut Separately

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

Suggested Clearance Hole for Non-Threaded Mounting

PDF DOWNLOADS

Features
Cable glands of the HSK-EMC-Ex- series have been designed for standard applications in hazardous locations type “e” according to EN 60079-0 and 60079-7
- Machine, apparatus and plant equipment
- Measuring control and feedback systems
- Control cabinets
- Railroad cars and vehicles
- Industrial installations
- Marine
- Off-shore
and in all installations where excellent performance, fire resistance and no twisting or torquing of the cable are critical.
Materials
Operating Temperature
-60C° to 95C° (-76°F to 203°F)
APPROVALS
- ATEX - ATmosphere Explosible
- CE approval CE (Certified European Approval)
- IECEx
- PCT Approval

RELATED ACCESSORIES
