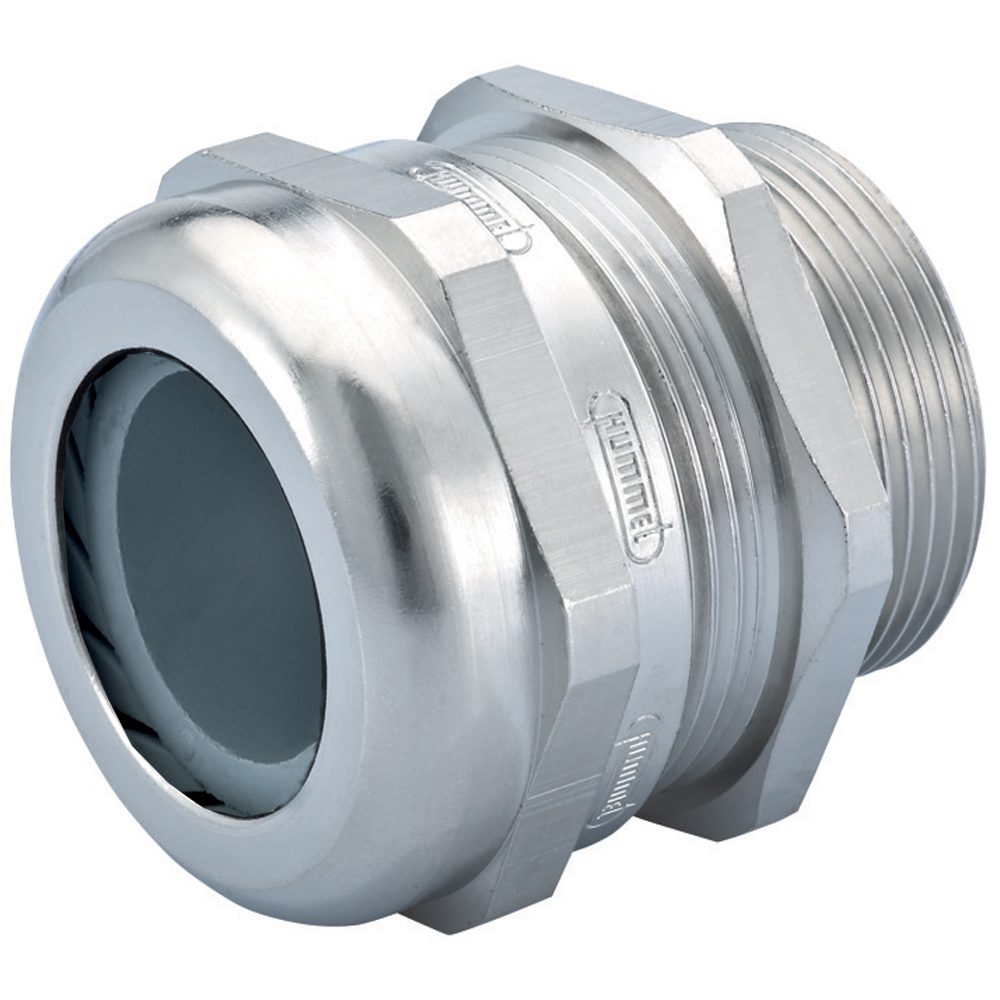

Ex-e M20 x 1.5 Nickel Plated Brass Elongated Thread Reduced Dome Cable Gland | Cord Grip | Strain Relief CD22DR-MX

Sealcon #: CD22DR-MX
Cable Range: 0.28" - 0.47" (7 to 12 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel #: 1.610.2016.31

Locking Nut Sold Separately

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A)0.79" (20 mm)
Body Length (B)0.94" (24 mm)
Thread Length (D)0.39" (10 mm)
Wrench Flat (F1)0.94" (24 mm)
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page
  • Features

    Liquid Tight – Submersible to 300 ft. – NEMA 4x & 6 (IP68 / IP 69 K)
    Highest Pressure Rating – Patented form seal guarantees 150 psig (10 bar)
    Flame protected – V0 Rated according to UL 94
    Halogen- and Phosphorous free materials
    Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
    Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
    Durable – Rugged Construction
    Environmentally compliant – RoHS & Deca BDE

    This Nickel Plated Brass Strain Relief with Elongated Metric M20 x 1.5 Thread will provide your application with a product made of exceptional quality.

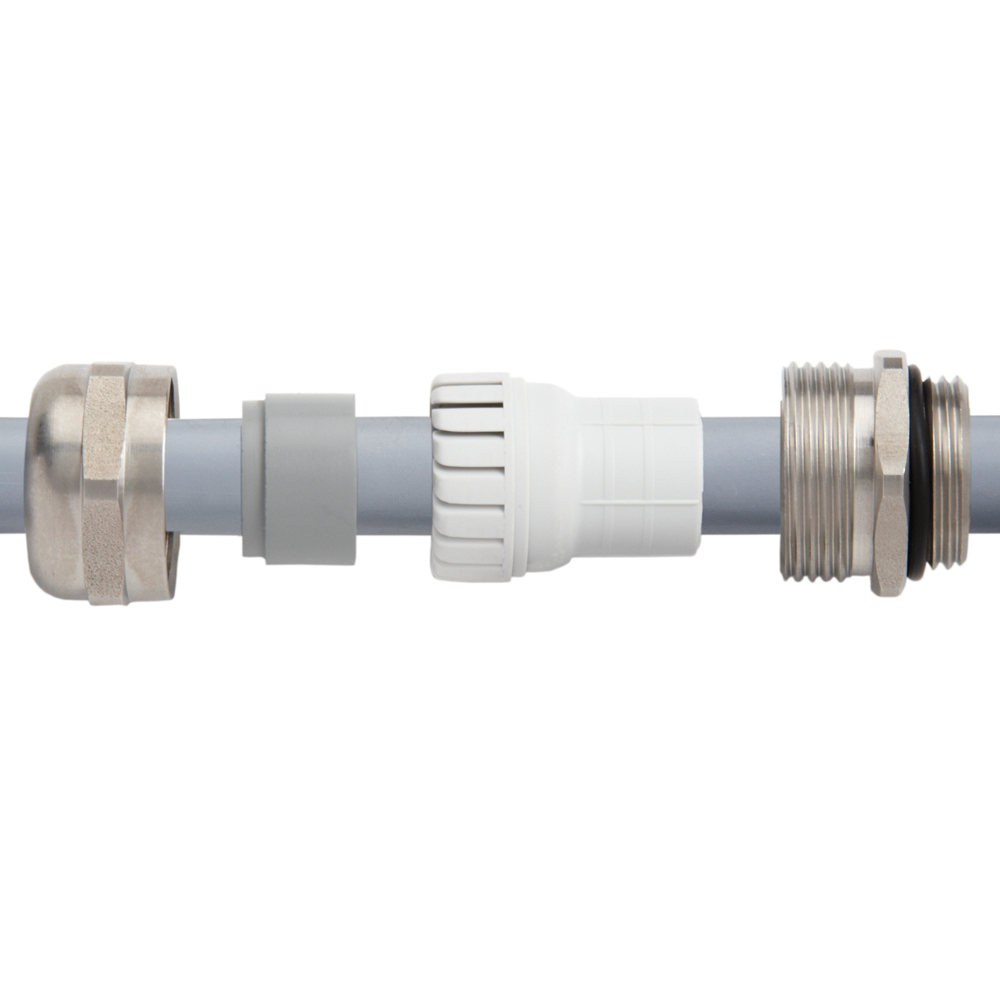

    Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.

    The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.

    Kinking and chafing of the cable is eliminated with use of the Flex Nut.

    This Nickel Plated Brass Strain Relief with elongated M20 x 1.5 Thread will provide your application with a product made of exceptional quality.

    Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.



  • Pressure Rating
    150 PSIG (10 BAR) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K
    Materials
    • Fittings: Nickel Plated Brass
    • Optional ORing: Buna-N, FPM or Silicone
    • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
    Pressure Rating: 150 psig (10 bar) NEMA 4x & 6 (Submersible) - IP 68 / IP 69 K Materials: Fittings: Nickel Plated Brass Spring (Flex Extension): Stainless Steel Form Seal: Buna-N Splined Bushing: Nylon 6/6 O-Ring: Buna-N (Viton® or Silicone optional) Optional Seal Ring: Polyethylene or Fiber-reinforced Plastic Operating Temperature: - 40°C to 100°C (- 40°F to 212°F) Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant. *Sizes 3/8”NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Nylon and Nickel Plated Brass have UR (ONLY)
