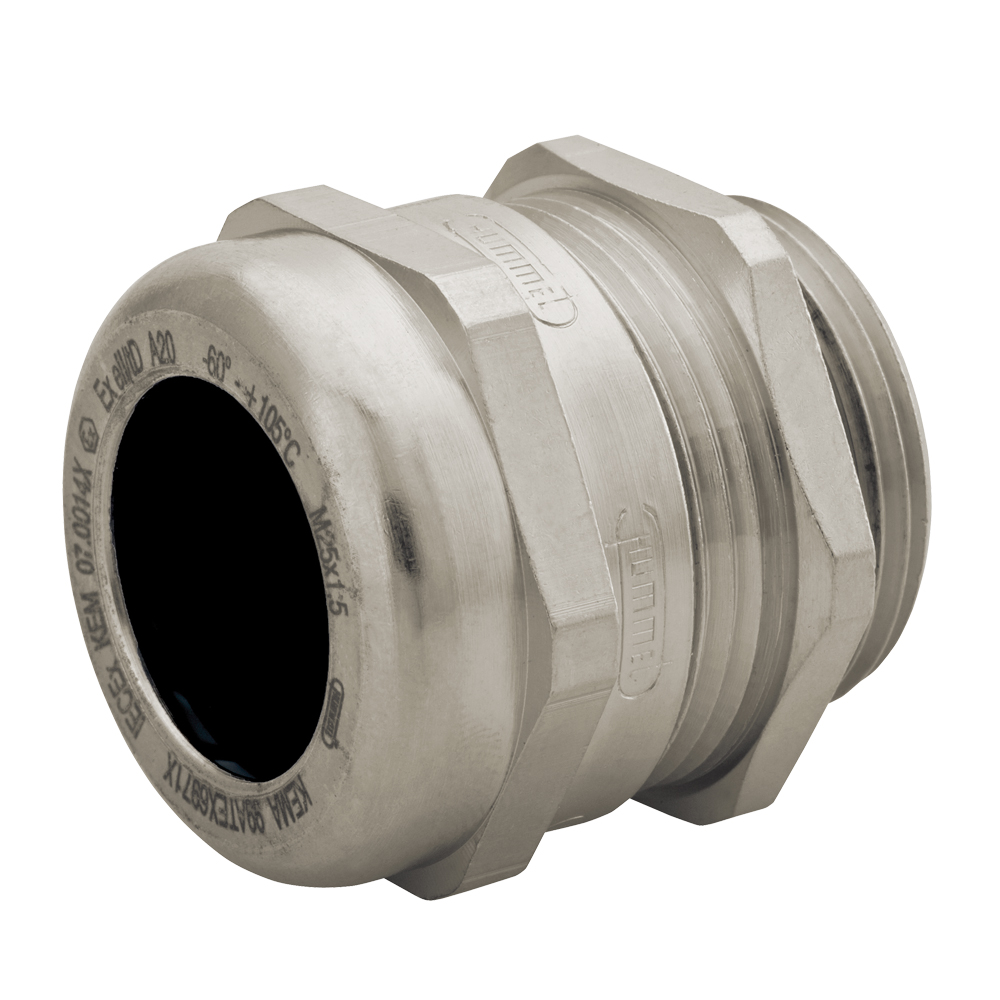

Ex-e PG 29 Nickel Plated Brass EMI / RFI Braided Feed-through Standard Dome Cable Gland | Cord Grip | Strain Relief CD29AA-EX

Sealcon #: CD29AA-EX
Cable Range: 0.71" - 0.98" (18 to 25 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel: HSK-M-EMV-Ex
Hummel #: 1.616.2900.01

Locking Nut Sold Separately

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A)1.47" (37.3 mm)
Body Length (B)1.14" (29 mm)
Thread Length (D)0.47" (12 mm)
Wrench Flat (F1)1.57" (40 mm)
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page
  • Features

    • Liquid Tight – Submersible to 300 ft. – Type Nema 4x & 6 (IP68 / IP 69 K)
    • Highest Pressure Rating – Patented form seal guarantees 150 psig (10 bar)
    • Flame protected – V0 Rated according to UL 94
    • Halogen- and Phosphorous free materials
    • Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
    • Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
    • Durable – Rugged Construction
    • Environmentally compliant – RoHS & Deca BDE

    This EMI/RFI Proof Nickel Plated Brass Strain Relief with PG 29 Thread will provide your application with a product made of exceptional quality.

    Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.



  • Pressure Rating
    150 PSIG (10 BAR) Type Nema 4x & 6 (Submersible) - IP 68 / IP 69 K
    Materials
    • Fittings: Nickel Plated Brass
    • Form Seal: Buna-N
    • Optional ORing: FPM or Silicone
    • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
    Operating Temperature
    -20C° to 95C° (-4°F to 203°F)
