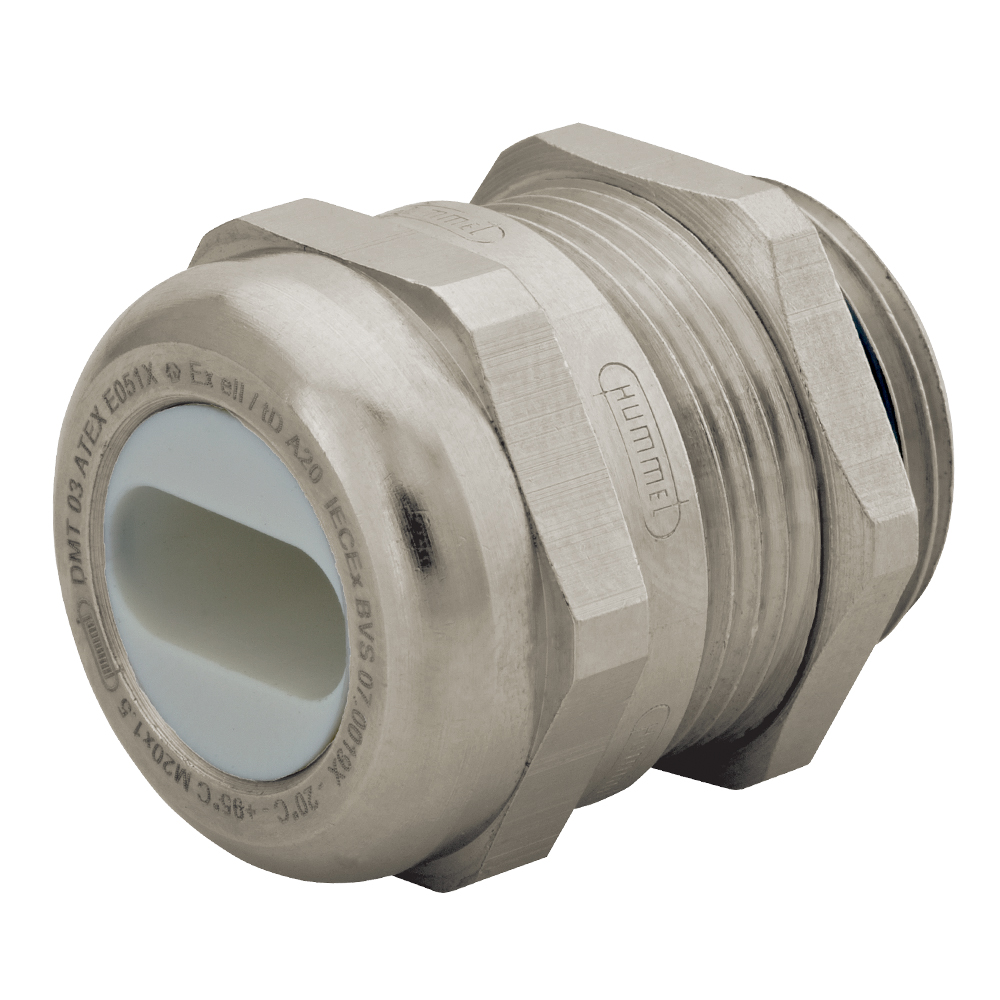

Ex-e M32 x 1.5 Nickel Plated Brass Romex® Flat-Cable Dome Cable Gland | Cord Grip | Strain Relief CD32MS-EB1

Home » Cable Gland Strain Relief » Nickel Plated Brass » Metric Threads » Ex-e Romex Cable Gland » Ex-e M32 x 1.5 Nickel Plated Brass Romex® Flat-Cable Dome Cable Gland | Cord Grip | Strain Relief CD32MS-EB1

Ex-e M32 x 1.5 Nickel Plated Brass Romex® Flat-Cable Dome Cable Gland | Cord Grip | Strain Relief CD32MS-EB1

Sealcon #: CD32MS-EB1

Cable Range: 0.31" - 0.87" (8 to 22 mm)

Color: Nickel

Material: Nickel Plated Brass

Hummel: HSK-M-FLAKA-Ex

Hummel #: 1.689.3200.50

Locking Nut Sold Separately

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012

Hole Diameter (A)	1.26" (32 mm)
Body Length (B)	1.22" (31 mm)
Thread Length (D)	0.31" (8 mm)
Wrench Flat (F1)	1.57" (40 mm)

PDF DOWNLOADS

Materials
Operating Temperature
-20C° to 95C° (-4°F to 203°F)
Pressure Rating:
70 PSIG (5 BAR) Type NEMA 4x & 6 (Submersible) - IP 65 / IP 69 K
Note: We recommend a customer performing his/her own testing if IP 68 wants to be achieved.

* Sizes 3/8″ NPT, M12, M16, PG7, PG9, and PG11 and all Multi-Hole Fittings in Nylon and Nickel Plated Brass have UR (ONLY)
APPROVALS

RELATED ACCESSORIES

Nickel Plated Brass Locking Nut M32 X 1.5 | NM-32-BR
