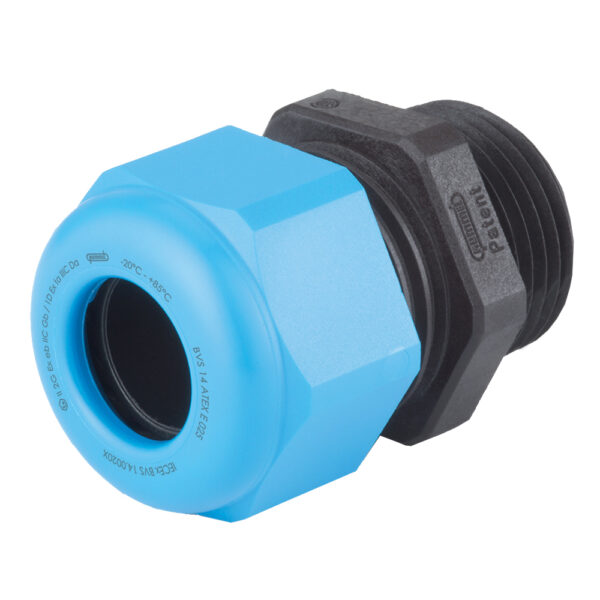

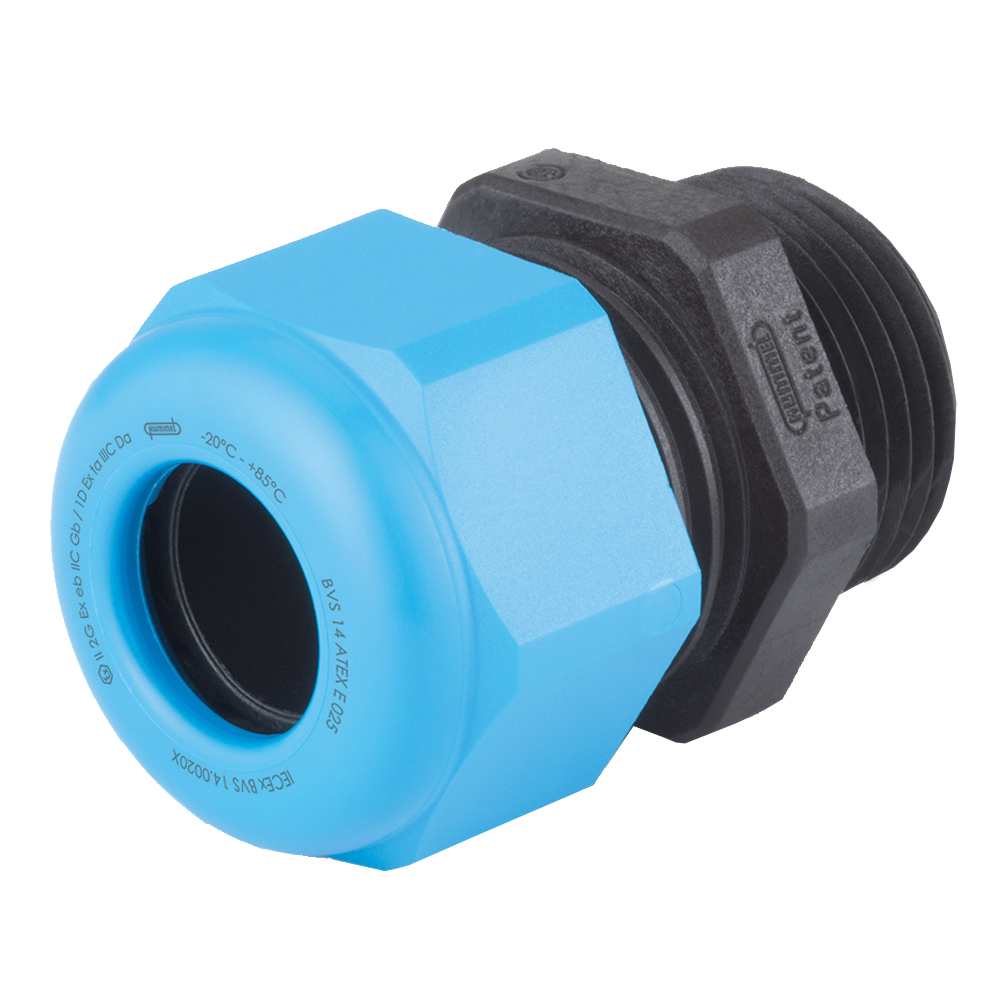

M50 x 1.5 Blue/Black Nylon High Impact / DIV Rated Fiber Reinforced Elongated Thread Standard Cable Gland | Cord Grip | Strain Relief CD50DA-BXI

Sealcon #: CD50DA-BXI
Cable Range: 1.26" - 1.5" (32 to 38 mm)
Color: Blue
Material: Fiber Reinforced Nylon
Hummel: HSK-K-Ex-Active
Hummel #: 1.292.5002.30

Locking Nut Sold Separately

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A)1.97" (50 mm)
Body Length (B)1.93" (49 mm)
Thread Length (D)0.71" (18 mm)
Wrench Flat (F1)2.36" (60 mm)
Suggested Clearance Hole for Non-Threaded Mounting
  • Features

    The HSK-K-Ex-Active has been developed to meet the stringent requirements of EN 60079-0 : 2012. IECEx Certificate of Conformity: IECEx BVS 14.0020X. This non-metallic solution for non-armored cables is designed for applications in electrical equipment and potentially explosive atmospheres.

    • Machine, apparatus and plant equipment

    • Measuring control and feedback systems

    • Potentially Explosive Atmospheres

    • Electrical Equipment

    • Industrial installations

    and in all installations where excellent performance, fire resistance and no twisting or torquing of the cable are critical.

  • Materials
      Operating Temperature
      -20C° to 85C° (-4°F to 185°F)
      Pressure Rating: 150 PSIG (10 BAR) Type Nema 6 - IP 68
      Materials: Fittings: Fibreglass reinforced polyamide V0 according to UL 94 Seal/O-Ring: NBR
      * Sizes: M12 to M63 and NPT 3/8 to NPT 1-1/2 Available Colors: Black
      High Impact Resistance: 7 Joule
      Latest ATEX/IECEx & CSA Standards
      150 PSIG (10 bar) liquid tight rating
      Concentric O-Ring Groove
      UL f1 (746C) UV/Ozone Stable
      RoHS & Deca BDE Compliant
