Sealcon #: CD50MA-RX
Cable Range: 1.26" - 1.5" (32 to 38 mm)
Color: Nickel
Material: Nickel Plated Brass
Hummel #: 1.660.5000.50
Locking Nut Sold Separately. with FKM Insert, FKM O-Ring.

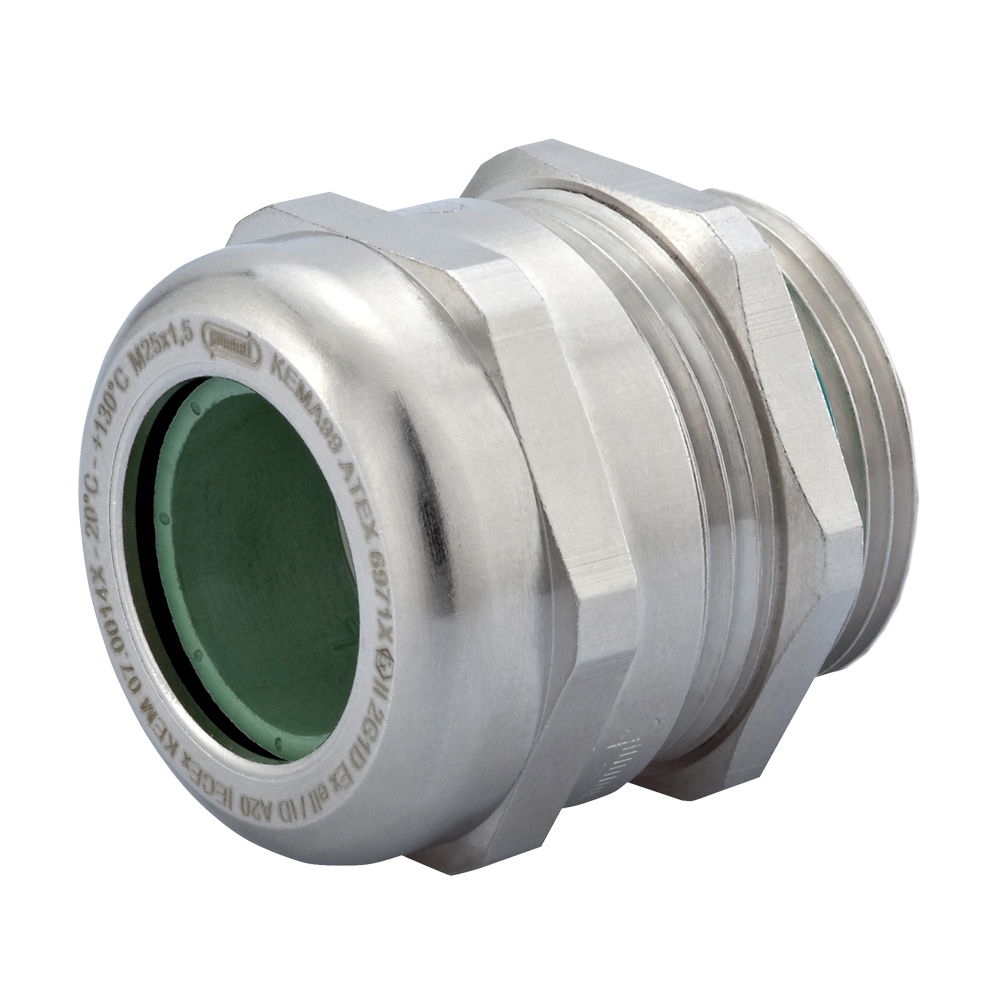

Cable gland made of nickel plated brass for chemical and high temperature applications.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Hole Diameter (A) | 1.97" (50 mm) |
|---|---|
| Body Length (B) | 1.46" (37 mm) |
| Thread Length (D) | 0.35" (9 mm) |
| Wrench Flat (F1) | 2.24" (57 mm) |
Suggested Clearance Hole for Non-Threaded Mounting
PDF DOWNLOADS
Catalog Page-
MaterialsOperating Temperature
-20C° to 130C° (-4°F to 266°F)
