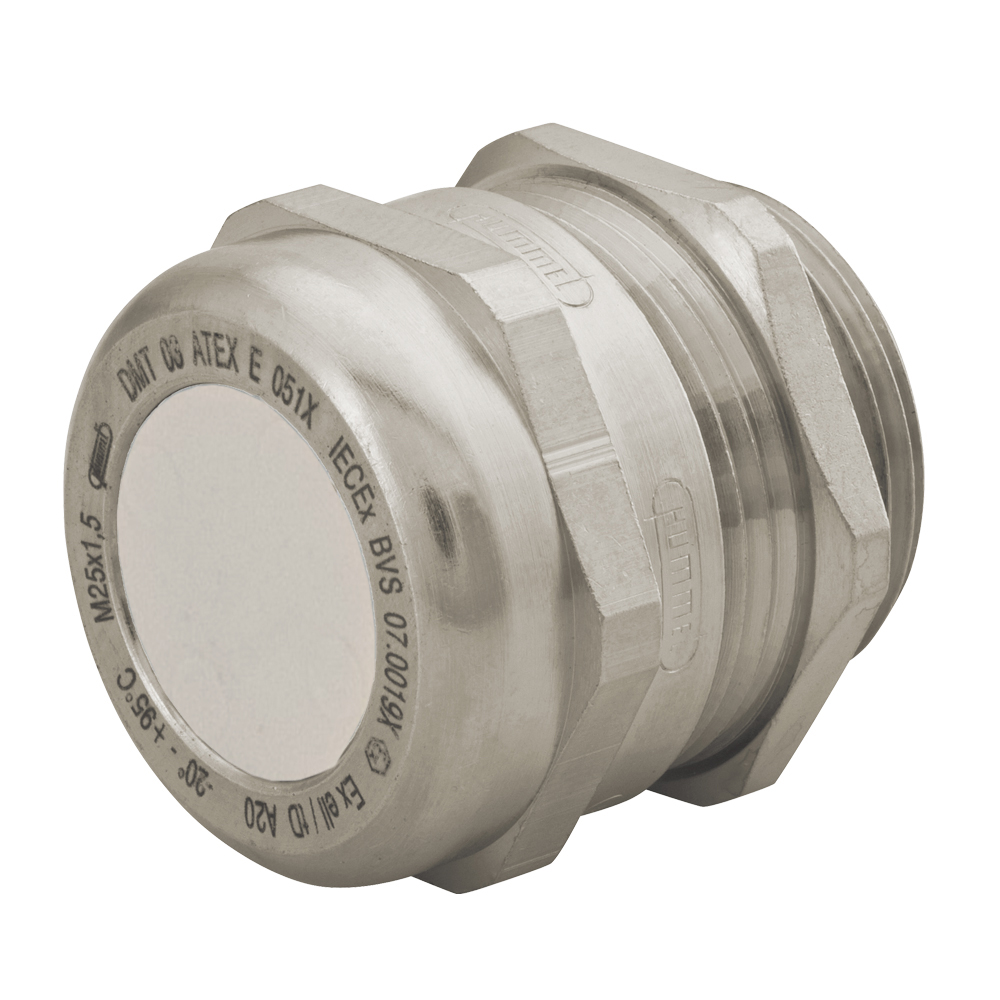

Sealcon #: CD63MP-MX
Color: Nickel
Material: Nickel Plated Brass
Number of Holes: Solid Plug
Diameter of Holes: Solid Plug" (Solid Plug)
Insert Part Number: 1.089.4899.19
Hummel: HSK-M-Multi-Ex
Hummel #: 1.687.6399.50
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
| Body Length (B) | 1.5" (38 mm) |
|---|
PDF DOWNLOADS
Catalog Page-
Features
- Flame protected – V0 Rated according to UL 94
- Halogen- and Phosphorous free materials
- Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
- Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
- Durable – Rugged Construction
- Environmentally compliant – RoHS & Deca BDE
This Nickel Plated Brass Liquid Tight Strain Relief Fitting with Multi-Hole Insert will provide your application with a product made of exceptional quality.
-
Pressure RatingMaterials
IP 65 / IP 68 10 bar possible with ideal fit- Fittings: Nickel Plated Brass
- Form Seal: Elastomer
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
Operating Temperature
-20C° to 95C° (-4°F to 203°F) APPROVALS
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
UR (Recognized Underwriters Laboratories)
German Lloyd
PCT Approval
