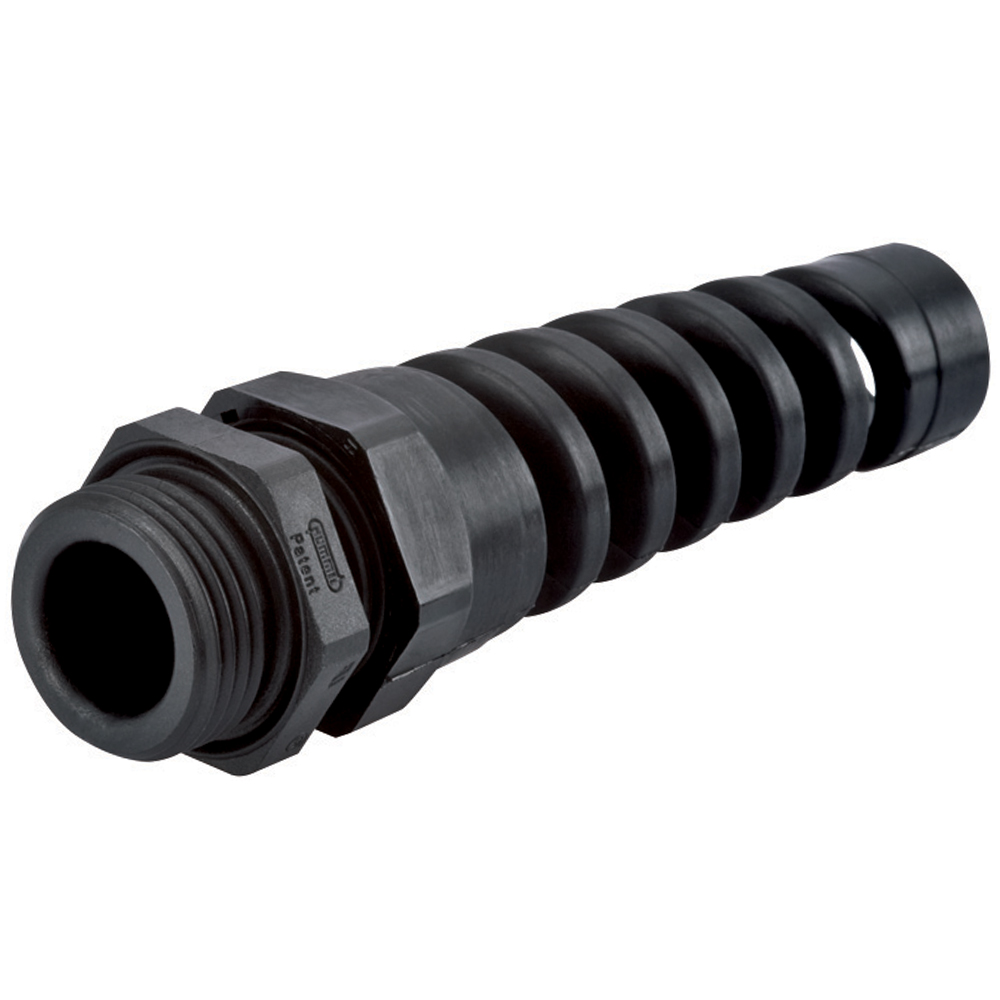

PG 11 Black Nylon Standard Flex Cable Gland | Cord Grip | Strain Relief CF11AA-BK

Sealcon #: CF11AA-BK
Cable Range: 0.2" - 0.39" (5 to 10 mm)
Color: Black
Material: Nylon
Hummel: HSK-K-Flex
Hummel #: 1.293.1101.14

Locking Nut & O-Ring Sold Separately

Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Hole Diameter (A)0.73" (18.5 mm)
Body Length (B)3.07" (78 mm)
Thread Length (D)0.31" (8 mm)
Wrench Flat (F1)0.87" (22 mm)
Suggested Clearance Hole for Non-Threaded Mounting
  • Features

    • Flame protected – V0 Rated according to UL 94
    • Halogen- and Phosphorous free materials
    • Safety – Ratchet to prevent Dome from coming loose under vibration
    • Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
    • Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
    • Durable – Rugged Construction
    • Environmentally compliant – RoHS & Deca BDE

    This Nylon Strain Relief (Cable Gland) with PG 11 Thread will provide your application with a product made of exceptional quality.

    Modularity: The Strain Relief allows you to increase and decrease the cable opening by just swapping out the standard and reduced inserts.

    The self locking ACME thread on the dome and flex top ensures that the overlapping splines apply a concentric seal, thereby preventing the form seal from being pulled out of the fitting & ensuring pull-out protection of your cable without damaging it.

    Kinking and chafing of the cable is eliminated with use of the Flex Nut.

  • Pressure Rating
    IP 68 - 10 bar / IP 69k ( Type Nema 6 - 150 PSIG) with additional O-Ring
    • Fittings: Nylon 6/6
    • Form Seal: Elastomer
    • Optional ORing: Buna-N, FPM or Silicone
    • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
    Operating Temperature
    -40C° to 100C° (-40°F to 212°F)
    Available Colors
    Black (RAL 9005);Gray (RAL 7035);Blue (RAL 5012) - upon request;

    Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant.
