Locking Nut Sold Separately
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Body Length (B) | 0.87" (22 mm) |
---|---|
Thread Length (D) | 0.59" (15 mm) |
Wrench Flat (F1) | 0.75" (19 mm) |
Wrench Flat (F) | 0.87" (22 mm) |

-
Features
Liquid Tight – Submersible to 300 ft. – Type Nema 4x & 6 (IP68 / IP 69 K)
Highest Pressure Rating – Patented form seal guarantees 150 psig (10 bar)
Flame protected – V0 Rated according to UL 94
Halogen- and Phosphorous free materials
Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
Durable – Rugged Construction

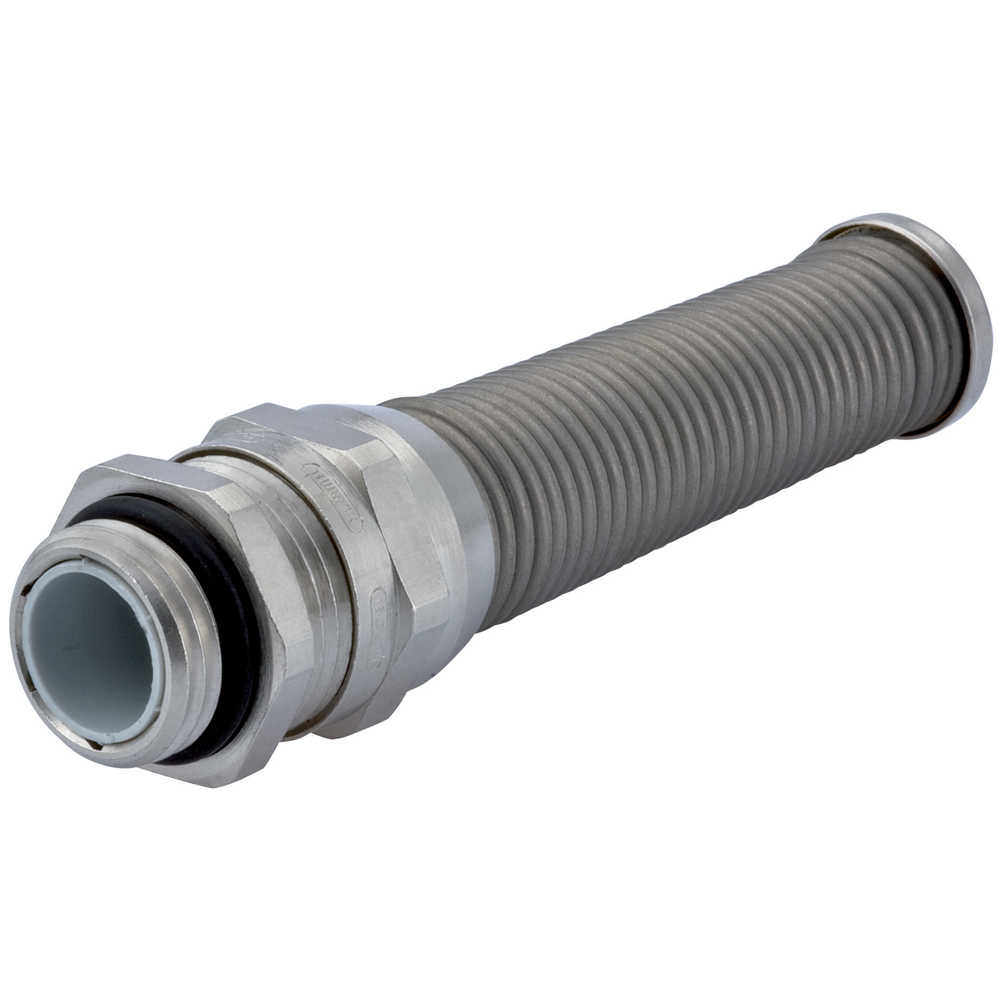

Environmentally compliant – RoHS & Deca BDEThis Nickel Plated Brass Liquid Tight Strain Relief Fitting with Multi-Hole Insert will provide your application with a product made of exceptional quality.
-
Pressure RatingMaterials
IP 65 / IP 68 10 bar possible with ideal fit- Fittings: Nickel Plated Brass
- Form Seal: Elastomer
- Optional ORing: Buna-N, FPM or Silicone
- Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
Operating Temperature
-40C° to 100C° (-40°F to 212°F) APPROVALS
Restriction of Hazardous Substances in Electrical and Electronic Equipment
Deca-Bromo-Diphenyl-Ether Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals
Waste Electrical and Electronic Equipment Directive
CE approval CE (Certified European Approval)
CSA approval CSA (Canadian Standard Association)
UR (Recognized Underwriters Laboratories)
German Lloyd
EAC
UL f1 (746C) V0 UL94 Rated / Approved
