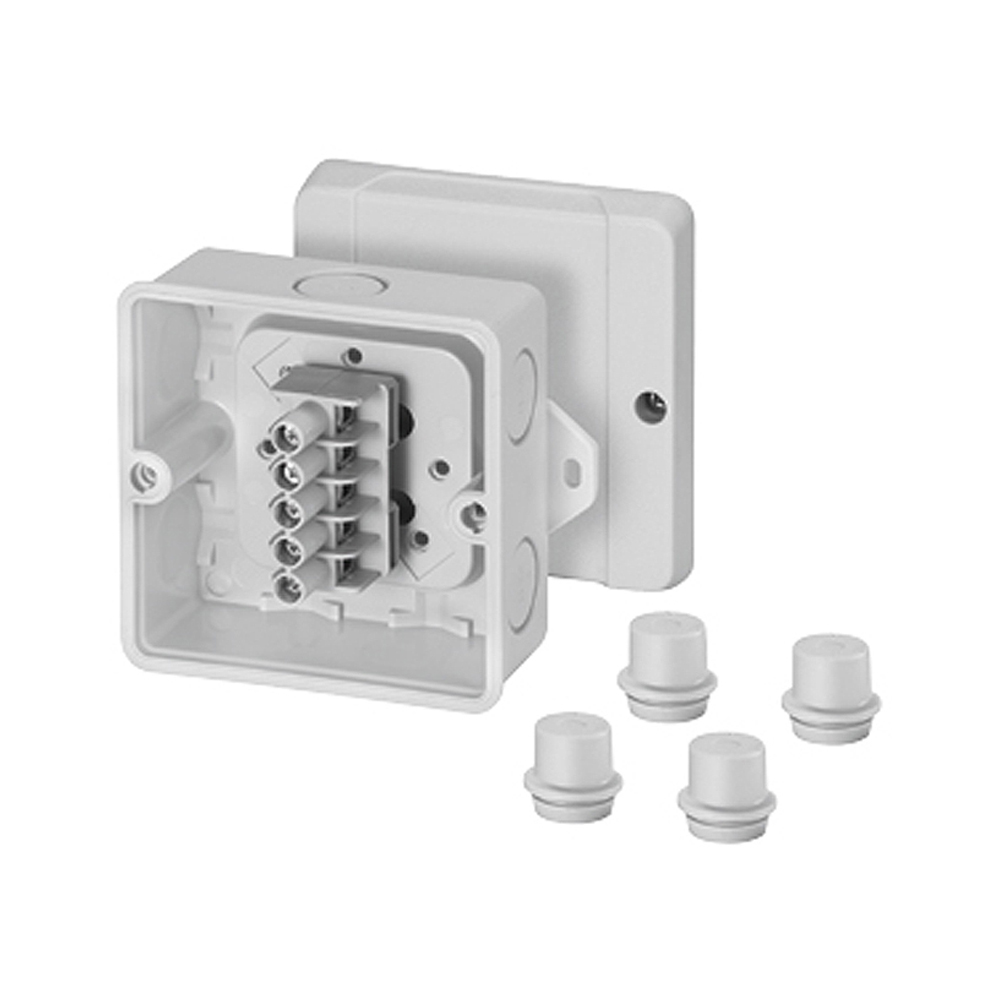

Sealcon #: D9125
Size: D ENYCASE
Material: D 88 x 88 x 53 mm
Hensel #: D 9125
Cover screws and mounting screws included.
1.5-2.5 mm², Cu 3~
With terminals
5-pole per pole 6 x 1.5 mm² sol, 4 x 2.5 mm² sol, 3 x 4 mm² sol
Included cable entry: 4 ESM 20,
Sealing range Ø 6-13 mm
With external fixing
For normal environment and protected outdoor
Discontinued Part, Limited Supply.
Contact Us for Quantity or Possible Alternatives.
Need Technical Assistance?
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
Give our technical sales team a call
(303) 699-1135 | (800) 456-9012
PDF DOWNLOADS
Catalog Page-
Rated insulation voltage Ui = 690 V a.c./d.c.
Tightening torque for terminal 1.2 Nm
Material PS (Polystyrene)
Degree of protection IP 55
Degree of protection IP 65
Width 88 mm
Height 88 mm
Depth 53 mm
Weight 0,135 kg
In accordance with IEC 60670-22ImpactFire Resistance
IK07 (2 Joule)
Glow wire test IEC 60695-2-11: 750 °C
VDE approval VDE (Association of German Electrical Engineers)
